Managing VLANs

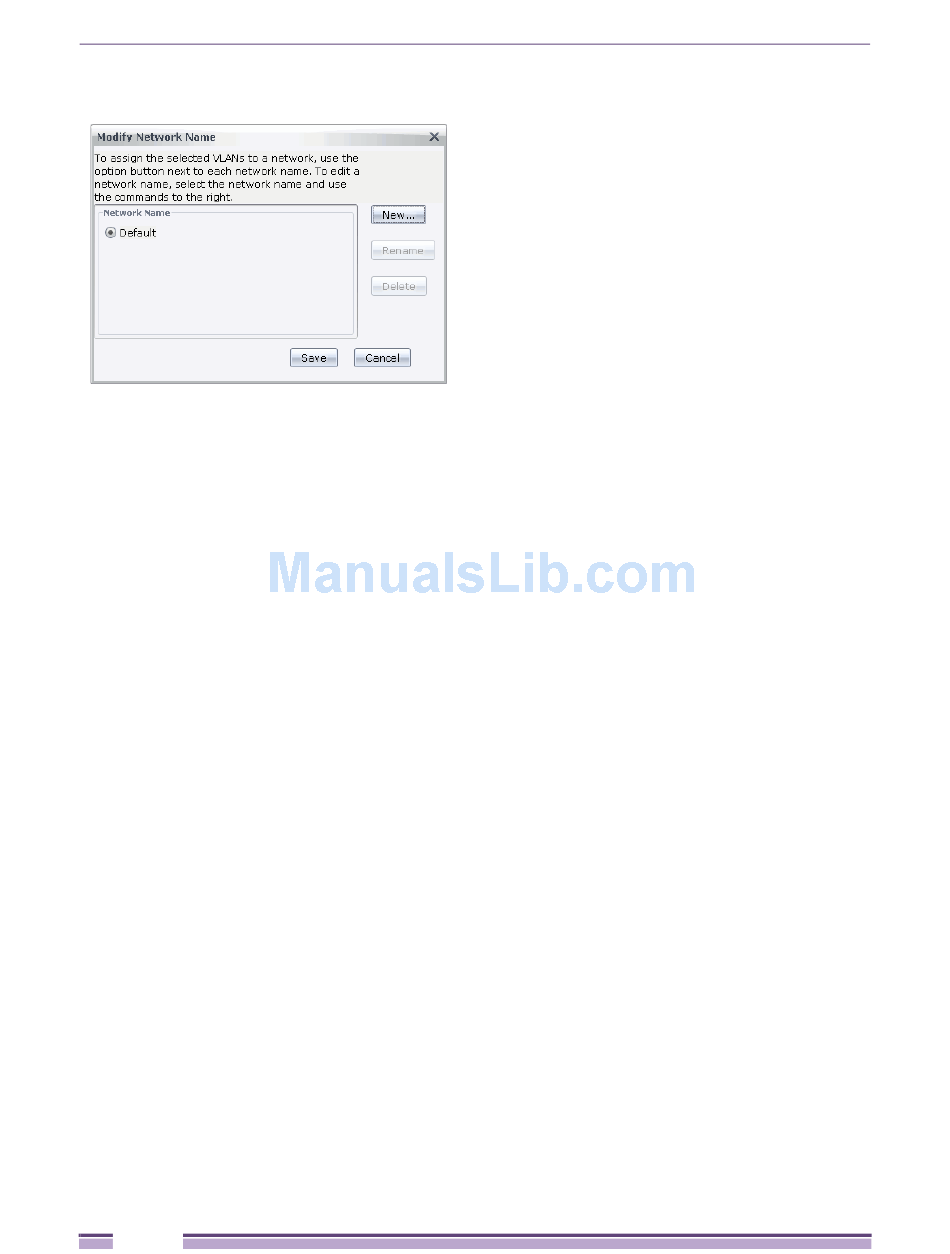

Figure 99: Modify Network Name Window
3 Click New to open the New network name window.
4 Enter the network name and click create.

Assigning VLANs to a Network Name

To assign VLANs to a network name:
1 Under the Network Views folder, select the device group that contains the VLANs you want to
categorize, or select the All group.
2 Do one of the following:
Click the VLANs tab in the table view to display the VLANs in the device group.
●
Click the Devices tab, then click the VLANs tab for the device to display the VLANs configured
●
on the device.
3 In the table, select the VLANs that you want to assign to the network name. Use Ctrl-click or Shift-
click if you want to select multiple entries in the table.
4 From the Tools menu, select VLAN network name. The Modify Network Name window is
displayed, as shown in
5 Click the radio button next to the network name to which you want to assign the VLANs, and click
Save.

Filtering the VLANs Table Based on Network Name

To use the network name to filter the list of VLANs in the VLAN table, do the following:
1 Under the Network Views folder, select a device group or the All group.
2 Click the VLANs tab in the table view to display the VLANs in the device group.
3 Expand the Quick Filter box to display the available quick filters. One of the quick filters is Network,
as shown in Figure 100.
142
Figure 99.
Ridgeline Concepts and Solutions Guide
