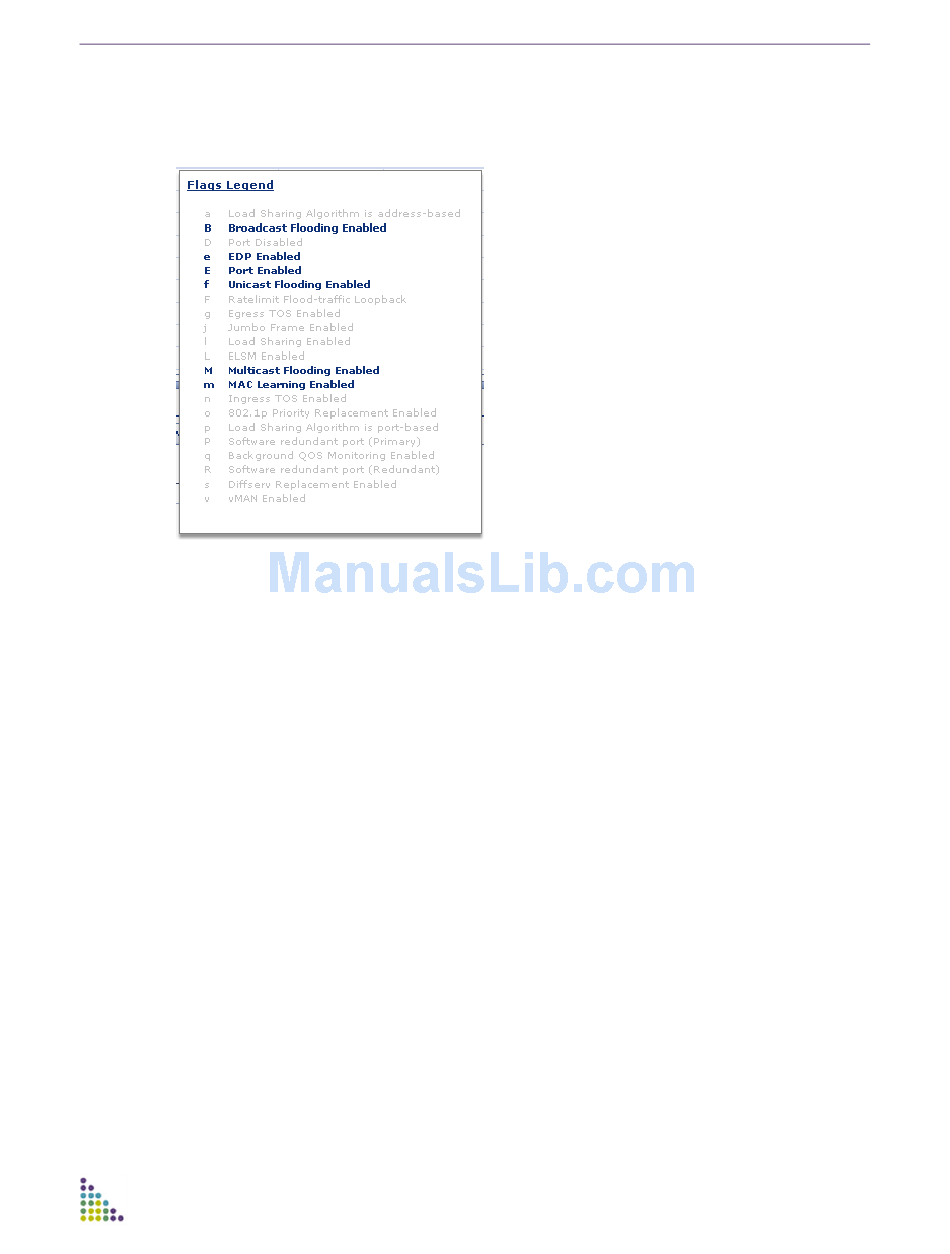

Figure 11: Flags Legend - Configuration
Configuration—VLANs
This feature allows you to create, modify, and delete VLANs, add ports to VLANs
and configure them. The topics available through the VLAN configuration screen
are:
VLAN list
■
VLAN details (Click one of the VLANs in the list.)
■
Enabling and disabling VLANs
■
Basic VLAN configuration
■
Port membership in VLANs
■
Figure 12 shows the VLAN configuration screen of the ScreenPlay tool and the
table below it describes its elements.
Click one of the VLANS in the VLAN List to show the VLAN Details information
for it. The General tab is displayed in
Figure 12: VLANs Configuration Screen
ExtremeXOS ScreenPlay User Guide
ExtremeXOS ScreenPlay User Guide
Figure 12; the other tabs follow.
