5 Data Communications
About Data and Video Communications
Modem Data-Only
This type of modem data station includes only DTE and a modem (see
Figure 5–2). The modem connects to the control unit through an analog port on a
T/R module. If the modem does not provide dialing capability, a single-line
telephone can be connected to it to provide dial-out capability; however, the data
station and the telephone cannot be used simultaneously.
Optical
Scanner
Fax
Credit Card
Verification
PC Terminal
Host
Computer

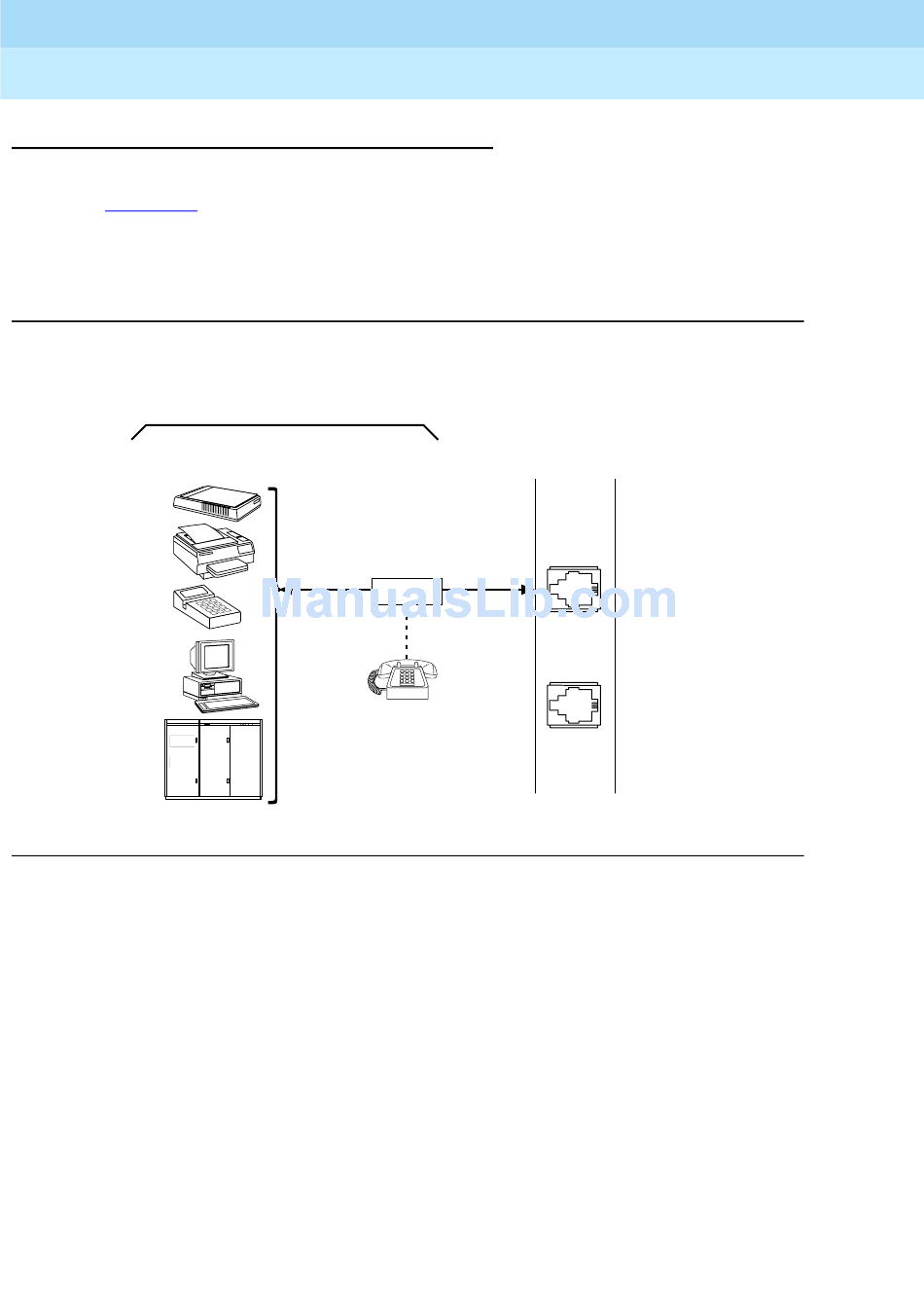

Figure 5–2. Modem Data-Only
Data Station
DTE
Digital
Signal
Single-line
Telephone
(if required for dialing)
5
MERLIN
DCE LEGEND
Control
Analog
Signal
Modem
August 1998
Unit
Analog or Tip/Ring
Extension Jack
MLX
Extension Jack
Issue 1
Page 5-9
