MERLIN LEGEND Communications System Release 6.1
System Manager's Guide 555-661-118
6 Managing the System
Introduction to System Programming

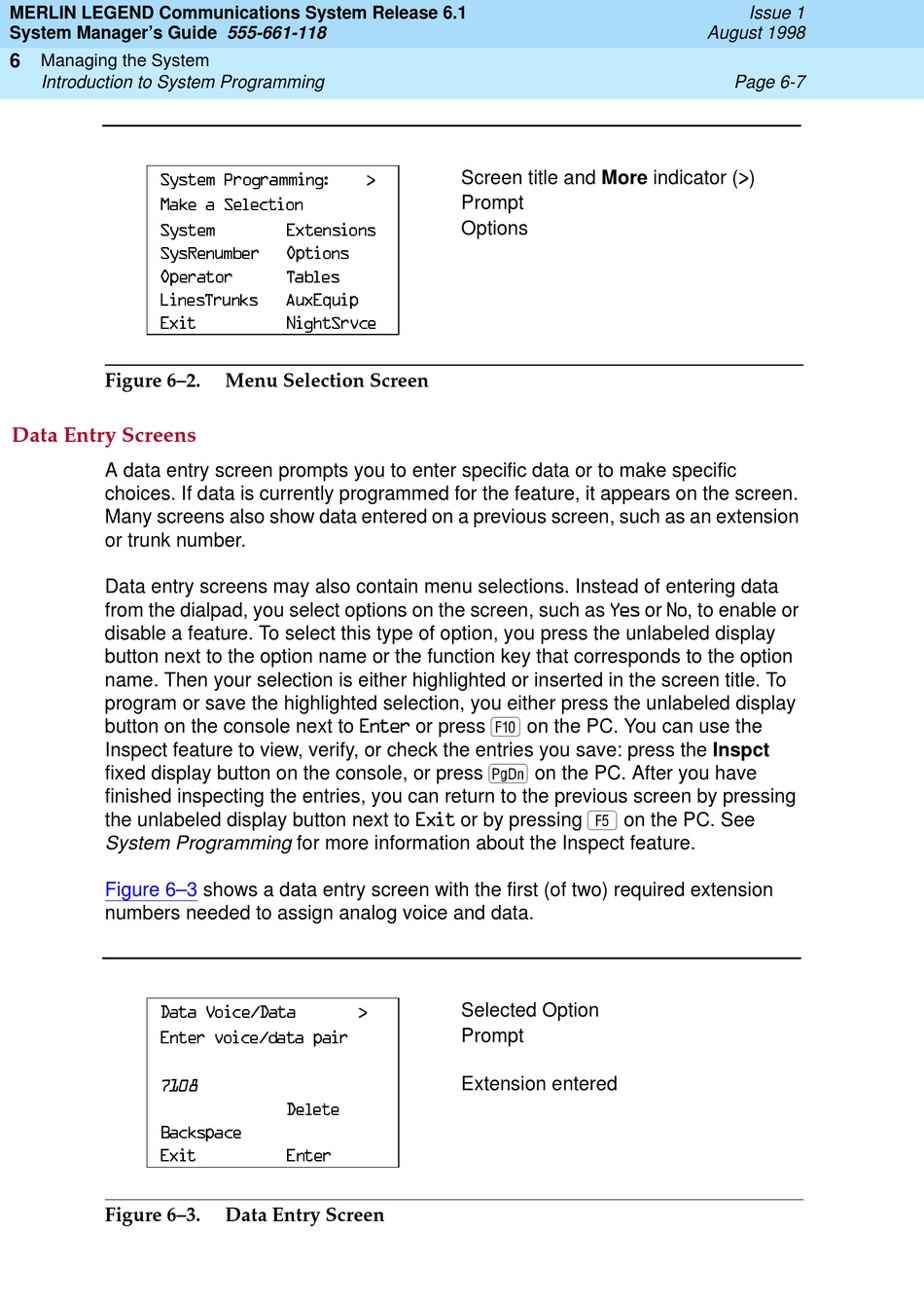

Figure 6–2.
Data Entry Screens
A data entry screen prompts you to enter specific data or to make specific
choices. If data is currently programmed for the feature, it appears on the screen.
Many screens also show data entered on a previous screen, such as an extension
or trunk number.
Data entry screens may also contain menu selections. Instead of entering data
from the dialpad, you select options on the screen, such as
disable a feature. To select this type of option, you press the unlabeled display
button next to the option name or the function key that corresponds to the option
name. Then your selection is either highlighted or inserted in the screen title. To
program or save the highlighted selection, you either press the unlabeled display
button on the console next to
Inspect feature to view, verify, or check the entries you save: press the Inspct
fixed display button on the console, or press
finished inspecting the entries, you can return to the previous screen by pressing
the unlabeled display button next to
System Programming for more information about the Inspect feature.
Figure 6–3
numbers needed to assign analog voice and data.

Figure 6–3.

Menu Selection Screen

shows a data entry screen with the first (of two) required extension

Data Entry Screen

Screen title and More indicator ( )
Prompt
Options
6
or press on the PC. You can use the
on the PC. After you have
or by pressing
Selected Option
Prompt
Extension entered
Issue 1
August 1998
Page 6-7
or , to enable or
on the PC. See
