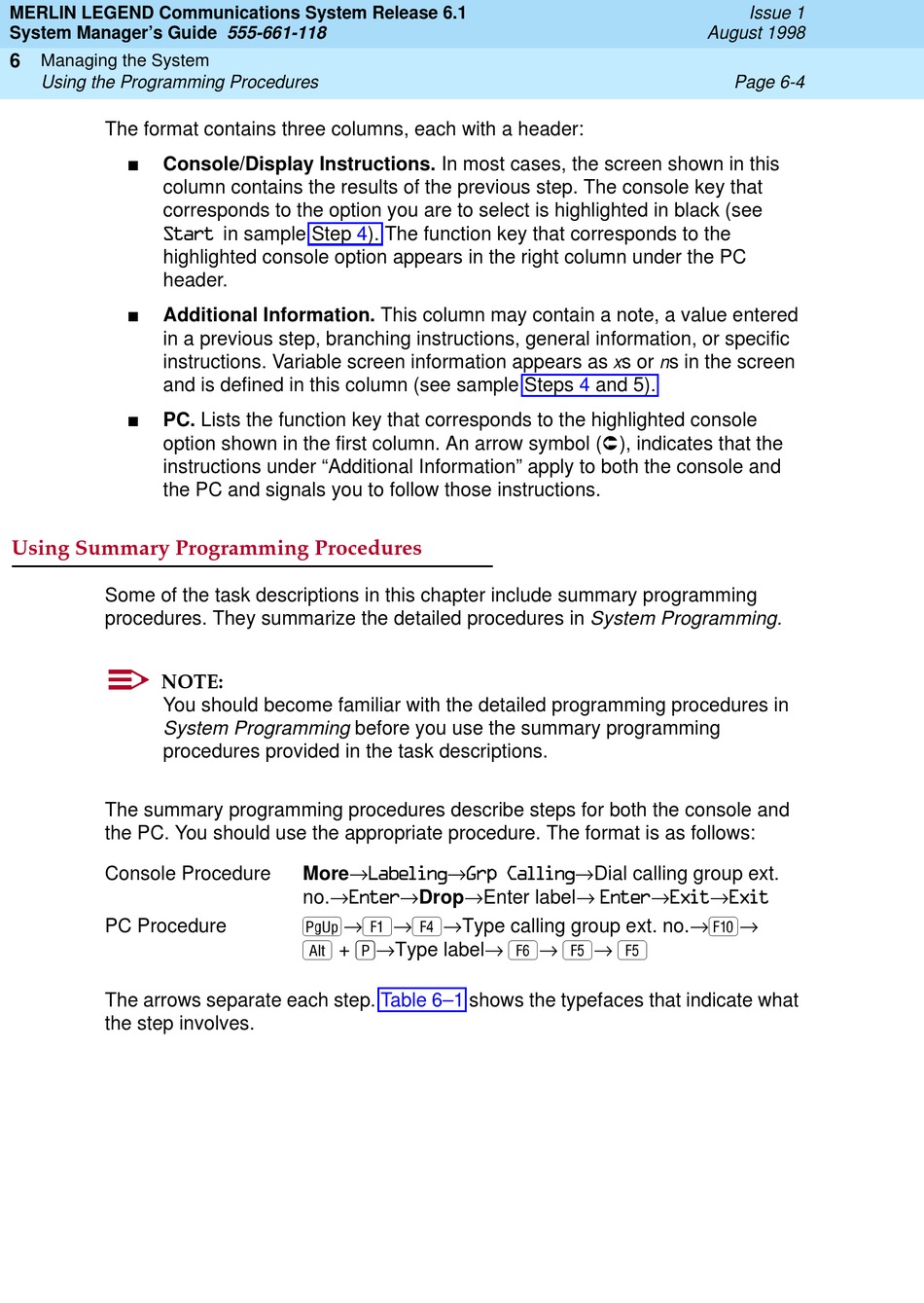

Lucent Technologies MERLIN LEGEND Release 6.1 System Manager's Manual page 239

MERLIN LEGEND Communications System Release 6.1
System Manager's Guide 555-661-118
6 Managing the System
Using the Programming Procedures
The format contains three columns, each with a header:
Console/Display Instructions. In most cases, the screen shown in this
column contains the results of the previous step. The console key that
corresponds to the option you are to select is highlighted in black (see
highlighted console option appears in the right column under the PC
header.
Additional Information. This column may contain a note, a value entered
in a previous step, branching instructions, general information, or specific
instructions. Variable screen information appears as
and is defined in this column (see sample Steps
PC. Lists the function key that corresponds to the highlighted console
option shown in the first column. An arrow symbol ( ), indicates that the
instructions under "Additional Information" apply to both the console and
the PC and signals you to follow those instructions.
Using Summary Programming Procedures
Some of the task descriptions in this chapter include summary programming
procedures. They summarize the detailed procedures in System Programming.
NOTE:
You should become familiar with the detailed programming procedures in
System Programming before you use the summary programming
procedures provided in the task descriptions.
The summary programming procedures describe steps for both the console and
the PC. You should use the appropriate procedure. The format is as follows:
Console Procedure
PC Procedure
The arrows separate each step.
the step involves.
in sample Step 4). The function key that corresponds to the
More
no.
+ Type label
Table 6–1
4
6
Drop Enter label
Type calling group ext. no.
shows the typefaces that indicate what
Issue 1
August 1998
Page 6-4
s or s in the screen
x n
and 5).
Dial calling group ext.
