13. Plug all peripheral devices and the AC power cable into the server.
Installing a Slimline Optical Drive (SR1530HCL/SR1530HCLS
and SR1530HCLR/SR1530HCLSR)
Note: If you are replacing an optical drive, see
(SR1530CL/SR1530CLR)" on page 58
directed.
Note: The hardware necessary to install your optical drive was shipped to you in a bag labeled
"CD-ROM Assy".
1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System Cover" on page
4. Remove the bezel if it is installed. For instructions, see
Bezel" on page
5. Attach the interposer board to the rear of the CD-ROM or DVD-ROM drive, using
two screws, as shown by the following figure.

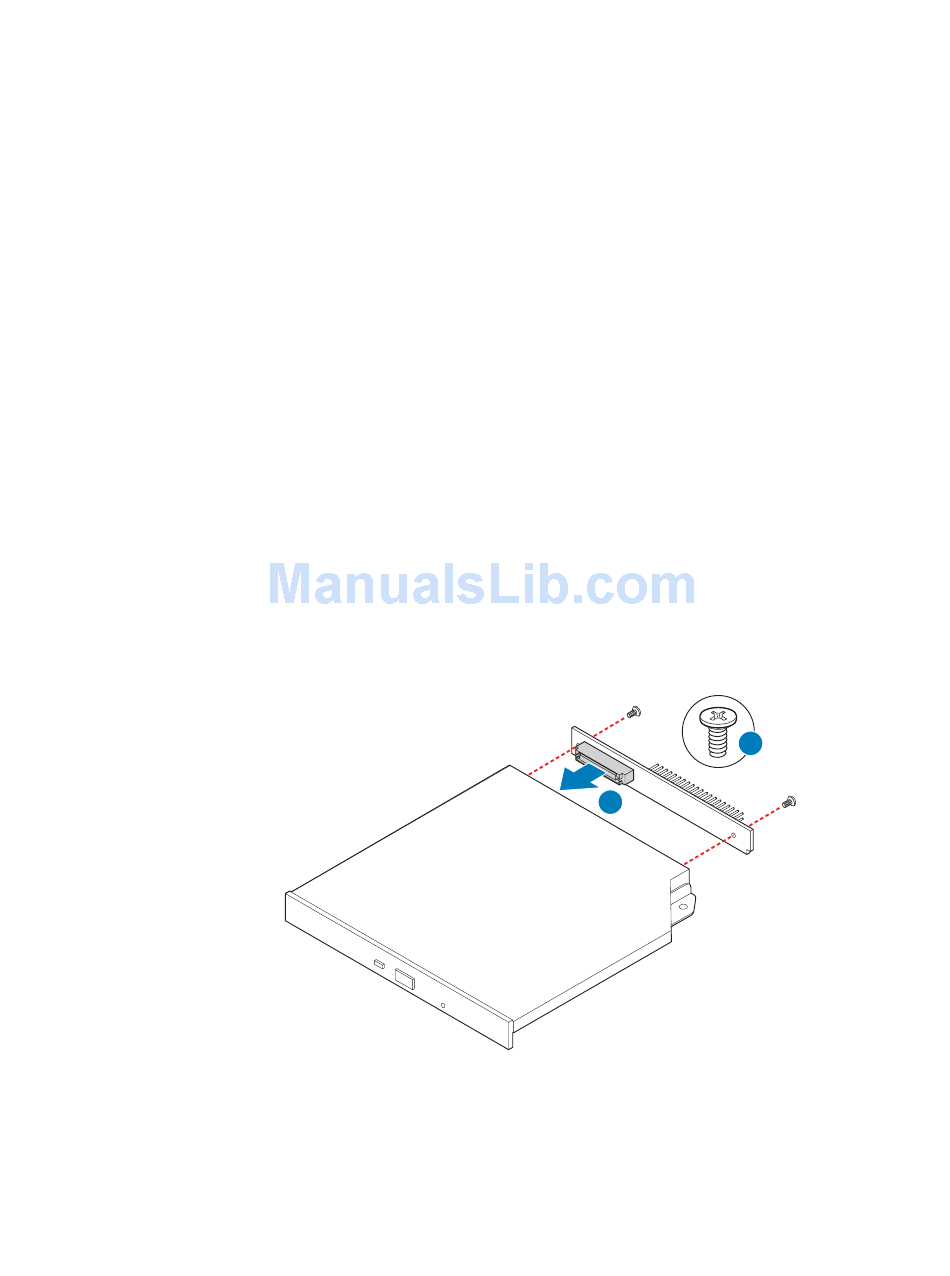

Figure 52. Attaching the Interposer Board (SR1530HCL/SR1530HCLS and
Server System User Guide
"Removing a Slimline Optical Drive
for instructions first. Return to these steps when
iii.
28.
26.
SR1530HCLR/SR1530HCLSR)
"Removing the Server
"Removing the Front
B
A
AF001186
"Safety
55
