Installing The Server System Cover; Figure 21. Removing The Server System Cover - Intel SR1530CL - Server System - 0 MB RAM User Manual

5. (SR1530HCL/SR1530HCLS and SR1530HCLR/SR1530HCLSR) Remove the
four screws at the front of the chassis (see letter "A" in the following figure). Push
rearward on the blue grip point at the front of the server. Slide the cover back until
it stops and then lift cover upward to remove it (see letter "B").

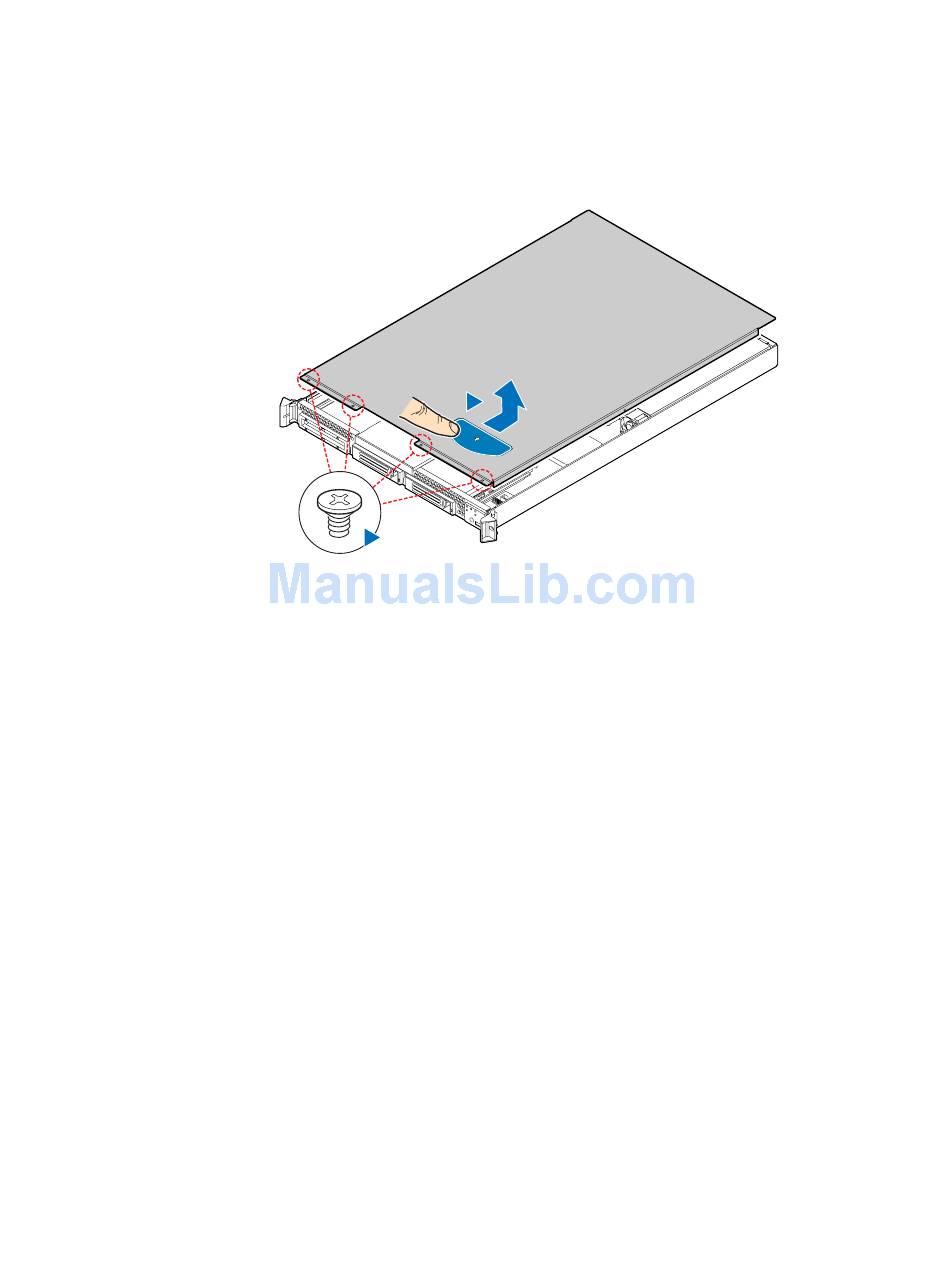

Figure 21. Removing the Server System Cover (SR1530HCL/SR1530HCLS

Installing the Server System Cover

1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. (SR1530CL/SR1530CLR) Place the cover over the server system so that the side
edges of the cover sit just inside the server system sidewalls. Slide the cover
forward (see letter "A" in the following figure). Tighten the screw at the rear of the
server (see letter "B"). Install the two screws at the front of the server (see letter
"C").
30
B
A
and SR1530HCLR/SR1530HCLSR)
iii.
AF001615
"Safety
Server System User Guide
