Hardware Installations and Upgrades
Installing a Slimline Optical Drive
1. Install the plastic guide onto the back of the drive and attach with two screws as shown (see
letter "A").
2. Insert the optical drive into chassis opening and push all the way until it stops (see letter "B").
Connect the cables as shown (see letter "C").
Removing a Slimline Optical Drive
1. Remove the cables (see letter "A").
2. Lift up the blue tab to release the optical drive (see letter "B").
3. Slide the optical drive out (see letter "C").
42

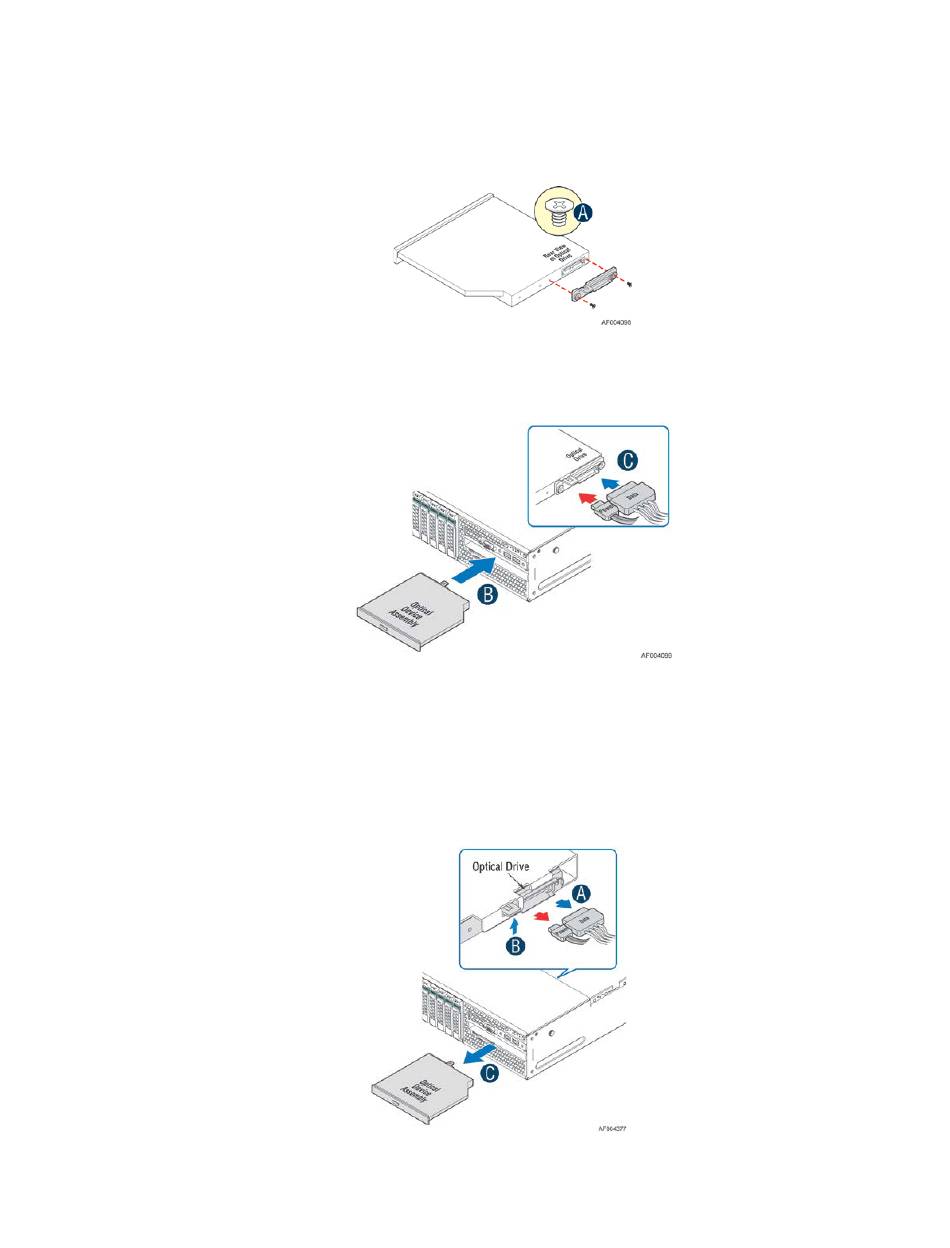

Figure 61. Installing the Plastic Guide to the Optical Drive
Figure 62. Installing an Optical Drive
Figure 63. Removing the Slimline Optical Drive
®
Intel
Server System R2000BB Service Guide
