12. Connect the blower cables to the server board. See letters "A" and "B" in the
following figure.

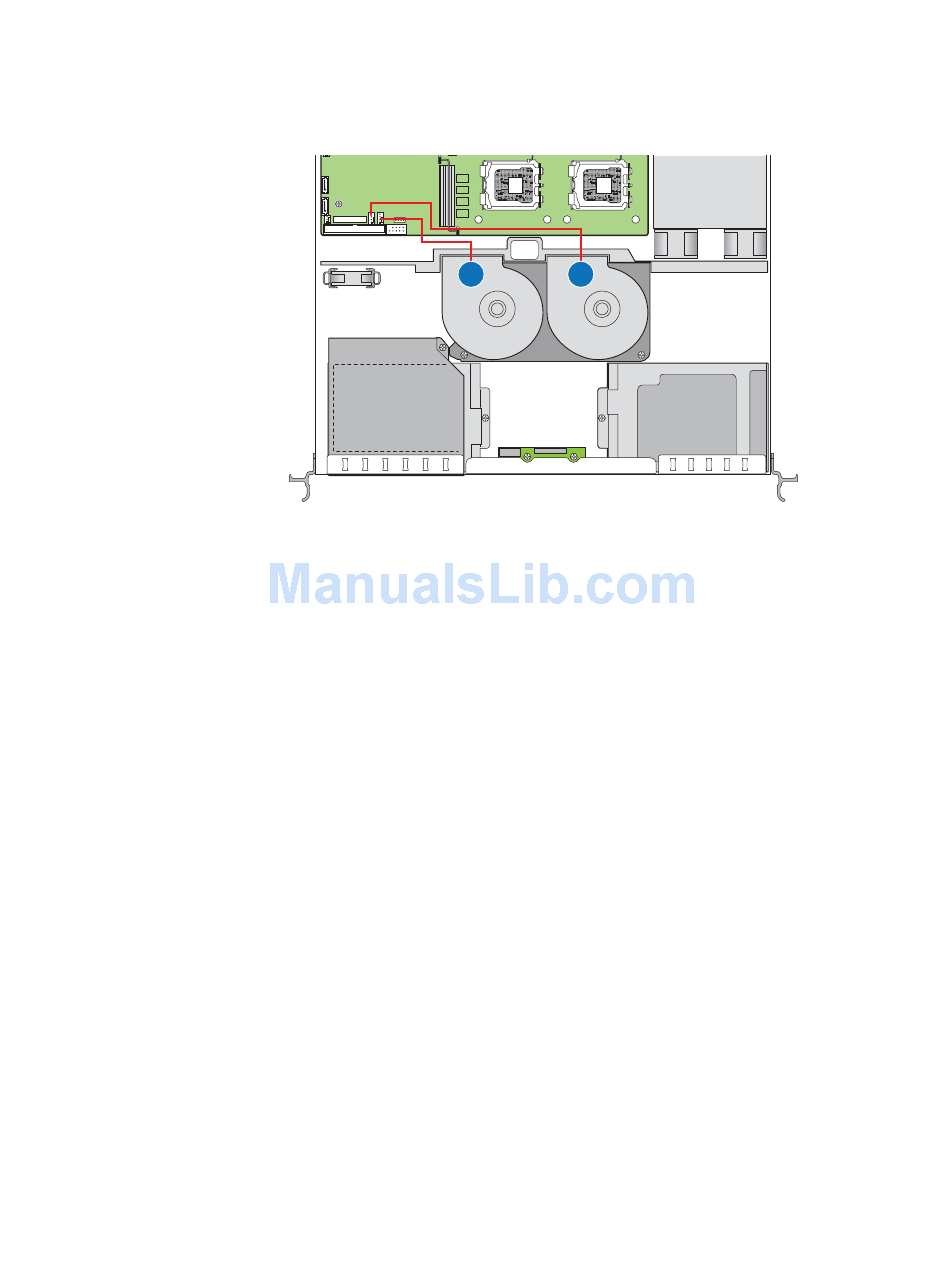

Figure 90. Connecting System Blower Cables (SR1530CL/SR1530CLR)

13. Install the processor air duct. For instructions. see
Duct" on page
14. Install the server system cover. For instructions, see
Cover" on page
15. Plug all peripheral devices and the AC power cable into the server.
Replacing a System Blower (SR1530HCL/SR1530HCLS and
SR1530HCLR/SR1530HCLSR)
1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System
4. Remove the processor air duct. For instructions, see
Duct" on page 32
Server System User Guide
A
33.
30.
iii.
Cover".
B
AF001180
"Installing the Processor Air
"Installing the Server System
"Removing the Server
"Removing the Processor Air
"Safety
91
