6. Remove the processor from the packaging box and remove the protective shipping
cover.
7. Orient the processor with the socket so the processor cutouts match the socket
notches (see letter "A" in the following figure). Set the processor into place as
shown in letter B.
Note: Make sure the alignment triangle mark and the alignment triangle cutout align correctly.
8. Remove the protective socket cover.
Note: Retain the protective socket cover for use when removing a processor that will not be
replaced.
Server System User Guide

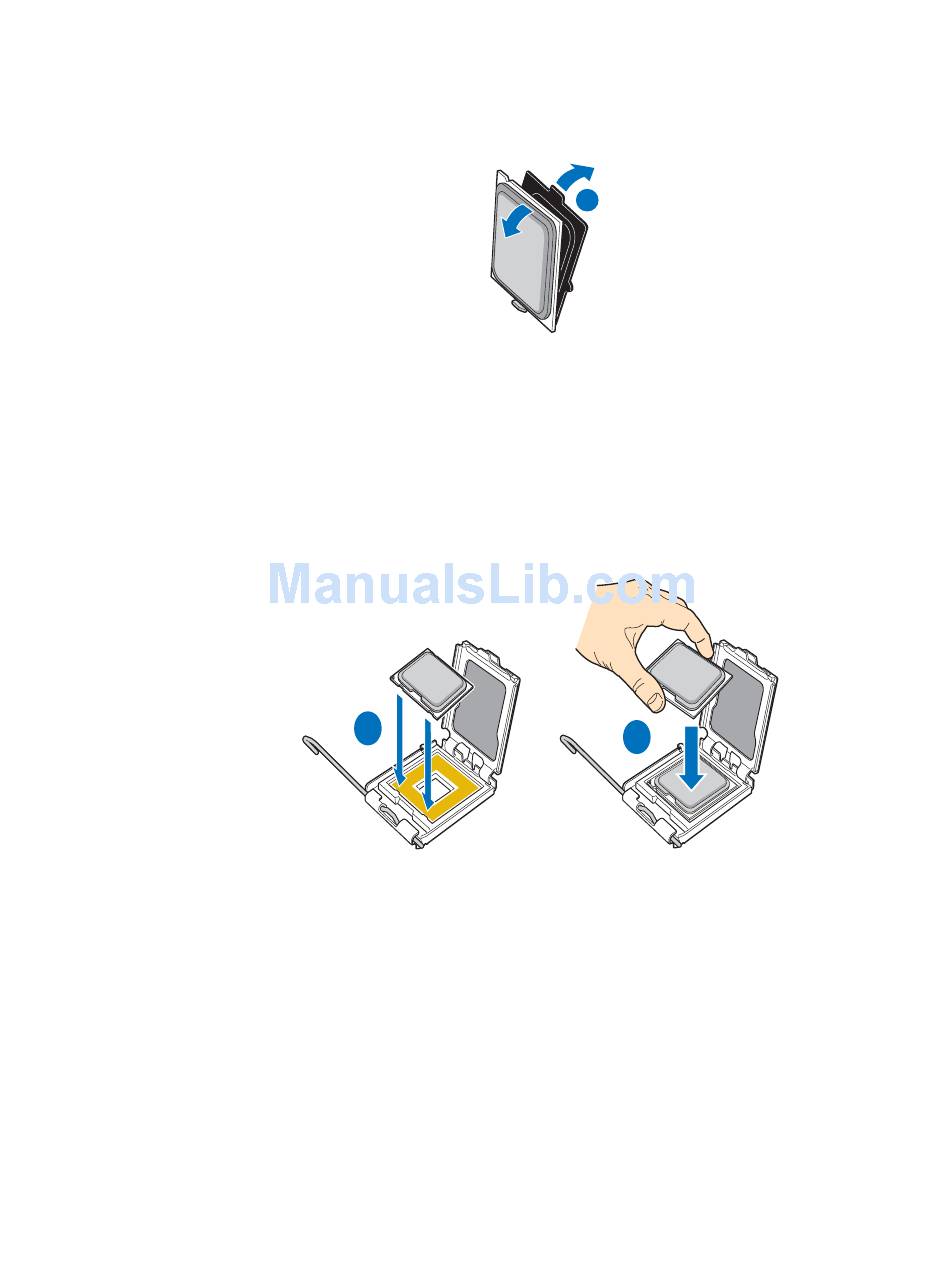

Figure 31. Removing the Shipping Cover

A

Figure 32. Installing the Processor

A
AF000653
B
AF000654
39
