Figure 48. Attaching The Interposer Board (Sr1530Cl/Sr1530Clr); Figure 49. Attaching The Brackets To The Optical Drive (Sr1530Cl/Sr1530Clr) - Intel SR1530CL - Server System - 0 MB RAM User Manual

7. Attach the interposer board to the rear of the CD-ROM or DVD-ROM drive (see
letter "A" in the following figure). Secure the interposer board to the rear of the
CD-ROM or DVD-ROM drive with two screws (see letter "B").

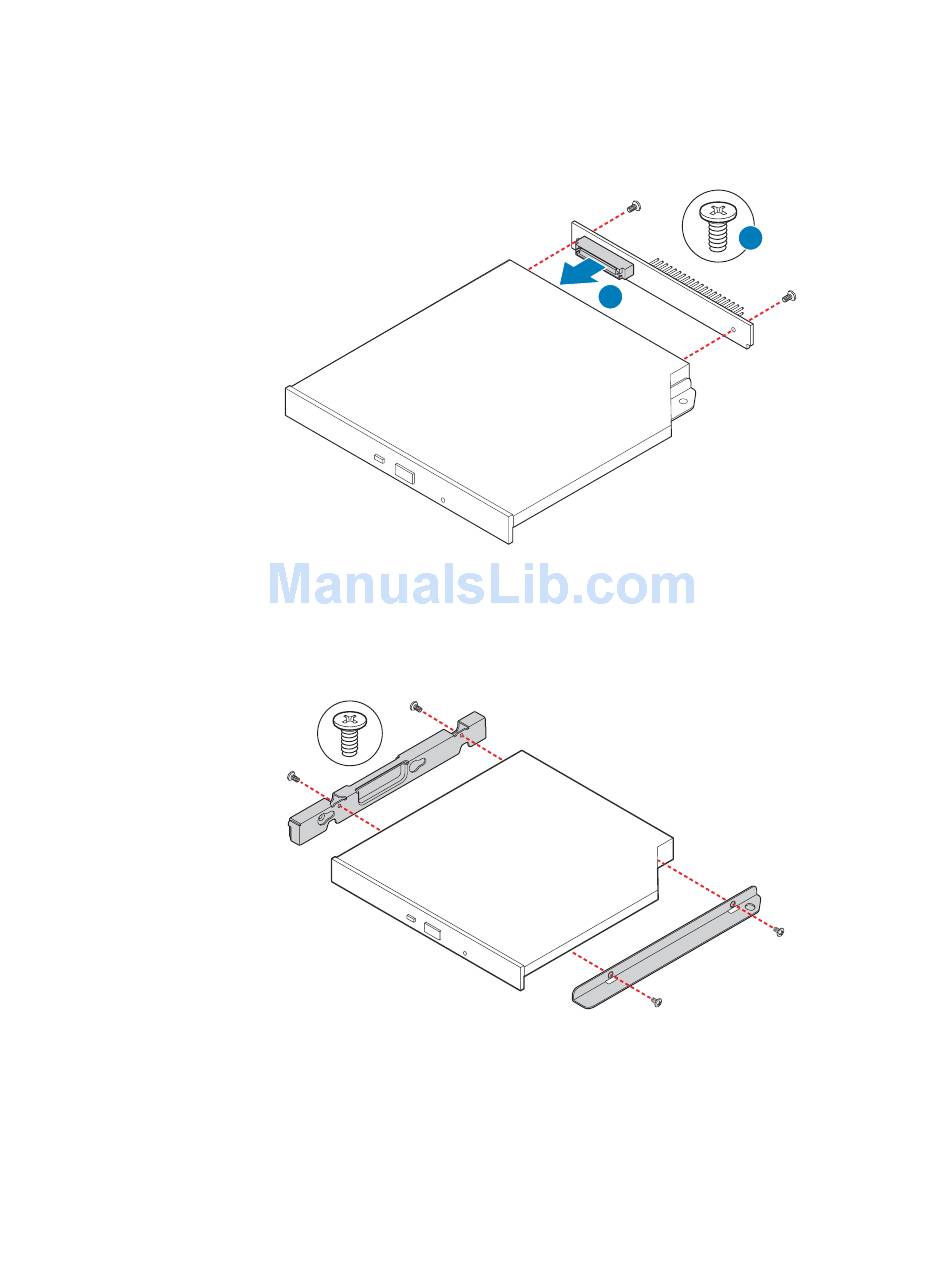

Figure 48. Attaching the Interposer Board (SR1530CL/SR1530CLR)

8. Attach the brackets to the optical drive using four screws as shown in the following
figure.
Figure 49. Attaching the Brackets to the Optical Drive (SR1530CL/
Server System User Guide
A
SR1530CLR)
B
AF001186
AF000672
