7. Connect the power supply cables to the server board and peripherals.
— A: Aux power signal
— B: 2x12 main power connector
— C: 2x4 power connector
— D: Daisy-chain cable to:
.
8. Install the server system cover. For instructions, see
Cover" on page
9. Plug all peripheral devices and the AC power cable into the server.
Server System User Guide
✧ HDD1 power connector, if a hard drive is installed here. Use connector on
cable that is closest to power supply.
✧ HDD0 power connector, if a hard drive is installed here. Use center connector
on the cable.
✧ Optical drive power, if optical drive is installed. Use end connector on the
cable.
D

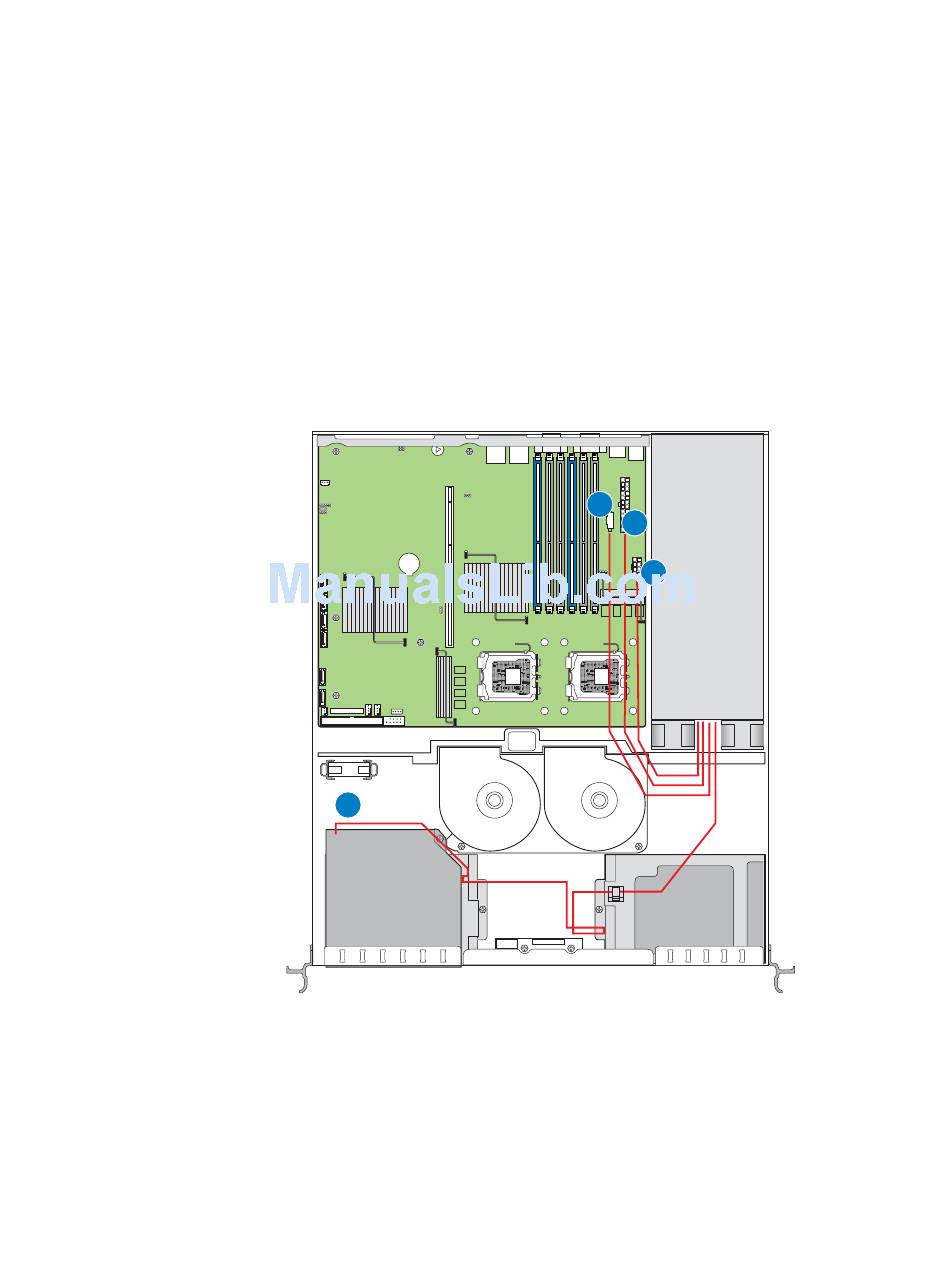

Figure 76. Connecting Power Cables (SR1530CL/SR1530CLR)

30.
A
B
C
AF000998
"Installing the Server System
77
