Figure 46. Lifting Pci Cooling Fan From Mounting Pegs (Sr1530Cl/Sr1530Clr); Figure 47. Removing The Knockout In Bezel For Optical Drive Opening (Sr1530Cl/Sr1530Clr) - Intel SR1530CL - Server System - 0 MB RAM User Manual

5. Note the orientation of the PCI cooling fan that is located behind the optical drive
bay, then lift the fan from the mounting pegs. It is not necessary to disconnect the
fan cable. See letter "A" in the following figure.

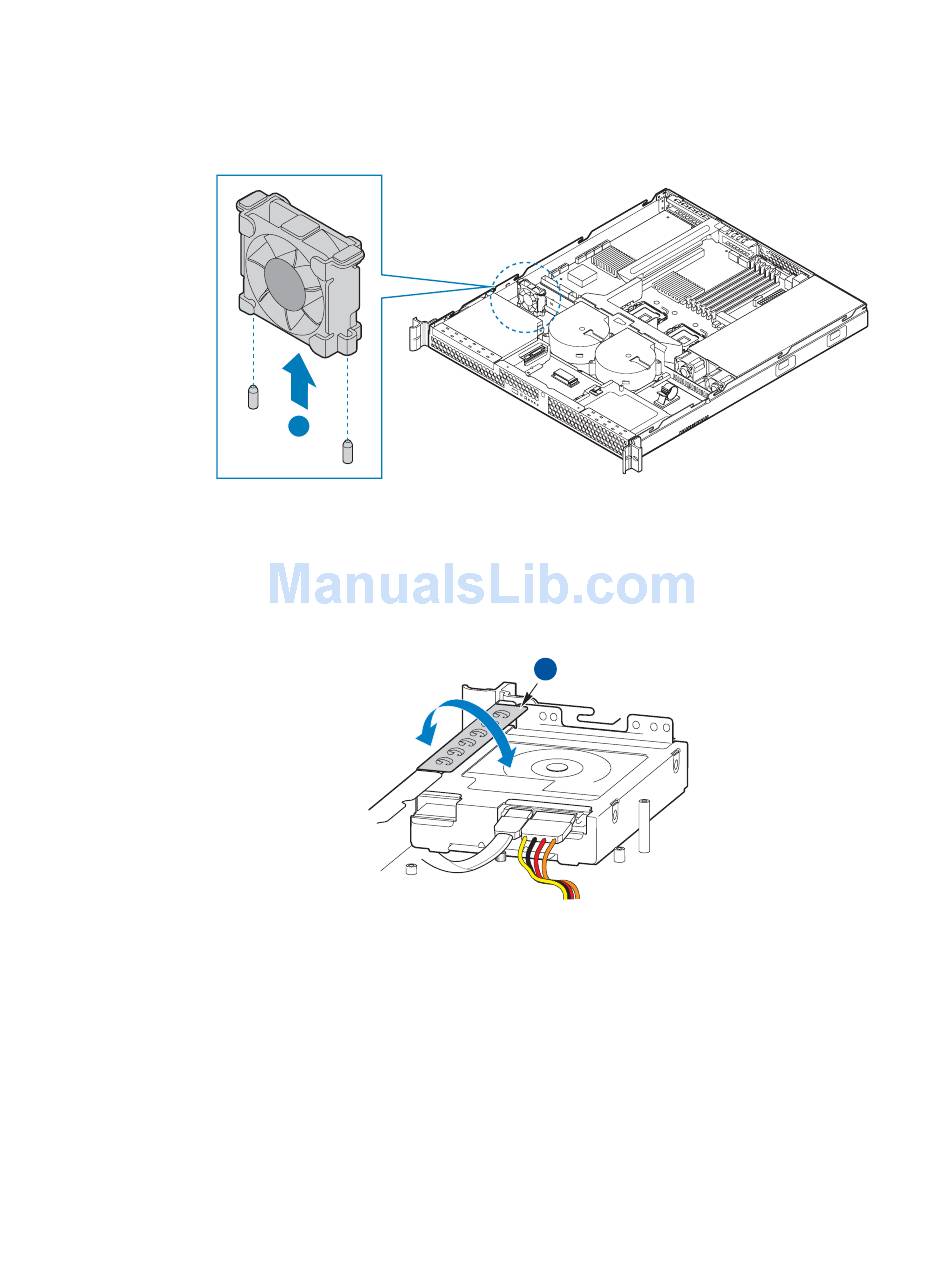

Figure 46. Lifting PCI Cooling Fan from Mounting Pegs (SR1530CL/
6. First time installation only: Remove the knockout in the bezel that corresponds to
the opening for the optical drive by rocking it back and forth (see letter "A" in the
following figure). The knockout cannot be reinstalled.
Figure 47. Removing the Knockout in Bezel for Optical Drive Opening
52
A
SR1530CLR)
(SR1530CL/SR1530CLR)
A
AF001172
Server System User Guide
AF000988
