5. Disconnect the blower cable from the server board (see letter "A" in the following
figure).
Remove the two screws attaching the system blower to the server system (see letter
"B").
Lift system blower out of the system.
Note: If you are replacing the right system blower (system blower #2), you will have

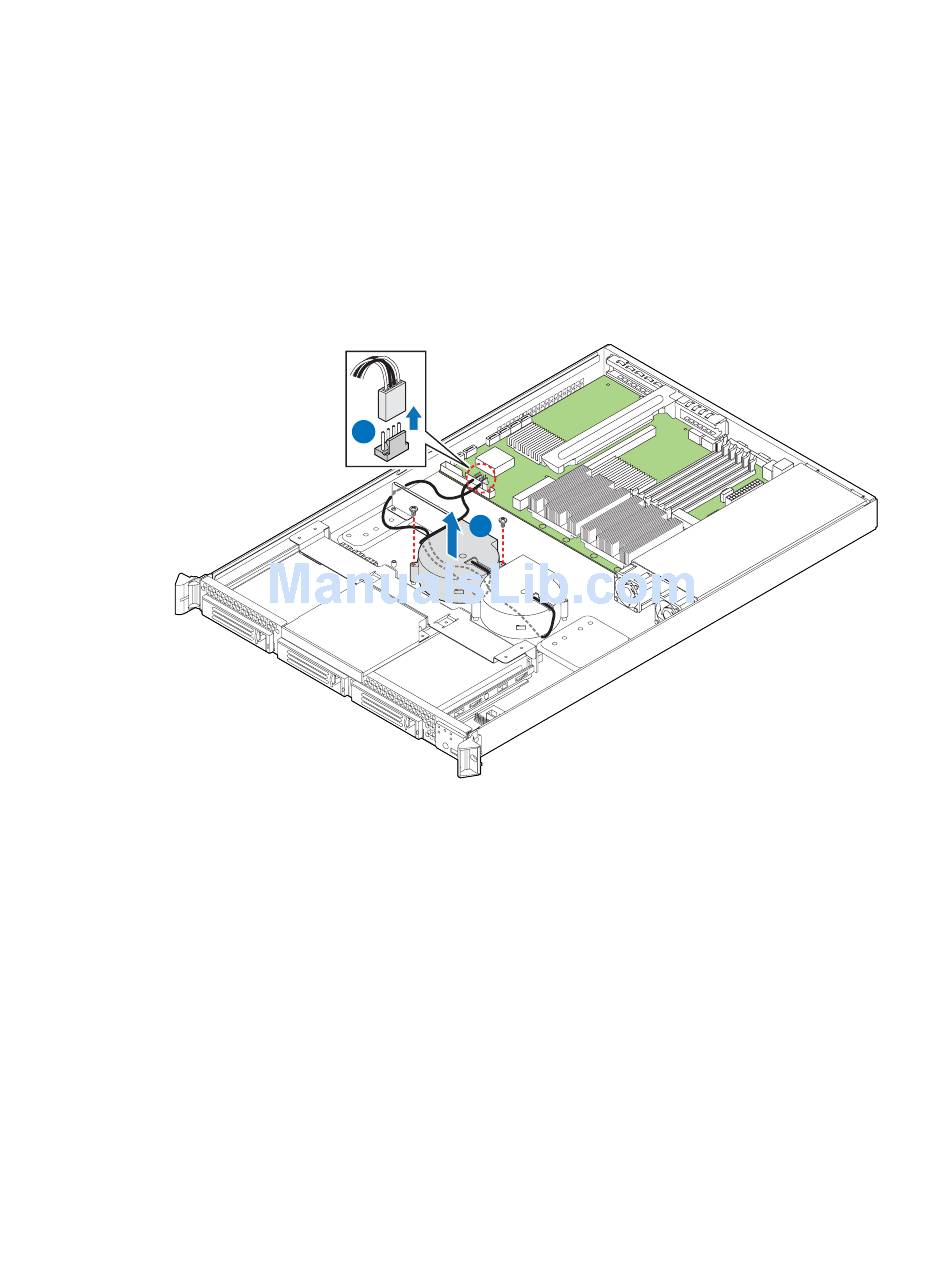

Figure 91. Removing System Blower from Server System (SR1530HCL/
92
to remove the left system blower (system blower #1) first because the cable for
system blower #2 runs underneath system blower #1.
A
SR1530HCLS and SR1530HCLR/SR1530HCLSR)
B
AF001648
Server System User Guide
