10. Remove the two screws at the back of the CD-ROM or DVD-ROM drive to detach
the interposer board from the drive (see letter "A" in the following figure).
Carefully pull the interposer board from the drive, detaching the interposer board
connector from the drive (see letter "B").

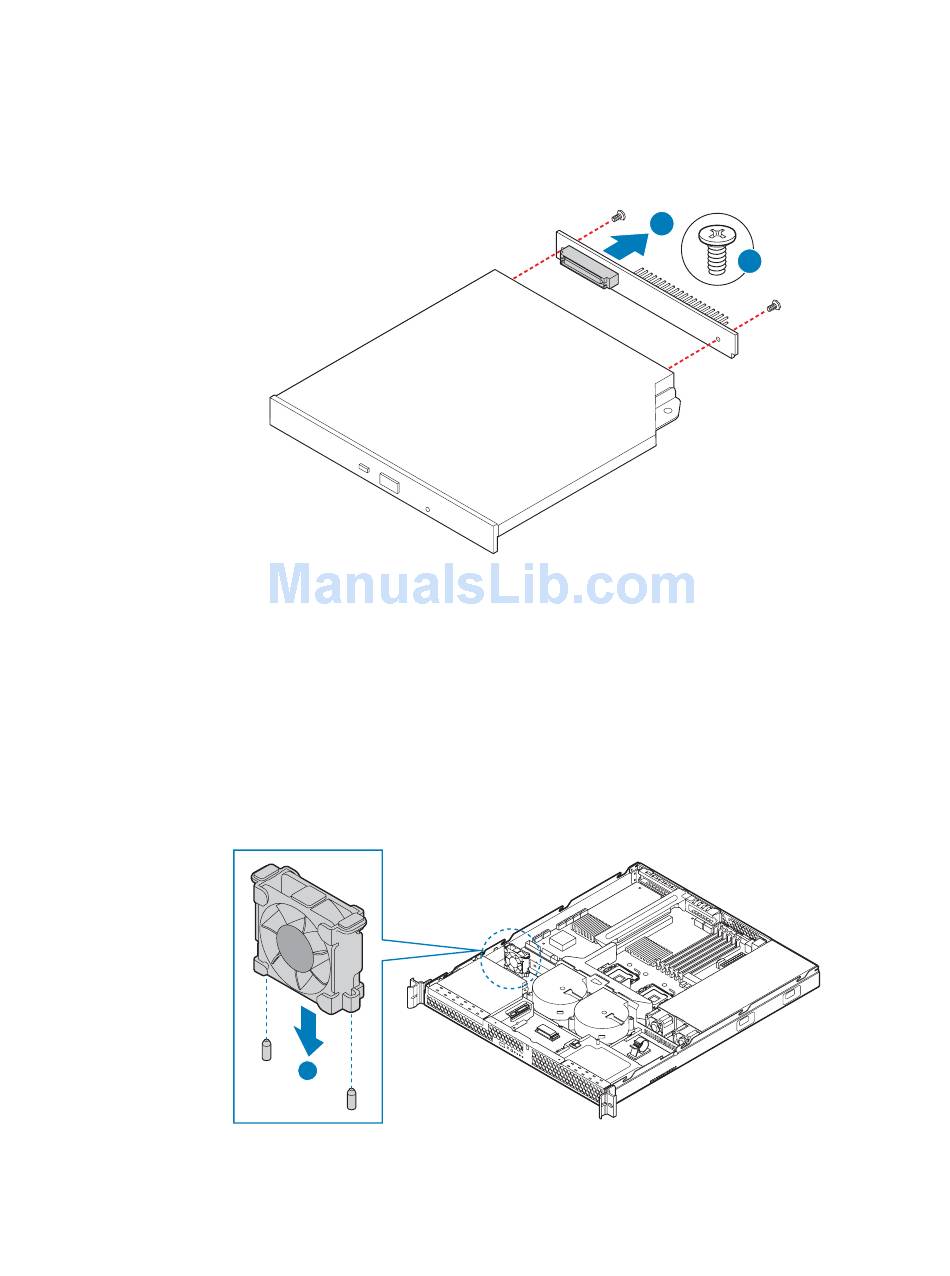

Figure 59. Removing the Interposer Board from the Optical Drive
11. If you are installing a replacement optical drive, skip the rest of these steps and
instead continue with
SR1530CLR)", step 7 on page 53.
12. Store the brackets and interposer board for future use.
13. Insert the PCI cooling fan onto the mounting pegs that are located behind the
optical drive bay. The fan label should face the rear of the system. See letter "A" in
the following figure.
Figure 60. Installing the PCI Cooling Fan onto Mounting Pegs (SR1530CL/
60
(SR1530CL/SR1530CLR)
"Installing a Slimline Optical Drive (SR1530CL/
A
SR1530CLR)
B
A
AF001203
AF000989
Server System User Guide
