Page 1: Technical Product Specification

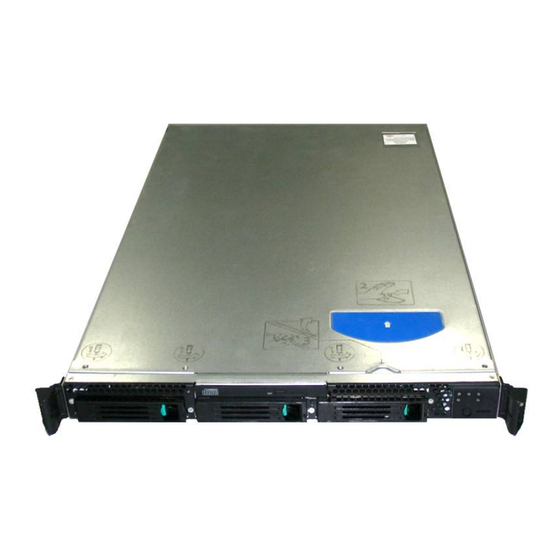

Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR /SR1530HCLSR Technical Product Specification Intel order number D71005-005 Revision 2.2 May 2010 Enterprise Platforms and Services Division - Marketing... -
Page 2: Revision History
Intel products are not intended for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and product descriptions at any time, without notice. -
Page 3: Table Of Contents
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Table of Contents and SR1530CLR/SR1530HCLR/SR1530HCLSR Table of Contents 1. Introduction .......................... 1 System Views ......................1 System Dimensions ....................2 System Components ....................3 System Boards ......................5 Hard Drive and Peripheral Bays ................5 Power Sub-System ....................7 System Cooling...................... - Page 4 Table of Contents Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR 4.2.1 Hot-Swap Hard Disk Drive Trays ................19 4.2.2 Drive Blanks......................20 4.2.3 System Fan Connectors ..................21 5. Front Control Panel......................22 5.1.1 Power/Sleep LED ....................24 5.1.2 System Status LED....................24 5.1.3...
- Page 5 Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS List of Figures and SR1530CLR/SR1530HCLR/SR1530HCLSR List of Figures ® Figure 1. Intel Server System SR1530CL/SR1530CLR (SATA) ..........1 ® Figure 2. Intel Server Systems SR1530HCL/SR1530HCLR (SATA) and SR1530HCLS/SR1530HCLSR (SAS) ..................2 Figure 3. Major System Components - SR1530CL/SR1530CLR (SATA)........3 Figure 4.
- Page 6 List of Tables Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR List of Tables ® Table 1. Intel Server System SR1530CL/SR1530CLR Dimensions ........... 2 ® Table 2. Intel Server Systems SR1530HCL/SR1530HCLR and SR1530HCLS/SR1530HCLSR Dimensions..........................2 Table 3. Cable Harness Definition ....................9 Table 4.
- Page 7 Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS List of Tables and SR1530CLR/SR1530HCLR/SR1530HCLSR Table 31. POST Error Beep Codes .................... 46 Table 32. BMC Beep Codes ....................... 46 Revision 2.2 Intel order number D71005-005...
- Page 8 List of Tables Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR < This page intentionally left blank. > viii Revision 2.2 Intel order number D71005-005...
-
Page 9: Introduction
SR1530CLR/SR1530HCLR/SR1530HCLSR Introduction ® The Intel Server Systems SR1530CL/SR1530CLR and SR1530HCL/SR1530HCLR are 1U ® server systems that are designed to support the Intel Server Board S5000VCL/S5000VCLR ® (SATA). The Intel Server System SR1530HCLS/SR1530HCLSR is designed to support the ® Intel Server Board S5000VCLSASBB/BBS5000VCLSASR (SAS). -
Page 10: System Dimensions
Introduction Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR ® Figure 2. Intel Server Systems SR1530HCL/SR1530HCLR (SATA) and SR1530HCLS/SR1530HCLSR (SAS) System Dimensions ® Table 1. Intel Server System SR1530CL/SR1530CLR Dimensions Height 1.69 inches Width without rails 17 inches Depth without CMA 20 inches... -
Page 11: System Components
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Introduction and SR1530CLR/SR1530HCLR/SR1530HCLSR System Components AF001185 Rack handles (two) Processor sockets (two) PCI cooling fan System blower fans (two) Processor air duct Hard drives (two) PCI add-in card bracket Control panel System memory DIMM sockets Slimline optical drive Power supply Figure 3. -
Page 12: Figure 4. Major System Components - Sr1530Hcl/Sr1530Hclr (Sata) And
Introduction Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR AF001612 Rack handles (two) Server board PCI air baffle Power supply System blower fans (two) Front panel board Processor air duct Control panel System memory DIMM sockets Hot-swap hard drives (three) PCI riser assembly Slimline optical drive Figure 4. -
Page 13: System Boards
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Introduction and SR1530CLR/SR1530HCLR/SR1530HCLSR Note: The I/O connector locations on the back of the chassis are pre-cut, making an I/O shield unnecessary. The supplied EMI gasket must be installed to maintain electromagnetic interference (EMI) compliance levels. AF001183... -
Page 14: Figure 6. Drive Bays (Sr1530Cl/Sr1530Clr)
Introduction Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR AF001184 Slimline optical drive bay Hard drive bay HDD0 (located under the slimline optical drive bay) Hard drive bay HDD1 Figure 6. Drive Bays (SR1530CL/SR1530CLR) ® The Intel Server Systems SR1530HCL/SR1530HCLR and SR1530HCLS/SR1530HCLSR are designed to support up to three hot-swap SATA (Serial ATA) or SAS hard drives and one slimline optical device. -
Page 15: Power Sub-System
85 VAC shall not cause damage to the power supply, including a fuse blow. System Cooling ® The system provides two non-redundant blower fans. The Intel Server System SR1530CL/SR1530CLR (SATA) also includes an additional PCI cooling fan. When external ambient temperatures remain within specified limits, the cooling system will provide sufficient air flow for all drive configurations, processors, supported memory, and add-in cards. -
Page 16: Power Sub-System
Power Sub-System Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Power Sub-System This specification defines a 400-watt non-redundant power supply that supports a 1U rack mount server system. The power supply and the power supply sub-system shall have five outputs; 3.3 V, 5 V, 12 V, -12 V, and 5 VSB. The input shall be auto-ranging and power factor corrected. -
Page 17: 2.2 Output Connectors
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Power Sub-System and SR1530CLR/SR1530HCLR/SR1530HCLSR 2.2 Output Connectors The power supply has a cable harness with five power connectors used to power various platform sub-systems. The following table defines each power connector. Table 3. Cable Harness Definition... -
Page 18: P2 - Processor Power Connector
Power Sub-System Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR 2.2.2 P2 – Processor Power Connector Connector housing: 8-pin Molex* 39-01-2085 (94V2) or equivalent Contact: Molex, Mini-Fit Jr, HCS, 44476-1111 or equivalent Table 5. P2 – Processor Power Connector Pin-out Signal 18 Awg Color... -
Page 19: P6 - Cd Power Connector
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Power Sub-System and SR1530CLR/SR1530HCLR/SR1530HCLSR 2.2.5 P6 – CD Power Connector Connector housing: Molex* 51065-0400 (94V2) or equivalent Contact: Molex 50212-8000 contact or equivalent Table 8. P6 – CD Power Connector Pin-out Signal 22 Awg Color +5VDC... -
Page 20: Protection Circuits
Power Sub-System Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR 4 VAC. Application of an input voltage below 85 VAC shall not cause damage to the power supply, including a fuse blow. Table 11. AC Input Rating Parameter Minimum Rated Maximum Start up VAC... -
Page 21: Over-Temperature Protection (Otp)
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Power Sub-System and SR1530CLR/SR1530HCLR/SR1530HCLSR Table 13. Over-Voltage Protection (OVP) Limits Output Voltage Minimum (V) Maximum (V) +3.3 V +5 V +12 V 13.3 14.5 -12 V -13.3 -14.5 +5 VSB 2.5.3 Over-temperature Protection (OTP) The power supply will be protected against over temperature conditions caused by loss of fan cooling or excessive ambient temperature. -
Page 22: Cooling Sub-System
Cooling Sub-System Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Cooling Sub-System The cooling sub-system consists of two 97 x 94 x 33 blower fan, a CPU air duct, and a PS/electronics bay isolation air baffle. The SR1530CL also includes one additional 40 x 40 x 15 PCI cooling fan. -
Page 23: Power Supply Fans
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Cooling Sub-System and SR1530CLR/SR1530HCLR/SR1530HCLSR AF001648 Figure 11. Fan Module Assembly - SR1530HCL/SR1530HCLR (SATA) and SR1530HCLS/SR1530HCLSR (SAS) Table 14. Cooling Zones Cooling Greatest Cooling Influence Zone System fan blower 1 CPU1 Primary cooling for CPU1 and the system memory... -
Page 24: Figure 12. Air Baffle (Sr1530Cl/Sr1530Clr)
Cooling Sub-System Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR AF001284 Figure 12. Air Baffle (SR1530CL/SR1530CLR) Figure 13. Air Baffle (SR1530HCL/SR1530HCLR) Revision 2.2 Intel order number D71005-005... -
Page 25: Peripheral And Hard Drive Support
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Peripheral and Hard Drive Support and SR1530CLR/SR1530HCLR/SR1530HCLSR Peripheral and Hard Drive Support ® The Intel Server System SR1530CL/SR1530CLR (SATA) provides support for two fixed hard drive bays and one slimline peripheral drive bay at the front of the system. The fixed hard drive bays are designed to support SATA drives. -
Page 26: Optical Drive Support
Peripheral and Hard Drive Support Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Figure 15. Drive Bays - SR1530HCL/SR1530HCLR (SATA) and SR1530HCLS/SR1530HCLSR (SAS) Slimline optical drive bay Hot Swap Hard drive bay Optical Drive Support The system provides a slimline drive bay that can be configured for an IDE optical CD-ROM, or a DVD/CDR drive. -
Page 27: Hard Disk Drive Support
Server System SR1530CL/SR1530CLR (SATA) can support up to two 3.5-inch by 1- ® inch fixed SATA hard disk drives. The drives are mounted inside the systems. The Intel Server System SR1530HCL/SR1530HCLR (SATA) can support up to three SATA hot-swap hard disk ®... -
Page 28: Drive Blanks
Peripheral and Hard Drive Support Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR TP02170 Figure 16. Hard Drive Tray Assembly Hard Drive Drive Carrier Side Rail Mounting Screw Hard Drive Connector 4.2.2 Drive Blanks Drive blanks must be used when no drive is used in a hard drive bay. Drive blanks simulate the spatial volume of a hard disk which is required to maintain proper air pressure limits necessary to cool the system. -
Page 29: System Fan Connectors
The Intel Server System SR1530CL/SR1530CLR (SATA) supports two system fan blowers and ® one PCI cooling fan. The pin-out for each connector is provided in the following table. The Intel Server Systems SR1530HCL/SR1530HCLR and SR1530HCLS/SR1530HCLSR support two system fan blowers. -
Page 30: Front Control Panel
Front Control Panel Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Front Control Panel The standard control panel supports a power and reset buttons, status LED, hard drive activity LED, and NIC 1 and NIC 2 activity LEDs. The control panel assembly comes pre-assembled into the system. -
Page 31: Figure 19. Front Control Panel - Sr1530Hcl/Sr1530Hclr (Sata) And
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Front Control Panel and SR1530CLR/SR1530HCLR/SR1530HCLSR Figure 19. Front Control Panel - SR1530HCL/SR1530HCLR (SATA) and SR1530HCLS/SR1530HCLSR (SAS) Item Feature NIC 1 LED NIC 2 LED System power LED System power LED Hard drive activity LED Hard drive activity LED Power button. -
Page 32: Power/Sleep Led
Front Control Panel Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR The current limiting resistors for the power LED, the system fault LED, and the NIC LEDs are ® located on the Intel Server Board S5000VCL. 5.1.1 Power/Sleep LED Table 18. SSI Power LED Operation... -
Page 33: Drive Activity Led
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Front Control Panel and SR1530CLR/SR1530HCLR/SR1530HCLSR Color State Criticality Description Amber Blink Non-critical Non-fatal alarm – system is likely to fail Critical voltage threshold crossed VRD hot asserted Minimum number of fans to cool the system not present or failed... -
Page 34: Pci Riser Cards And Assembly
PCI Riser Cards and Assembly Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR PCI Riser Cards and Assembly ® The Intel Server Board S5000VCL provides one PCI super slot which supports one riser card with two riser card slots. One low-profile (68.9mm X 119.91mm) PCI Express* x8 and one full height/mid length(106.68mm x 241.3mm) PCI-X* 133. -
Page 35: Backplane Board
SR1530HCLS/SR1530HCLSR (SAS) supports a passive backplane designed to be compatible ® ® with the Intel Server Board S5000VCL. The Intel Server Board S5000VCL is connected directly to the SATA/SAS backplane (default) or the backplane may be connected to an add-in SAS or SATA adapter. -
Page 36: Table 21. Passive Sata/Sas Backplane Connector To Hard Drive Pin-Out (J1, J2, J3)
Backplane Board Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Table 21. Passive SATA/SAS Backplane Connector to Hard Drive Pin-out (J1, J2, J3) Pin # Signal Name Ground SAS_DRVxA_RX_P SAS_DRVxA_RX_N Ground SAS_DRVxA_TX_N SAS_DRVxA_TX_P Ground Ground Ground Ground P5V_DRVx_PRECHG Ground LED_DRVx_READY_N Ground P12V_DRVx_PRECHG... -
Page 37: Hard Drive Activity Led
SR1530CLR/SR1530HCLR/SR1530HCLSR 7.1.1 Hard Drive Activity LED ® The drive activity LED on the hard drive carrier for the Intel Server Systems SR1530HCL/SR1530HCLR (SATA) and SR1530HCLS/SR1530HCLSR (SAS) shows the following status: Table 23. Hard Drive Activity LED for SAS Drives... -
Page 38: Supported Intel Server Boards
SR1530CLR/SR1530HCLR/SR1530HCLSR Supported Intel Server Boards ® ® The systems are mechanically and functionally designed to support the Intel Server Board S5000VCL. See the technical product specification for the server board for detailed server board information. Intel Server Board S5000VCL Feature Set ®... -
Page 39: Environmental And Regulatory Specifications
Vibration, unpackaged 5 Hz to 500 Hz, 2.20 g RMS random Shock, operating Half sine, 2 g peak, 11 mSec +/-15kV except I/O port +/-8KV per Intel Environmental test specification System Cooling 2550 BTU/hour Requirement in BTU/Hr Serviceability and Availability The system is designed to be serviced by qualified technical personnel only. -
Page 40: Replacing The Cmos Battery
Environmental and Regulatory Specifications Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Replacing the CMOS Battery The lithium battery on the server board powers the real time clock (RTC) for several years in the absence of power. When the battery starts to weaken, it loses voltage, and the server settings stored in CMOS RAM in the RTC (for example, the date and time) may be wrong. -
Page 41: Product Regulatory Compliance
URL: http://channel.intel.com/go/serverbuilder If you do not have access to Intel’s Web address, please contact your local Intel representative. Server chassis - (base chassis is provided with power supply and fans) UL listed. Server board - you must use an Intel server board—UL recognized. -
Page 42: Table 28. Product Safety & Electromagnetic (Emc) Compliance
Environmental and Regulatory Specifications Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR The following table references Server Chassis Compliance and markings that may appear on the product. Markings below are typical markings however, may vary or be different based on how certification is obtained. -
Page 43: Electromagnetic Compatibility Notices
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Environmental and Regulatory Specifications and SR1530CLR/SR1530HCLR/SR1530HCLSR Compliance Regional Compliance Reference Compliance Reference Marking Example Description Korea RRL Certification MIC Notice No. 1997-41 (EMC) & 1997-42 (EMI) 인증번호: CPU-Model Name (A) Russia GOST-R Certification GOST R 29216-91 (Emissions) -
Page 44: Fcc Verification Statement
Environmental and Regulatory Specifications Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. The customer is responsible for ensuring compliance of the modified product. -
Page 45: Bsmi (Taiwan)
English translation of the notice above: 1. Type of Equipment (Model Name): On License and Product 2. Certification No.: On RRL certificate. Obtain certificate from local Intel representative 3. Name of Certification Recipient: Intel Corporation 4. Date of Manufacturer: Refer to date code on product 5. -
Page 46: Product Ecology Compliance
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Product Ecology Compliance Intel has a system in place to restrict the use of banned substances in accordance with world wide product ecology regulatory requirements. The following is Intel’s product ecology compliance criteria. Compliance Regional... - Page 47 German Green Dot Applied to Retail Packaging Only for Boxed Boards Intel Internal All materials, parts and subassemblies must not Specification contain restricted materials as defined in Intel’s Environmental Product Content Specification of None Required Suppliers and Outsourced Manufacturers – http://supplier.intel.com/ehs/environmental.htm International ISO11469 - Plastic parts weighing >25gm are...
-
Page 48: Other Markings
Environmental and Regulatory Specifications Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Other Markings Compliance Compliance Reference Marking Compliance Reference Description Example Stand-by Power 60950 Safety Requirement Applied to product is stand-by power switch is used. English: Multiple Power Cords 60950 Safety Requirement... -
Page 49: Appendix A: Integration And Usage Tips
Appendix A: Integration and Usage Tips and SR1530CLR/SR1530HCLR/SR1530HCLSR Appendix A: Integration and Usage Tips ® This section provides a list of useful information that is unique to the Intel Server Systems SR1530CL/SR1530HCL/SR1530HCLS and should be kept in mind while integrating and server system. -
Page 50: Appendix B: Post Code Diagnostic Led Decoder
Appendix B: POST Code Diagnostic LED Decoder Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Appendix B: POST Code Diagnostic LED Decoder During the system boot process, BIOS executes a number of platform configuration processes, each of which is assigned a specific hex POST code number. As each configuration routine is started, BIOS will display the given POST code to the POST Code Diagnostic LEDs found on the back edge of the server board. -
Page 51: Table 30. Diagnostic Led Post Code Decoder
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Appendix B: POST Code Diagnostic LED Decoder and SR1530CLR/SR1530HCLR/SR1530HCLSR Table 30. Diagnostic LED POST Code Decoder Diagnostic LED Decoder Description Checkpoint G=Green, R=Red, A=Amber Host Processor 0x10h Power-on initialization of the host processor (bootstrap processor) 0x11h... - Page 52 Appendix B: POST Code Diagnostic LED Decoder Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Diagnostic LED Decoder Description Checkpoint G=Green, R=Red, A=Amber Keyboard (PS2 or USB) 0x90h Resetting the keyboard 0x91h Disabling the keyboard 0x92h Detecting the presence of the keyboard...
- Page 53 Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Appendix B: POST Code Diagnostic LED Decoder and SR1530CLR/SR1530HCLR/SR1530HCLSR Diagnostic LED Decoder Description Checkpoint G=Green, R=Red, A=Amber 0xE1h Reserved for initialization module use (PEIM) 0xE3h Reserved for initialization module use (PEIM) Driver Execution Environment (DXE) Core...
-
Page 54: Appendix C: Post Error Beep Codes
The BMC may generate beep codes upon detection of failure conditions. Beep codes are sounded each time the problem is discovered, such as on each power-up attempt, but are not ® sounded continuously. Codes that are common across all Intel Server Boards and systems ®... -
Page 55: Glossary
Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS Glossary and SR1530CLR/SR1530HCLR/SR1530HCLSR Glossary Word/Acronym Definition Australian Communication Authority ANSI American National Standards Institute Baseboard Management Controller CMOS Complementary Metal Oxide Silicon DC-to-DC Emergency Management Port Front Panel Fault Resilient Boot Field Replaceable Unit Liquid Crystal Display... -
Page 56: Reference Documents
Reference Documents Intel® Server Systems SR1530CL/SR1530HCL/SR1530HCS and SR1530CLR/SR1530HCLR/SR1530HCLSR Reference Documents See the following documents for additional information: ® Intel Server Board S5000VCL Technical Product Specification ® Intel S5000 Series Chipsets Server Board Family Data Sheet ® Intel Server Board S5000VCL Tested Hardware and OS List ®...
