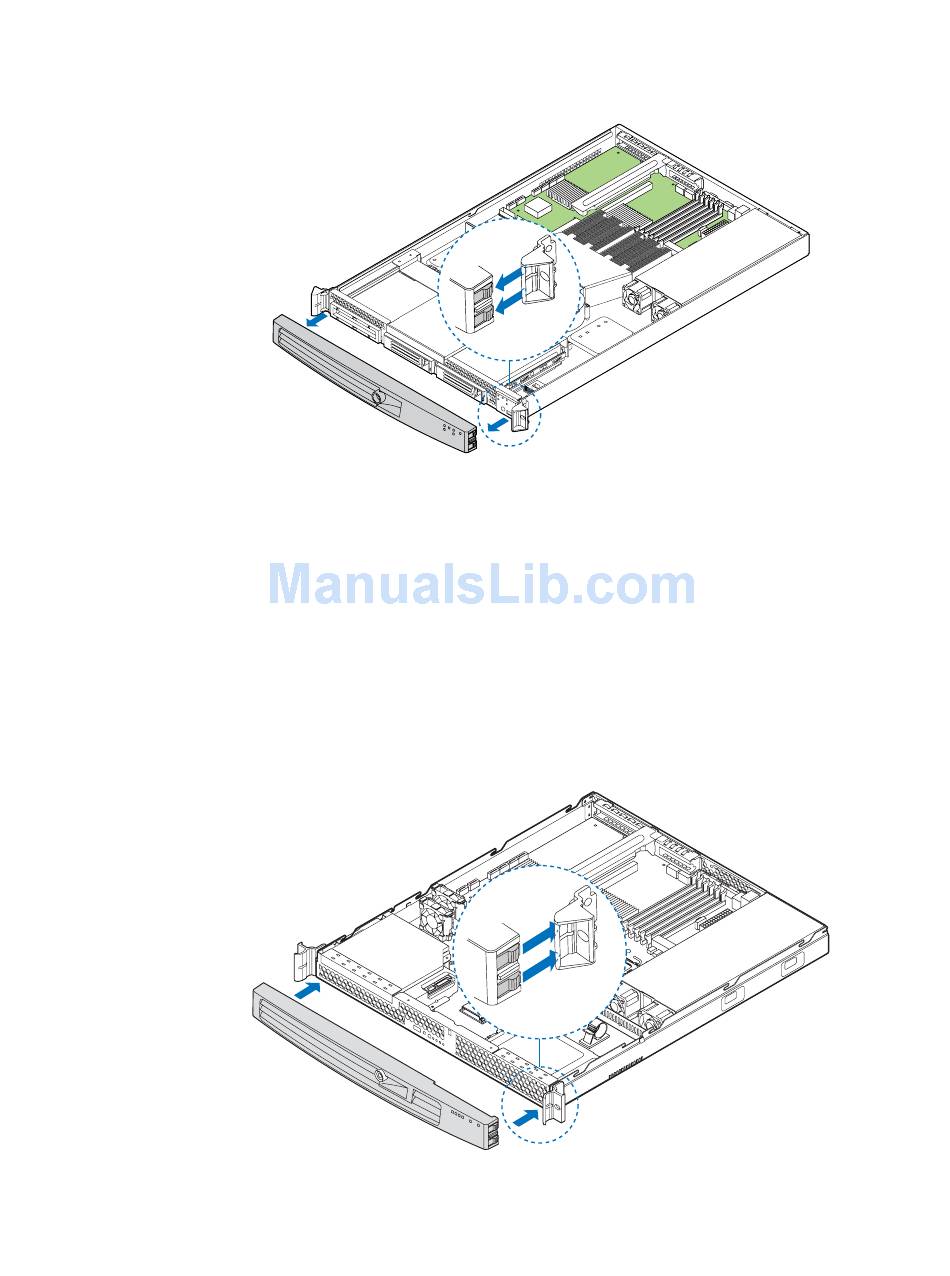

Figure 17. Removing the Front Bezel (SR1530HCL/SR1530HCLS and

Installing the Front Bezel

The front bezel is optional.
1. At each end of the bezel, line up the center notch on the bezel with the center guide
on the rack handles.
2. Push the bezel onto the front of the server system until it clicks into place.
3. Lock the bezel.
Server System User Guide
SR1530HCLR/SR1530HCLSR)

Figure 18. Installing the Front Bezel (SR1530CL/SR1530CLR)

AF001613
AF001056
27
