System Rear

The NIC LEDs at the right and left of each NIC provide the following information.
LED
Left
Right
6
A
A. AC Power Connector
B. Mouse Socket
C. PCI Express* Slot
D. Full-height PCI-X Slot
E. Keyboard Socket

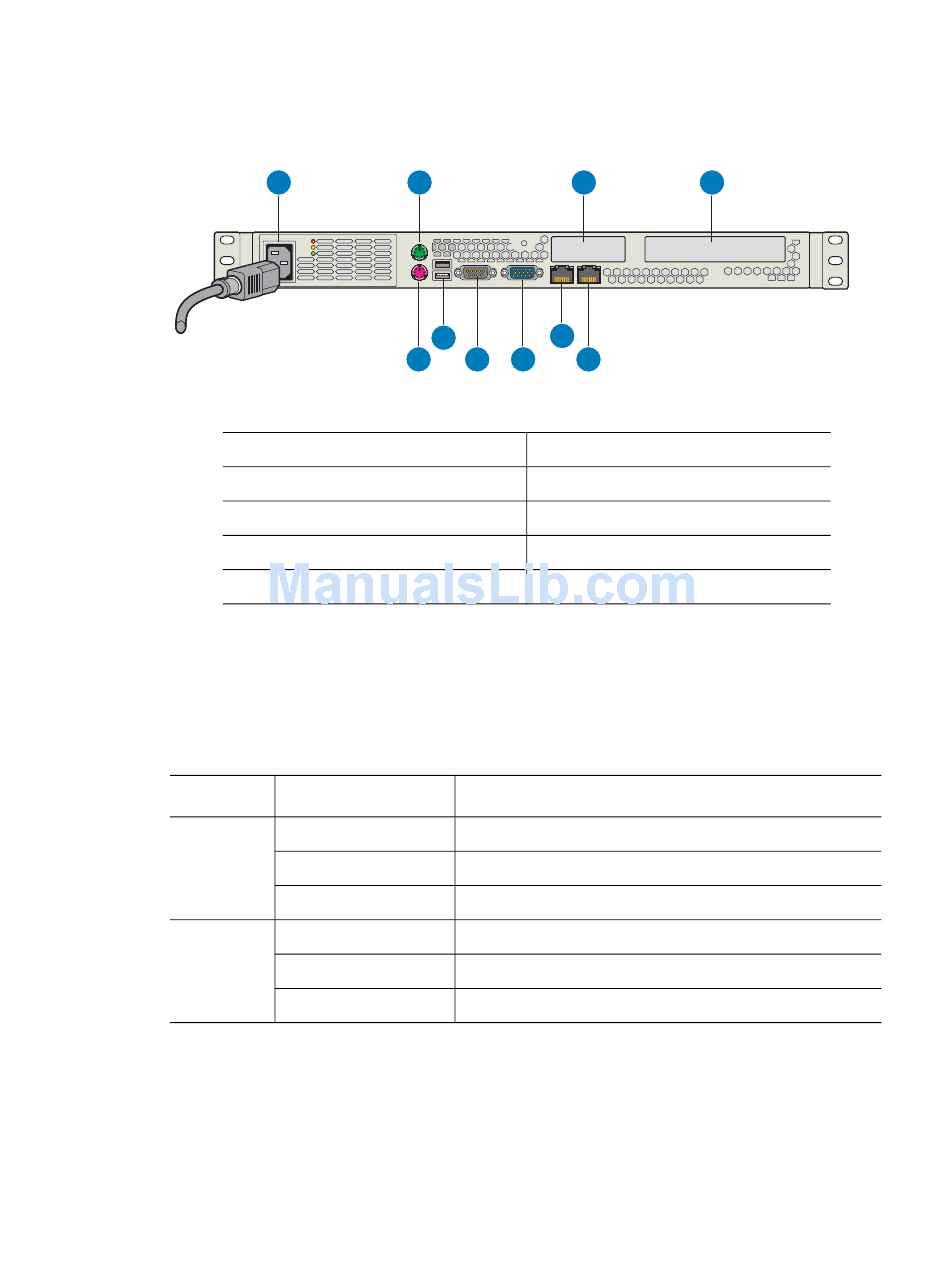

Figure 5. Back Panel Connectors

Table 2. NIC LED Descriptions

LED State
Off
Solid Amber
Blinking Amber
Off
Solid Amber
Solid Green
B C
F I
E G H J
F. USB 0-1
G. Serial Port A
H. Video
I. NIC 1 (10/100/1000 Mb)
J. NIC 2 (10/100/1000 Mb)
No network connection
Network connection in place
Transmit/receive activity
10 Mbps connection (if left LED is on or blinking)
100 Mbps connection
1000 Mbps connection
D
AF001183
Description
Server System User Guide
