5. Make sure the clips at both ends of the DIMM socket(s) are pushed outward to the
open position. See letter "A" in
6. Holding the DIMM by the edges, remove it from its anti-static package.
7. Position the DIMM above the socket. Align the notch on the bottom edge of the
DIMM with the key in the DIMM socket. See letter "B" in the figure.
8. Insert the bottom edge of the DIMM into the socket. See letter "C" in the figure.
9. When the DIMM is correctly positioned, push down on the top edge of the DIMM
until the retaining clips snap into place.
10. Make sure the clips are firmly in place. See letter "D" in the figure.
11. Install the server system cover. For instructions, see
Cover" on page
36
C
D
A

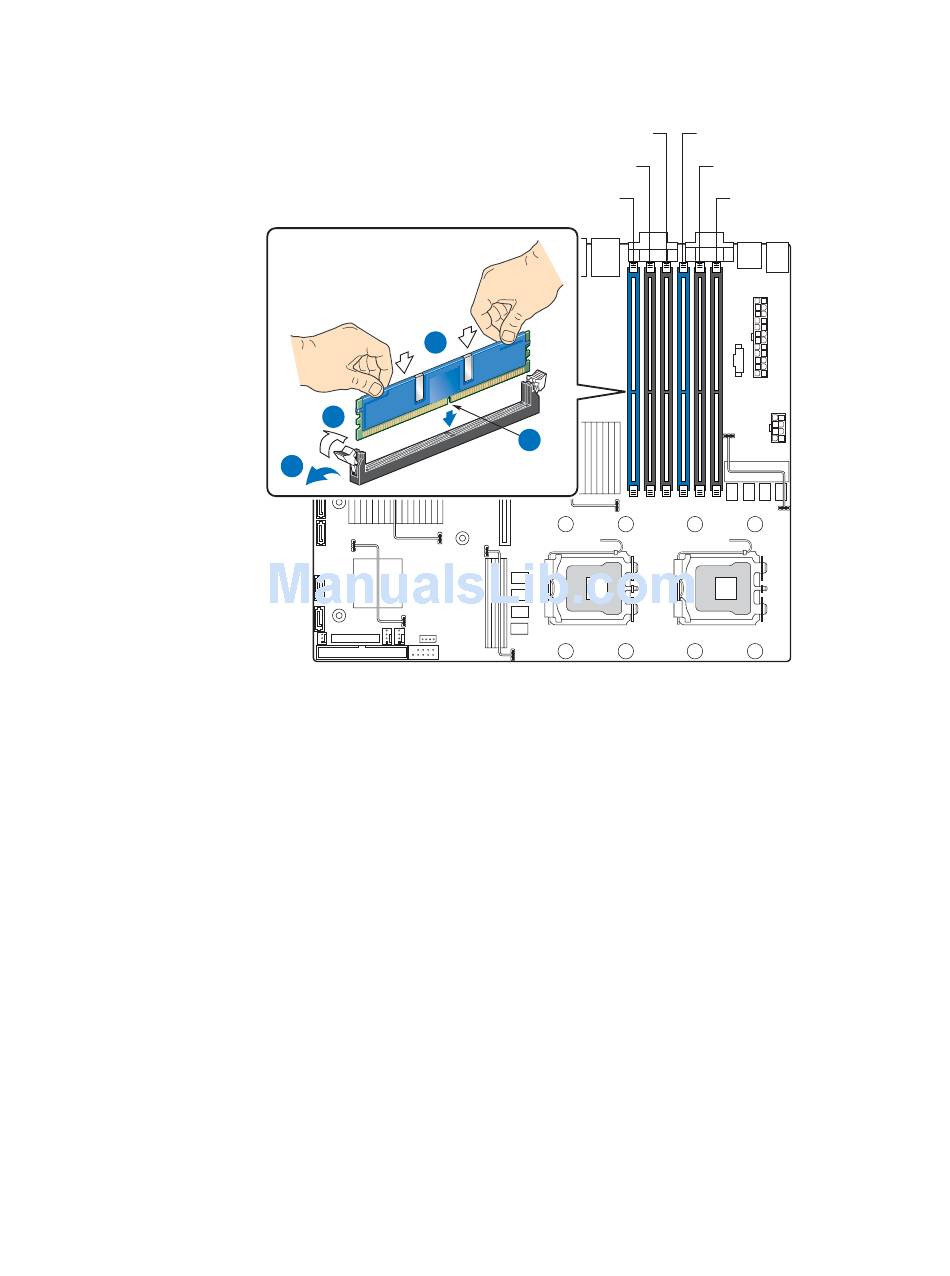

Figure 28. Installing the Memory

30.
DIMM A3
Socket
DIMM A2
Socket
DIMM A1
Socket
B
Figure 28.
"Installing the Server System
DIMM B1
Socket
DIMM B2
Socket
DIMM B3
Socket
AF000648
Server System User Guide
