Page 1 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS User Guide A Guide for Technically Qualified Assemblers of Intel® Identified Subassemblies/Products Intel Order Number D68456-003...
Page 2 Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for any other application in which the failure of the Intel product could create a situation where personal injury or death may occur.
Page 3: Safety Information
Safety Information Important Safety Instructions Read all caution and safety statements in this document before performing any of the instructions. See also Intel Server Boards and Server Chassis Safety Information on the ® Intel Server Deployment Toolkit 2.0 CD and/or at http://support.intel.com/support/...
Page 4 重要安全指导在执行任何指令之前，请阅读本文档中的所有注意事项及安全声明。和/或 http://support.intel.com/support/motherboards/server/sb/CS-010770.htm 上的 Intel Server Boards and Server Chassis Safety Information（《Intel 服务器主板与服务器机箱安全信息》）。 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 5: Warnings
Take care to grip with, but not squeeze, the pliers or other tool you use to remove a jumper, or you may bend or break the pins on the board. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 6 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 7: Preface
BIOS Setup screens, how to perform a BIOS update, and how to reset the password or ® CMOS. Information about the specific BIOS settings and screens is available in the Intel Server Board S5000VCL Technical Product Specification. See “Server System References”...
Page 8: Product Contents
Product Contents ® ® The Intel Server System SR1530CL / SR1530HCL / SR1530HCLS ships with the Intel Server Board S5000VCL. ® Intel Server System Contents ® Your Intel Server System SR1530CL / SR1530HCL / SR1530HCLS ships with the following items: ®...
Page 9: Server System References
Found in the product box Accessories or other Intel Spares and Configuration Guide server products Found at: available from your Intel field representative or on the Server Configurator Tool at http://indigo.intel.com/ serverconfiguratortool/default.aspx Hardware (peripheral Tested HardwareOperating Systems List...
Page 10 Use this Document or Software Software ® For software to manage Intel System Management ® your Intel server Found at: http://support.intel.com/support/motherboards/server/ S5000VCL/ For diagnostics test Diagnostics software Found at: http://support.intel.com/support/motherboards/server/ S5000VCL/ ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 11: Table Of Contents
Upgrading the BIOS ......................19 Preparing for the Upgrade ...................19 Upgrading the BIOS ....................20 Clearing the Password ......................21 Clearing the CMOS ......................22 Forcing a BMC Update ......................23 Chapter 3: Hardware Installations and Upgrades ..........25 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 12 Installing the Processor ....................36 Installing the Heat Sink ....................39 Removing the Heat Sink and Processor ..............40 Installing and Removing a Hard Drive (SR1530CL) ............40 Installing a Hard Disk Drive (SR1530CL) ..............41 Removing a Hard Disk Drive (SR1530CL) ..............44 Installing and Removing a Hot-Swap SAS/SATA Drive (SR1530HCL/SR1530HCLS) ..
Page 13 Replacing the Power Supply (SR1530HCL/SR1530HCLS) ..........76 Replacing the Front Panel Board (SR1530CL) ..............81 Replacing the Front Panel Board (SR1530HCL) ..............83 Replacing a System Fan ......................86 Replacing the System Fans (SR1530CL) ..............86 Replacing a System Fan (SR1530HCL/SR1530HCLS) ..........89 Replacing the PCI Cooling Fan (SR1530CL) ..............91 Installing and Removing the Rack Handles .................93...
Page 14 Sélection d’un emplacement ..................142 Pratiques de manipulation de l’équipement .............. 143 Alimentation et avertissements en matiére d’électricité ..........143 Avertissements sur le cordon d’alimentation ............. 144 Avertissements sur l’accés au systéme ..............144 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 15 CNCA (CCC-China) ....................161 Regulated Specified Components ................161 Restriction of Hazardous Substances (RoHS) Compliance ..........162 End-of-Life / Product Recycling ..................162 Appendix G: Warranty .................... 163 Limited Warranty for Intel® Chassis Subassembly Products ..........163 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 16 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 17 List of Tables ® Table 1. Intel Server System SR1530CL / SR1530HCL / SR1530HCLS Feature Summary ..2 Table 2. NIC LED Descriptions ....................6 Table 3. Setup Menu Key Use ....................18 Table 4. Power Supply Output Capability ................100 Table 5. System Environmental Specifications ..............101 Table 6.
Page 18 ® xviii Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 19: List Of Figures
Figure 39. Connecting Hard Drive Power and Data Cables (SR1530CL)....... 43 Figure 40. Removing Drive Carrier from the Server System (SR1530CL)......44 Figure 41. Install Drive Assemby into the Server System (SR1530CL) ........45 Figure 42. Locating Drive Positions (SR1530HCL/SR1530HCLS) ......... 46 ®...
Page 20 Figure 45. Installing Drive Assembly into Server System (SR1530HCL/SR1530HCLS) ..48 Figure 46. Lifting PCI Cooling Fan from Mounting Pegs (SR1530CL)........50 Figure 47. Removing the Knockout in Bezel for Optical Drive Opening (SR1530CL) .... 50 Figure 48. Attaching the Interposer Board (SR1530CL) ............51 Figure 49.
Page 21 Figure 91. Removing System Fan from Server System (SR1530HCL/SR1530HCLS)... 90 Figure 92. Installing System Fan in Server System (SR1530HCL/SR1530HCLS) ....91 Figure 93. Disconnecting the PCI Cooling Fan (SR1530CL) ..........92 Figure 94. Removing the PCI Cooling Fan (SR1530CL)............92 Figure 95.
Page 22 ® xxii Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 23: Chapter 1: Server System Features

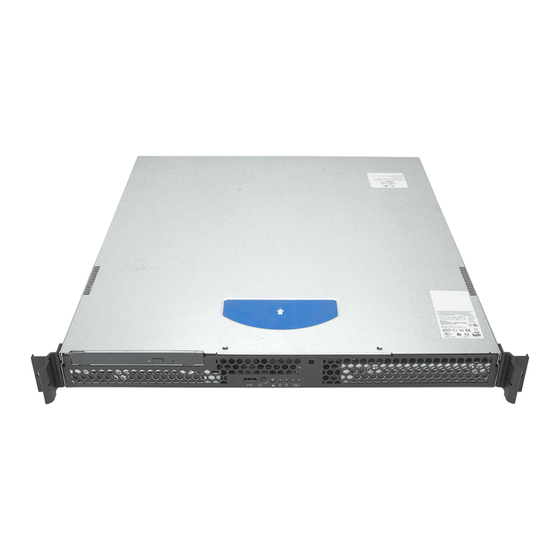

Figure 1. Intel® Server System SR1530CL Figure 2. Intel® Server System SR1530HCL / SR1530HCLS ® Intel...
Page 24 Table 1 summarizes the features of the server system. ® Table 1. Intel Server System SR1530CL / SR1530HCL / SR1530HCLS Feature Summary Feature Description • Dimensions (SR1530CL) 1.69 inches high (4.29 centimeters) • 17 inches wide (43.18 centimeters) • 20 inches deep (50.80 centimeters) •...
Page 25 ® Table 1. Intel Server System SR1530CL / SR1530HCL / SR1530HCLS Feature Summary Feature Description • Expansion Capabilities Supports one full-height PCI-X card and one low-profile PCI-E card • Hard Drives ATA-100 support: one IDE channel • SATA support •...
Page 26: Chassis Component Identification
Quick Reference Label provided on the inside of the chassis cover to assist in identifying components. Front Control Panel (SR1530CL) The front control panel of the Intel® Server System SR1530CL includes the following buttons and LEDs. AF001182...
Page 27: Front Control Panel (Sr1530Hcl/Sr1530Hcls)
Front Control Panel (SR1530HCL/SR1530HCLS) The front control panel of the Intel® Server System SR1530HCL / SR1530HCLS includes the following buttons and LEDs. AF001610 NIC1 LED Hard Disk Drive Activity LED NIC2 LED USB Port System Power LED Power Button System Status LED Figure 4.
Page 28: System Rear
Solid Amber Network connection in place Blinking Amber Transmit/receive activity Right 10 Mbps connection (if left LED is on or blinking) Solid Amber 100 Mbps connection Solid Green 1000 Mbps connection ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 29: Peripheral Devices
AF001184 Slimline Optical Drive Bay Hard Disk Drive Bay HDD0 (located under the slimline optical drive bay) Hard Disk Drive Bay HDD1 Figure 6. Optional Peripherals (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 30: Figure 7. Optional Peripherals (Sr1530Hcl/Sr1530Hcls)
AF001611 Slimline Optical Drive Bay (CD/DVD) Hard Disk Drive Bay (3) Figure 7. Optional Peripherals (SR1530HCL/SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 31: Hard Disk Drives
An IDE device can be connected to the standard IDE connector located near the SATA ports. The Intel® Server System SR1530HCLS provides two SATA and four SAS ports as well as one IDE connection. The two SATA and four SAS ports are located near the front left side of the server board.
Page 32: Internal Components
System Fans (two) Processor Air Duct Hard Drive Brackets (two) PCI Add-in Card Bracket Control Panel System Memory DIMM Sockets Slimline Optical Drive Bay Power Supply Figure 8. Chassis Components (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 33: Figure 9. Chassis Components (Sr1530Hcl/Sr1530Hcls)
Slimline Optical Drive Bay Power Supply PCI Cooling Baffle Control Panel Board System Fans (2) Control Panel Processor Air Duct Hard Disk Drives (3) PCI Add-in Card Bracket Figure 9. Chassis Components (SR1530HCL/SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 34: Figure 10. Server Board Connector And Component Locations
PCI Fan CMOS Battery Signal Connector Processor Power SATA 0 SGPIO SAS Connector DIMM Sockets SATA 1 Processor 1 Socket Front Control Panel Header Figure 10. Server Board Connector and Component Locations ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 35: Configuration Jumpers
1 - 2 Disable Force Update: These pins should be jumpered for normal operation. 2 - 3 Enable Force Update: Jumpering these pins forces a BMC update. Figure 11. Configuration Jumpers ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 36: Raid Support
Embedded Server RAID Technology II feature provides RAID modes 0, 1, and 10. ® Notes: For assistance in navigating through the F2 BIOS Setup utility, see the Intel Server Board S5000VCL Technical Product Specification. For information on setting up RAID, see the RAID Software Guide that is included on the ®...
Page 37: Hardware Requirements
For a list of qualified components, see the links under “Server System References” on page ix. Processor One or two Dual-Core Intel® Xeon® processors 5100 or 5300 (80-W versions only) series. For a complete list of supported processors, see http://support.intel.com/support/ motherboards/s5000vsl/sb/CS-023399.htm.
Page 38 In determining your memory requirements, the need for memory sparing or memory mirroring must be considered. For a complete list of supported memory DIMMs, see the links under “Server System References” on page ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 39: Chapter 2: Server Utilities
These parameters can be changed if the user has adequate security rights. If a value cannot be changed for any reason, the feature's value field is inaccessible. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 40: Table 3. Setup Menu Key Use
If "No" is selected and the <Enter> key is pressed, or if the <Esc> key is pressed, the user is returned to where they were before <F9> was pressed without affecting any existing field values. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 41: Upgrading The Bios
2. Write down the current settings in the BIOS Setup program. Note: Do not skip step 2. You will need these settings to configure your server at the end of the procedure. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 42: Upgrading The Bios
Note: You may encounter a CMOS Checksum error or other problem after reboot. If this happens, shut down the system and boot it again. CMOS checksum errors require that you enter Setup, check your settings, save your settings, and exit Setup. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 43: Clearing The Password
7. Return the Password Clear jumper to the Password Clear Protect position, covering pins 1 and 2. 8. Close the server chassis. 9. Reconnect the AC power and power up the server. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 44: Clearing The Cmos
6. When the system begins beeping, power it down and disconnect the AC power. 7. Return the jumper to the Normal Operation location, covering pins 1 and 2. 8. Close the server chassis. 9. Reconnect the AC power and power up the system. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 45: Forcing A Bmc Update
6. When the system begins beeping, power it down and disconnect the AC power. 7. Return the jumper to the Disabled location, covering pins 1 and 2. 8. Close the server chassis. 9. Reconnect the AC power and power up the system. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 46 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 47: Chapter 3: Hardware Installations And Upgrades
Note: Some components in the Intel® Server System SR1530HCL / SR1530HCLS are hot swappable and, where applicable, will be noted as such in the instructions. Note: Most of the illustrations in this chaper show the Intel® Server System SR1530CL with an optional optical drive installed. The instructions for removing and installing components are the same for the Intel®...
Page 48: Removing The Front Bezel
Use the steps below if your system includes a front bezel. 1. Unlock the bezel. 2. Disconnect any cables attached to the control panel. 3. Pull the bezel from the server system. AF001057 Figure 16. Removing the Front Bezel (SR1530CL) AF001613 Figure 17. Removing the Front Bezel (SR1530HCL/SR1530HCLS) ® Intel...
Page 49: Installing The Front Bezel
2. Push the bezel onto the front of the server system until it clicks into place. 3. Lock the bezel. AF001056 Figure 18. Installing the Front Bezel (SR1530CL) AF001614 Figure 19. Installing the Front Bezel (SR1530HCL/SR1530HCLS) ®...
Page 50: Removing And Installing The Server Cover
2. Turn off all peripheral devices connected to the server. Turn off the server. 3. Disconnect the AC power cord. 4. (SR1530CL) Remove the two screws at the front of the chassis (see letter “A” in the following figure). Loosen the screw at the rear of the chassis (see letter "B").
Page 51: Installing The Server System Cover
Information” on page iii. 2. (SR1530CL) Place the cover over the server system so that the side edges of the cover sit just inside the server system sidewalls. Slide the cover forward (see letter “A” in the following figure). Tighten the screw at the rear of the server (see letter “B”).
Page 52: Figure 22. Installing The Server System Cover (Sr1530Cl)
AF000972 Figure 22. Installing the Server System Cover (SR1530CL) 3. (SR1530HCL/SR1530HCLS) Place the cover over the server system so that the side edges of the cover sit just inside the server system sidewalls. Slide the cover forward (see letter “A” in the following figure). Install the four screws at the front of the server (see letter “B”).
Page 53: Removing And Installing The Processor Air Duct
4. Lift the processor air duct from its location behind the two system blower fans. See Figure 24 for the Intel® Server System SR1530CL. See Figure 25 for the Intel® Server System SR1530HCL / SR1530HCLS. AF000973 Figure 24. Removing the Processor Air Duct (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 54: Installing The Processor Air Duct
Use caution not to pinch or disengage cables that may be near or under the air duct. Figure 26 for the Intel® Server System SR1530CL. See Figure 27 for the Intel®...
Page 55: Figure 26. Installing The Processor Air Duct (Sr1530Cl)
AF000974 Figure 26. Installing the Processor Air Duct (SR1530CL) AF001618 Figure 27. Installing the Processor Air Duct (SR1530HCL/SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 56: Installing And Removing Memory
2. Power down the server and unplug all peripheral devices and the AC power cable. 3. Remove the server system cover. For instructions, see “Removing the Server System Cover” on page 4. Locate the DIMM sockets. See Figure ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 57: Removing Dimms
Cover” on page Removing DIMMs To remove a DIMM, follow these steps: 1. Observe the safety and ESD precautions at the beginning of this book. See “Safety Information” on page iii. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 58: Installing Or Replacing The Processor
3. Remove the server system cover. For instructions, see “Removing the Server System Cover” on page 4. Locate the processor socket and raise the socket handle completely. AF000650 Figure 29. Lifting the Processor Socket Handle ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 59: Figure 30. Opening The Load Plate
Caution: Do not touch the socket pins; they are very sensitive and easily damaged. 6. Remove the processor from the packaging box and remove the protective shipping cover. AF000653 Figure 31. Removing the Shipping Cover ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 60: Figure 32. Installing The Processor
Figure 33. Removing the Protective Socket Cover 9. Lower the CPU load plate. 10. Lower the socket lever. 11. Install the heat sink. For instructions, see “Installing the Heat Sink” on page ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 61: Installing The Heat Sink
5. Reinstall and reconnect any parts you removed or disconnected to reach the processor sockets. 6. Install the server system cover. For instructions, see “Installing the Server System Cover” on page ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 62: Removing The Heat Sink And Processor
The drives do not need to be installed in order; HDD1 can be installed before HDD0. Note: The server system does not support all hard drives. See “Server System References” on page ix“ for an Internet link to a list of supported hardware. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 63: Installing A Hard Disk Drive (Sr1530Cl)
Save this screw. You will use it later to reinstall the drive assembly. Lift the drive carrier from the chassis (see letter “B”). AF001050 Figure 36. Removing Drive Carrier from Server System (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 64: Figure 37. Installing Drive Into Drive Carrier (Sr1530Cl)
(see letter “B”). Note: The assembly that contains the optical drive bracket must be installed at the left side of the system. AF000976 Figure 38. Install Drive Assemby into Server System (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 65: Figure 39. Connecting Hard Drive Power And Data Cables (Sr1530Cl)
— If a drive is installed in the HDD0 carrier, attach the middle connector on the daisy chain power cable to the HDD0 power connector. See letter “C” in Figure AF001178 Figure 39. Connecting Hard Drive Power and Data Cables (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 66: Removing A Hard Disk Drive (Sr1530Cl)
Lift the drive carrier from the chassis (see letter “B”). AF001050 Figure 40. Removing Drive Carrier from the Server System (SR1530CL) 7. Remove the four screws that attach the hard drive to the drive carrier. Lift the drive from the carrier. Store the drive in an anti-static bag.
Page 67: Installing And Removing A Hot-Swap Sas/Sata Drive (Sr1530Hcl/Sr1530Hcls)
Note: The assembly that contains the optical drive bracket must be installed at the left side of the system. AF000976 Figure 41. Install Drive Assemby into the Server System (SR1530CL) 11. Install the server system cover. For instructions, see “Installing the Server System Cover”...
Page 68: Installing A Hot-Swap Sas/Sata Drive (Sr1530Hcl/Sr1530Hcls)
Figure 42. Locating Drive Positions (SR1530HCL/SR1530HCLS) 3. Open the latch at the front of the hard drive carrier. See letter “A” in the following figure. AF001620 Figure 43. Removing the Drive Carrier (SR1530HCL/SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 69: Figure 44. Installing Drive Into Drive Carrier (Sr1530Hcl/Sr1530Hcls)
Align the holes in the drive to the holes in the drive carrier and attach the drive to the carrier with the screws that were formerly attached to the plastic retention device (see letter “B”). AF001621 Figure 44. Installing Drive into Drive Carrier (SR1530HCL/SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 70: Removing A Hot-Swap Sas/Sata Drive (Sr1530Hcl/Sr1530Hcls)
6. Insert the screws that held the drive in the carrier into the screw locations on the carrier for future use. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 71: Installing Or Removing A Slimline Optical Drive
AC power cord from the system or wall outlet. Note: Slimline optical drive installations and removal instructions differ between the Intel® Server System SR1530HCL and Intel® Server System SR1530HCL / SR1530HCLS. Be sure to follow the instructions that correspond to your server system.
Page 72: Figure 46. Lifting Pci Cooling Fan From Mounting Pegs (Sr1530Cl)
See letter “A” in the following figure. AF000988 Figure 46. Lifting PCI Cooling Fan from Mounting Pegs (SR1530CL) 6. First time installation only: Remove the knockout in the bezel that corresponds to the opening for the optical drive by rocking it back and forth (see letter “A” in the following figure).
Page 73: Figure 48. Attaching The Interposer Board (Sr1530Cl)
Figure 48. Attaching the Interposer Board (SR1530CL) 8. Attach the brackets to the optical drive using four screws as shown in the following figure. AF000672 Figure 49. Attaching the Brackets to the Optical Drive (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 74: Figure 50. Installing The Optical Drive Into The Server System (Sr1530Cl)
“D”). AF000980 Figure 50. Installing the Optical Drive into the Server System (SR1530CL) 10. Install the PCI cooling fan onto the mounting pegs that are located behind the optical drive bay. The fan label should face the rear of the system. See letter “A” in the following figure.
Page 75: Installing A Slimline Optical Drive (Sr1530Hcl/Sr1530Hcls)
5. Attach the interposer board to the rear of the CD-ROM or DVD-ROM drive, using two screws, as shown by the following figure. AF001186 Figure 52. Attaching the Interposer Board (SR1530HCL/SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 76: Figure 53. Attaching The Bracket To The Optical Drive (Sr1530Hcl/Sr1530Hcls)
8. Slide the optical drive in through the front of the chassis (see letter “A in the following figure). Secure the optical drive to the chassis with one screw (see letter “B”). AF001636 Figure 54. Installing the Optical Drive into the System (SR1530HCL/ SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 77: Figure 55. Routing Data And Power Cables To Optical Drive (Sr1530Hcl/Sr1530Hcls)
Cover” on page 11. Optional: Install the front bezel. For instructions, see “Installing the Front Bezel” on page 12. Plug all peripheral devices and the AC power cable into the server. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 78: Removing A Slimline Optical Drive (Sr1530Cl)
It is not necessary to disconnect the fan cable. See letter “A” in the following figure. AF000988 Figure 56. Lifting PCI Cooling Fan from Mounting Pegs (SR1530CL) 6. Disconnect the optical drive power and data cables. See letters “A” and “B” in the following figure.
Page 79: Figure 57. Removing The Optical Drive From The Server System (Sr1530Cl)
AF000670 Figure 57. Removing the Optical Drive from the Server System (SR1530CL) 9. Remove the four screws that attach the brackets to the optical drive, as shown in the following figure. Save these screws for future use. AF000672 Figure 58. Removing the Brackets from the Optical Drive Bracket (SR1530CL) ®...
Page 80: Figure 59. Removing The Interposer Board From The Optical Drive (Sr1530Cl)
The fan label should face the rear of the system. See letter “A” in the following figure. AF000989 Figure 60. Installing the PCI Cooling Fan onto Mounting Pegs (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 81: Removing A Slimline Optical Drive (Sr1530Hcl/Sr1530Hcls)
(see letter “C”). Save this screw. You will reinstall it later. Slide the optical drive out through the front of the system (see letter “D”). AF000960 Figure 61. Removing Optical Drive from Server System (SR1530HCL/ SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 82: Figure 62. Removing Bracket From Optical Drive Bracket (Sr1530Hcl/Sr1530Hcls)
Figure 63. Removing Interposer Board fromOptical Drive (SR1530HCL/ SR1530HCLS) 8. If you are installing a replacement optical drive, skip the rest of these steps and instead continue with "Installing a Slimline Optical Drive (SR1530HCL/ SR1530HCLS)", step 5. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 83: Installing And Removing The Pci Riser Assembly
5. Lift the riser assembly up to remove it. Use caution to gently ease the riser card from the add-in card slot so you do not damage the slot or the riser card. AF000982 Figure 64. Removing PCI Riser Assembly from the Server System ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 84: Installing The Pci Riser Assembly
4. Connect any cables to add-in cards that require them. See your add-in card documentation for information and add-in card requirements. 5. Install the server system cover. For instructions, see “Installing the Server System Cover” on page ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 85: Installing Or Replacing A Pci Riser Card
Assembly” on page 6. Use two screws to attach the PCI riser card to the PCI riser assembly. See the following figure. AF001062 Figure 66. Installing Riser Card onto Riser Assembly ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 86: Replacing A Pci Riser Card
8. Install the replacement PCI riser card, if desired. For instructions, see “Installing a PCI Riser Card” on page 9. Install the PCI riser assembly into the server system. For instructions, see “Installing the PCI Riser Assembly” on page ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 87: Installing Or Removing A Pci Add-In Card
7. Insert the add-in card into the socket in the riser assembly. Push the add-in card into place firmly until it seats in the riser card connector, but use caution so you do not twist or bend the card. See letter “C” in the figure. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 88: Removing A Pci Add-In Card
See letter “B” in the figure. 7. Install a filler panel over the opening at the rear of the riser assembly. See letter “C” in the figure. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 89: Installing And Removing The Server Board
4. Remove the processor air duct. For instructions, see “Removing the Processor Air Duct” on page 5. Remove the PCI riser assembly. For instructions, see “Removing the PCI Riser Assembly” on page ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 90: Figure 70. Installing The Server Board
Duct” on page 13. Install the server system cover. For instructions, see “Installing the Server System Cover” on page 14. Plug all peripheral devices and the AC power cable into the server. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 91: Removing The Server Board
9. Remove the six screws from the server board. See letter “A” in the following figure. Lift the server board from the server system (see letter “B”). AF000986 Figure 71. Removing the Server Board ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 92: Replacing The Cmos Battery
Kassera använt batteri enligt fabrikantens instruktion. Varoitus: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 93: Replacing The Power Supply (Sr1530Cl)
The power supply can be replaced if it fails or if one of the fans that is integrated into it fails. To replace the power supply, use the following instructions. 1. Observe the safety and ESD precautions at the beginning of this book. See “Safety Information” on page iii. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 94: Figure 73. Disconnecting Power Cables (Sr1530Cl)
✧ Optical drive power, if optical drive is installed ✧ HDD0 power connector, if a hard drive is installed here ✧ HDD1 power connector, if a hard drive is installed here AF000998 Figure 73. Disconnecting Power Cables (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 95: Figure 74. Removing Power Supply From The Server System (Sr1530Cl)
(see letter “B”). Slide the power supply forward (see letter “C”) and then lift it from the chassis. AF000994 Figure 74. Removing Power Supply from the Server System (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 96: Figure 75. Installing Power Supply Into The Server System (Sr1530Cl)
(see letter “B”). Insert the screw you removed in previously to attach the power supply to the server system (see letter “C”). AF000995 Figure 75. Installing Power Supply into the Server System (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 97: Figure 76. Connecting Power Cables (Sr1530Cl)
Figure 76. Connecting Power Cables (SR1530CL) 8. Install the server system cover. For instructions, see “Installing the Server System Cover” on page 9. Plug all peripheral devices and the AC power cable into the server. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 98: Replacing The Power Supply (Sr1530Hcl/Sr1530Hcls)
— A: Aux power signal — B: 2x12 main power connector — C: 2x4 power connector — D: Daisy-chain cable to optical drive power, if optical drive is installed. — E: 2x4 backplane power connector ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 99: Figure 77. Disconnecting Power Cables (Sr1530Hcl/Sr1530Hcls)
AF001653 Figure 77. Disconnecting Power Cables (SR1530HCL/SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 100: Figure 78. Removing Power Supply From Server System (Sr1530Hcl/Sr1530Hcls)
(see letter “B”). Slide the power supply forward (see letter “C”) and then lift it from the chassis. AF001650 Figure 78. Removing Power Supply from Server System (SR1530HCL/ SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 101: Figure 79. Installing Power Supply Into Server System (Sr1530Hcl/Sr1530Hcls)
Set the front of the power supply down pushing the power supply back so it fits behind the foot at the bottom of the chassis (see letter “B”). AF001651 Figure 79. Installing Power Supply into Server System (SR1530HCL/ SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 102: Figure 80. Connecting Power Cables (Sr1530Hcl/Sr1530Hcls)
Duct” on page 10. Install the server system cover. For instructions, see “Installing the Server System Cover” on page 11. Plug all peripheral devices and the AC power cable into the server. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 103: Replacing The Front Panel Board (Sr1530Cl)
“A” in the following figure. Save these screws. You will re-install them later. 7. Lift the front panel board from the system. See letter “B”. AF000996 Figure 81. Removing Front Panel Board from Server System (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 104: Figure 82. Installing Front Panel Board In Server System (Sr1530Cl)
10. Connect the USB cable and the front panel cable. 11. Connect the HDD1 power and data cables. AF000997 Figure 82. Installing Front Panel Board in Server System (SR1530CL) 12. Install the server system cover. For instructions, see “Installing the Server System Cover”...
Page 105: Replacing The Front Panel Board (Sr1530Hcl)
6. Slide the existing front panel board back (see letter “B”) and lift the front panel board from the system (see letter “C”). AF001591 Figure 83. Removing Front Panel Board from Server System (SR1530HCL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 106: Figure 84. Removing Light Pipes From Front Panel Board
8. Install the light pipes on the replacement front panel board. Note: It may be easier to install the replacement front panel board first, and then install the light pipes. AF001646 Figure 85. Installing Light Pipes on Replacement Front Panel Board ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 107: Figure 86. Installing Front Panel Board Into Server System (Sr1530Hcl)
11. Connect the front panel cable. 12. Install the server system cover. For instructions, see “Installing the Server System Cover” on page 13. Plug all peripheral devices and the AC power cable into the server. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 108: Replacing A System Fan
Duct” on page 31 5. Disconnect the two system fan cables from the server board. See letters “A” and “B” in the following figure. AF001180 Figure 87. Disconnecting System Fan Cables (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 109: Figure 88. Removing Fan Bracket With System Fans From Server System (Sr1530Cl)
Lift the fan bracket from the server. Lift the bracket at an angle, front of the bracket first, to clear the hard disk drive brackets (see letter “C”). AF000990 Figure 88. Removing Fan Bracket with System Fans from Server System (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 110: Figure 89. Removing System Fan From Fan Bracket (Sr1530Cl)
Save these screws. You will reinstall them later. See letter “A” in the following figure). Lift the fan from the bracket (see letter “B”). AF000992 Figure 89. Removing System Fan from Fan Bracket (SR1530CL) 8. Install the replacement fan onto the fan bracket, using the two screws you removed previously.
Page 111: Replacing A System Fan (Sr1530Hcl/Sr1530Hcls)
12. Connect the fan cables to the server board. See letters “A” and “B” in the following figure. AF001180 Figure 90. Connecting System Fan Cables (SR1530CL) 13. Install the processor air duct. For instructions. see “Installing the Processor Air Duct” on page 14.
Page 112: Figure 91. Removing System Fan From Server System (Sr1530Hcl/Sr1530Hcls)
(system fan #1) first because the fan cable for system fan #2 runs underneath system fan #1. AF001648 Figure 91. Removing System Fan from Server System (SR1530HCL/ SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 113: Replacing The Pci Cooling Fan (Sr1530Cl)
9. Plug all peripheral devices and the AC power cable into the server. Replacing the PCI Cooling Fan (SR1530CL) Note: These instructions only apply to the Intel® Server System SR1530CL. The Intel® Server System SR1530HCL / SR1530HCLS does not have a PCI cooling fan; it has a PCI cooling baffle.
Page 114: Figure 93. Disconnecting The Pci Cooling Fan (Sr1530Cl)
4. Disconnect the fan cable from the server board. See letter “A” in the following figure. AF001181 Figure 93. Disconnecting the PCI Cooling Fan (SR1530CL) 5. Lift the PCI cooling fan from the system. AF000988 Figure 94. Removing the PCI Cooling Fan (SR1530CL) 6.
Page 115: Installing And Removing The Rack Handles
5. Repeat step 4 on the opposite side of the server. 6. Optional: Install the front bezel, if desired. For instructions, see “Installing the Front Bezel” on page 7. Plug all peripheral devices and the AC power cable into the server. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 116: Removing The Rack Handles
5. Repeat step 4 on the opposite side of the server. 6. Optional: Install the front bezel, if desired. For instructions, see “Installing the Front Bezel” on page 7. Plug all peripheral devices and the AC power cable into the server. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 117: Appendix A: Technical Reference
For example, the PCI cooling fan cable is labeled with the letter “E” both where it connects to the server board and at the PCI cooling fan itself. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 118: Power Cable Routing (Sr1530Cl)
To make the diagram above more clear, where the connectors attach to components, the labels “D1”, “D2”, and “D3” are used. The end at the power supply itself is labeled “D”. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 119: Power Cable Routing (Sr1530Hcl/Sr1530Hcls)
Main power System fan #1 Processor power System fan #2 Backplane power Auxillary power signal Drive power daisy cable: – F3: end connector to optical drive Figure 98. Power Cable Routing (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 120: Data Cable Routing (Sr1530Cl)
Data Cable Routing (SR1530CL) Optical Device HDD 0 HDD 1 AF001207 SATA 1 to HDD1 Front control panel SATA 0 to HDD0 Front panel USB Figure 99. Data Cable Routing (SR1530CL) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 121: Data Cable Routing (Sr1530Hcl/Sr1530Hcls)
Data Cable Routing (SR1530HCL/SR1530HCLS) AF001652 Front Panel USB HDD0 to SATA0/SAS0 Front Control Panel HDD1 to SATA1/SAS1 Optical Slimline Drive HDD1 to SATA2/SAS2 Figure 100. Data Cable Routing (SR1530HCL/SR1530HCLS) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 122: 400-W Single Power Supply Input Voltages
Warning: Do not exceed a combined power output of 90 Watts for the +5 V and +3.3 V outputs. Exceeding a combined 90 Watts will overload the power subsystem and may cause the power supplies to overheat and malfunction. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 123: System Environmental Specifications
7 Bels in sound power for a typical office ambient temperature (65-75 °F). Your selection of peripherals may change the noise level. Electrostatic Tested to 15 kilovolts (kV); no component damage. discharge (ESD) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 124 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 125: Appendix B: Troubleshooting
In addition to the server firmware and files, also update any drivers used for components you have installed in your system, such as video drivers, network drivers, and SATA drivers. Intel provides a package called the "Platform Confidence Test" that may help with your diagnostics. See “Server System References” on page ix for a link to this software.
Page 126: Problems Following Initial System Installation
Are all integrated components from the tested components lists? Check the tested memory, and chassis lists, as well as the supported hardware and operating system list. See “Server System References” on page ix for links to the tested component lists. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 127: Hardware Diagnostic Testing
Once the system boots up, the operating system prompt appears on the screen. The prompt varies according to the operating system. If the operating system prompt does not appear, “No Characters Appear on Screen” on page 107. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 128: Specific Problems And Corrective Actions
Remove the processor(s) and re-seat them. • Make sure the chassis standoffs are installed only below mounting holes. Misplaced standoffs can contact the pins on the bottom of the server board and cause a short. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 129: No Characters Appear On Screen
5. If you do not receive a beep code and characters do not appear, the video display monitor or video controller may have failed. Contact your service representative or authorized dealer for help. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 130: Characters Are Distorted Or Incorrect
Are all relevant switches and jumpers on the drive set correctly? • Is the drive properly configured? • Is the drive activity light always on? If so, the signal cable may be plugged in incorrectly. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 131: Cd-Rom Drive Or Dvd-Rom Drive Activity Light Does Not Light
Make sure the cable is connected to the port from the onboard network controller. • Make sure your BIOS is current. See “Server System References” on page ix for a link to the current version. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 132: System Boots When Installing Pci Card
If you are running the software from a CD-ROM or DVD-ROM, try a different disk. • Make sure the correct device drivers installed. If the problems persist, contact the software vendor's customer service representative. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 133: Problems With Application Software That Ran Correctly Earlier
Devices are not Recognized under Device Manager (Microsoft Windows* Operating System) ® The Microsoft Windows* operating systems do not include all of the drivers for the Intel chipsets, onboard NICs, and other components. See “Server System References” on page ix for a link to the current drivers and chipset files.
Page 134: Bootable Cd-Rom Disk Is Not Detected
LED Information ® The Intel Server System SR1530CL / SR1530HCL / SR1530HCLS includes LEDs that can aid in troubleshooting your system. A table of these LEDs with a description of their use is listed below. Table 7. LED Information...
Page 135: Table 8. System Status Led Color And Blink Codes
The IERR signal has been asserted. • Processor 1 is missing. • Temperature critical threshold crossed (CPU ThermTrip, memory TempHi) • Power fault • Processor configuration error, such as a processor stepping mismatch) ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 136: Bios Post Beep Codes
Replace or reseat the system video add-in card. If on-board video is being used, the server board may be faulty. ® In addition to the beep codes above, additional beep codes are provided if an Intel ® Remote Management Module is installed. The Intel Remote Management Module provides the following additional beep codes.
Page 137: Appendix C: Getting Help
Telephone All calls are billed per incident, levied in local currency at the applicable credit card exchange rate plus applicable taxes. (Intel reserves the right to change the pricing for telephone support at any time without notice.) Before calling, fill out an Intel® Server Issue Report Form. An online / automatic submission version of this form is available at http://support.intel.com/support/...
Page 138: Latin America
Easter Island....Contact AT&T USA at 800 800 311. Once connected, dial 800 843 4481 Mainland and Juan .. Contact AT&T USA at 800 225 288. Once connected, dial 800 843 4481 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 139 Paraguay ... 001 916 377 0114 Peru ... 001 916 377 0114 Uruguay..001 916 377 0114 Venezuela... Contact AT&T USA at 0 800 2255 288. Once connected, dial 800 843 4481 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 140 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 141: Appendix D: Installation / Assembly Safety Instructions
5. Provide some electrostatic discharge (ESD) protection by wearing an antistatic wrist strap attached to chassis ground of the system-any unpainted metal surface-when handling components. 6. Do not operate the system with the chassis covers removed. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 142 • Provided with a properly grounded wall outlet. • Provided with sufficient space to access the power supply cord(s), because they serve as the product's main power disconnect. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 143: Deutsch
5. Tragen Sie ein geerdetes Antistatik Gelenkband, um elektrostatische Ladungen (ESD) über blanke Metallstellen bei der Handhabung der Komponenten zu vermeiden. 6. Schalten Sie das System niemals ohne ordnungsgemäß montiertes Gehäuse ein. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 144 Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen des Herstellers entsprechend. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 145: Français
Notez que le commutateur CC de mise sous tension /hors tension du panneau avant n'éteint pas l'alimentation CA du système. Pour mettre le système hors tension, vous devez débrancher chaque câble d'alimentation de sa prise. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 146 Le microprocesseur et le dissipateur de chaleur peuvent être chauds si le système a été sous tension. Faites également attention aux broches aiguës des cartes et aux bords tranchants du capot. Nous vous recommandons l'usage de gants de protection. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 147: Español
No intente modificar ni usar el cable de alimentación de corriente alterna, si no corresponde exactamente con el tipo requerido. El número de cables suministrados se corresponden con el número de fuentes de alimentación de corriente alterna que tenga el producto ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 148 4. Inserte el bloqueo de seguridad en el sistema y bloquéelo para impedir que pueda accederse al mismo sin autorización. 5. Conecte todos los cables externos y los cables de alimentación CA al sistema. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 149: Italiano
éstos hacen de medio principal de desconexión del sistema. Italiano Rivolgersi ad un tecnico specializzato per la riparazione dei componenti dell'alimentazione di questo prodotto. È possibile che il prodotto disponga di più fonti di alimentazione. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 150 4. Inserire e chiudere a chiave il lucchetto sul retro del sistema per impedire l'accesso non autorizzato al sistema. 5. Ricollegare tutti i cavi esterni e le prolunghe AC del sistema. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 151 • "Dotata di una presa a muro correttamente installata. • "Dotata di spazio sufficiente ad accedere ai cavi di alimentazione, i quali rappresentano il mezzo principale di scollegamento del sistema. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 152 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 153: Appendix E: Safety Information
To reduce the risk of bodily injury, electrical shock, fire, and equipment damage, read this document and observe all warnings and precautions in ® this guide before installing or maintaining your Intel server product. In the event of a conflict between the information in this document and information provided with the product or on the website for a particular product, the product documentation takes precedence.
Page 154: Intended Application Uses
Conform to local occupational health and safety requirements when moving and lifting equipment. • Use mechanical assistance or other suitable assistance when moving and lifting equipment. • To reduce the weight for easier handling, remove any easily detachable components. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 155: Power And Electrical Warnings
The power supply cord(s) is/are the main disconnect device to AC power. The socket outlet(s) must be near the equipment and readily accessible for disconnection. • The power supply cord(s) must be plugged into socket-outlet(s) that is /are provided with a suitable earth ground. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 156: System Access Warnings
To avoid risk of potential electric shock, a proper safety ground must be implemented for the rack and each piece of equipment installed in it. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 157: Electrostatic Discharge (Esd)
Caution: To avoid risk of radiation exposure and/or personal injury: • Do not open the enclosure of any laser peripheral or device • Laser peripherals or devices have are not user serviceable • Return to manufacturer for servicing ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 158: Deutsch
Weist auf potentielle Gefahr bei Nichtbeachtung der angezeigten Informationen hin. Weist auf die Gefahr eines Stromschlags hin, der bei Nichtbeachtung der Sicherheitshinweise zu schweren oder tödlichen Verletzungen führen kann. Weist auf Verbrennungsgefahr an heißen Bauteilen bzw. Oberflächen hin. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 159: Zielbenutzer Der Anwendung
Verwenden Sie mechanische oder andere geeignete Hilfsmittel zum Transportieren oder Anheben von Geräten. • Entfernen Sie alle Komponenten, die sich leicht abnehmen lassen, um das Gewicht zu reduzieren und die Handhabung zu erleichtern. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 160: Warnungen Zu Netzspannung Und Elektrizität
Typ entspricht. Jedes Netzteil im System muß über ein eigenes Netzkabel angeschlossen werden. Einige Netzteile von Intel Servern verwenden Nullleitersicherungen. Vorsicht ist geboten im Umgang mit Netzteilen, welche Nullleitersicherungen verwenden, um das Risiko eines elektrischen Schlages zu vermeiden Das Netzteil in diesem Produkt enthält keine Teile, die vom Benutzer gewartet werden...
Page 161: Warnhinweise Für Den Systemzugang
Gehen Sie bei der Installation von Geräten im Rack immer von unten nach oben vor, und bauen Sie das schwerste Gerät an der untersten Position im Rack ein. Ziehen Sie jeweils immer nur ein Gerät aus dem Rack heraus. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 162: Elektrostatische Entladungen (Esd)
Inbetriebnahme des Systems ohne Abdeckung kann zur Beschädigung von Systemkomponenten führen. So bringen Sie die Abdeckung wieder an: • Vergewissern Sie sich zunächst, daß Sie keine Werkzeuge oder Teile im Gehäuse vergessen haben. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 163: Français
® d’installer ou de mettre à jour votre produit serveur Intel En cas de conflit entre les informations fournies dans ce document et celles livrées avec le produit ou publiées sur le site Web pour un produit particulier, la documentation du produit prime.
Page 164: Domaines D'utilisation Prévus
Bien ventilé et à l’écart des sources de chaleur telles que la lumière directe du soleil et les radiateurs. • À l’écart des sources de vibration ou des chocs physiques. • Isolé des champs électromagnétiques importants produits par des appareils électriques. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 165: Pratiques De Manipulation De L'équipement
Vous devez les débrancher avant d’ouvrir le châssis, d’ajouter ou de supprimer un composant non connectable à chaud. Les alimentations de certains serveurs Intel sont munies de doubles fusibles pôle/neutre: veuillez observer les précautions d'usage afin d'éviter tout risque d'eléctrocution.
Page 166: Avertissements Sur Le Cordon D'alimentation
Déconnectez l’alimentation secteur en débranchant tous les cordons d’alimentation secteur du système ou de la prise murale. • Déconnectez l’ensemble des câbles et lignes de télécommunication qui sont connectés au système. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 167: Avertissements Sur Le Montage En Rack
étiqueté comme contrôlant toute l’unité, et pas uniquement le ou les serveurs. Pour éviter tout risque d’électrocution, le rack et chaque élément de l’équipement installé dans le rack doivent être correctement reliés à la terre. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 168: Décharges Électrostatiques (Esd)
à l’intérieur du système. • Vérifiez que les câbles, les cartes d’extension et les autres composants sont correctement installés. • Fixez les panneaux au châssis en suivant les instructions du produit. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 169: Périphériques Laser
Español Información de seguridad del servidor Este documento se aplica a las tarjetas de servidor de Intel®, las carcasas de servidor de Intel® (montaje en bastidor y en pedestal) y los dispositivos periféricos. Para reducir el riesgo de daños corporales, descargas eléctricas, fuego y en el equipo, lea este documento y preste atención a todos las advertencias y precauciones de esta guía antes de instalar o...
Page 170: Aplicaciones Y Usos Previstos
Provista de una toma de corriente alterna correctamente conectada a tierra. • Provista de espacio suficiente para acceder a los cables de la fuente de alimentación ya que constituyen la desconexión principal de la alimentación. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 171: Manipulacién Del Equipo
CA estén desenchufado antes de abrir la carcasa, agregar o extraer cualquier componente que no es de conexión en funcionamiento. Algunas fuentes de alimentación de electricidad de los servidores de Intel utilizan el polo neutral del fuselaje. Para evitar riesgos de choques electricos use precauciónes al trabajar con las fuentes de alimentación que utilizan el polo neutral de fuselaje.
Page 172: Advertencias El Acceso Al Sistema
Devuélvala al fabricante para repararla. • Apague el servidor y desconecte todos los cables de alimentación antes de agregar o reemplazar cualquier componente que no es de conexión en funcionamiento. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 173 Para que no llegue a tocar los componentes que estén calientes cuando esté realizando una instalación de conexión en funcionamiento, tenga cuidado al extraer o instalar los componentes de conexión en funcionamiento. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 174: Advertencias Sobre El Montaje En Bastidor
Sujételas sólo por los bordes. Una vez extraída la tarjeta de su envoltorio de protección o del servidor, colóquela con el lado de los componentes hacia arriba sobre una superficie con toma de tierra y sin carga estática. Utilice una ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 175: Otros Riesgos
• No abra la caja de ningún periférico o dispositivo láser • Los periféricos o dispositivos láser no pueden ser reparados por el usuario • Haga que el fabricante los repare ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 176 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 177: Appendix F: Regulatory And Compliance Information
(or higher) and operating at the same (or higher) speed as the microprocessor used on this server board. The final configuration of your end system product may require additional EMC compliance testing. For more information, please contact your local Intel representative.
Page 178: Product Emc Compliance - Class A Compliance
This server system has been tested and verified to comply with the following electromagnetic compatibility (EMC) regulations when installed in a compatible Intel® host system. For information on compatible host system(s) refer to Intel's Server Builder Web site or contact your local Intel representative.
Page 179: Certifications / Registrations / Declarations
Table 11. Product Regulatory Compliance Markings Regulatory Compliance Region Marking cULus Listing Marks USA/Canada GS Mark Germany CE Mark Europe FCC Marking (Class A) EMC Marking (Class A) Canada ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 180 C-Tick Mark Australia / New Zealand VCCI Marking (Class A) Japan BSMI Certification Taiwan Number & Class A Warning GOST R Marking Russia RRL MIC Mark Korea China Compulsory China Certification Mark ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 181: Electromagnetic Compatibility Notices
All cables used to connect to peripherals must be shielded and grounded. Operation with cables, connected to peripherals, that are not shielded and grounded may result in interference to radio and TV reception. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 182: Industry Canada (Ices-003)
Install and use the equipment according to the instruction manual. BSMI (Taiwan) The BSMI Certification Marking and EMC warning is located on the outside rear area of the product. ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...
Page 183: Korean Compliance (Rrl)
Updated product information for configurations can be found on the Intel Server Builder Web site at the following URL: http://channel.intel.com/go/serverbuilder If you do not have access to Intel's Web address, please contact your local Intel representative. •...
Page 184: Restriction Of Hazardous Substances (Rohs) Compliance
Restriction of Hazardous Substances (RoHS) Compliance Intel has a system in place to restrict the use of banned substances in accordance with the European Directive 2002/95/EC. Compliance is based on declaration that materials banned in the RoHS Directive are either (1) below all applicable substance threshold limits or (2) an approved/pending RoHS exemption applies.
Page 185: Appendix G: Warranty
"as is" unless specifically provided for otherwise in any software license accompanying the software. If any Product furnished by Intel which is the subject of this Limited Warranty fails during the warranty period for reasons covered by this Limited Warranty, Intel, at its option, will: •...
Page 186: Warranty Limitations And Exclusions
Limitations of Liability Intel's responsibility under this, or any other warranty, implied or expressed, is limited to repair, replacement, or refund, as set forth above. These remedies are the sole and exclusive remedies for any breach of warranty.
Page 187: Telephone Support
Telephone Support If you cannot find the information you need on Intel's World Wide Web site (http:// www.intel.com/), call your local distributor or an Intel Customer Support representative.
Page 188 ® Intel Server System SR1530CL / SR1530HCL / SR1530HCLS...

This manual is also suitable for:

Sr1530hcl Sr1530hcls

Intel SR1530CL User Manual

Safety Information

Preface

Chapter 1: Server System Features

Chapter 2: Server Utilities

Chapter 3: Hardware Installations and Upgrades

Appendix A: Technical Reference

Appendix B: Troubleshooting

Appendix C: Getting Help

Appendix D: Installation / Assembly Safety Instructions

Appendix E: Safety Information

Appendix F: Regulatory and Compliance Information

Quick Links

Related Manuals for Intel SR1530CL

Summary of Contents for Intel SR1530CL
