8. Connect the power supply cables to the server board and components.
— A: Aux power signal
— B: 2x12 main power connector
— C: 2x4 power connector
— D: Daisy-chain cable to optical drive power, if optical drive is installed. Use end
— E: 2x4 backplane connector
.

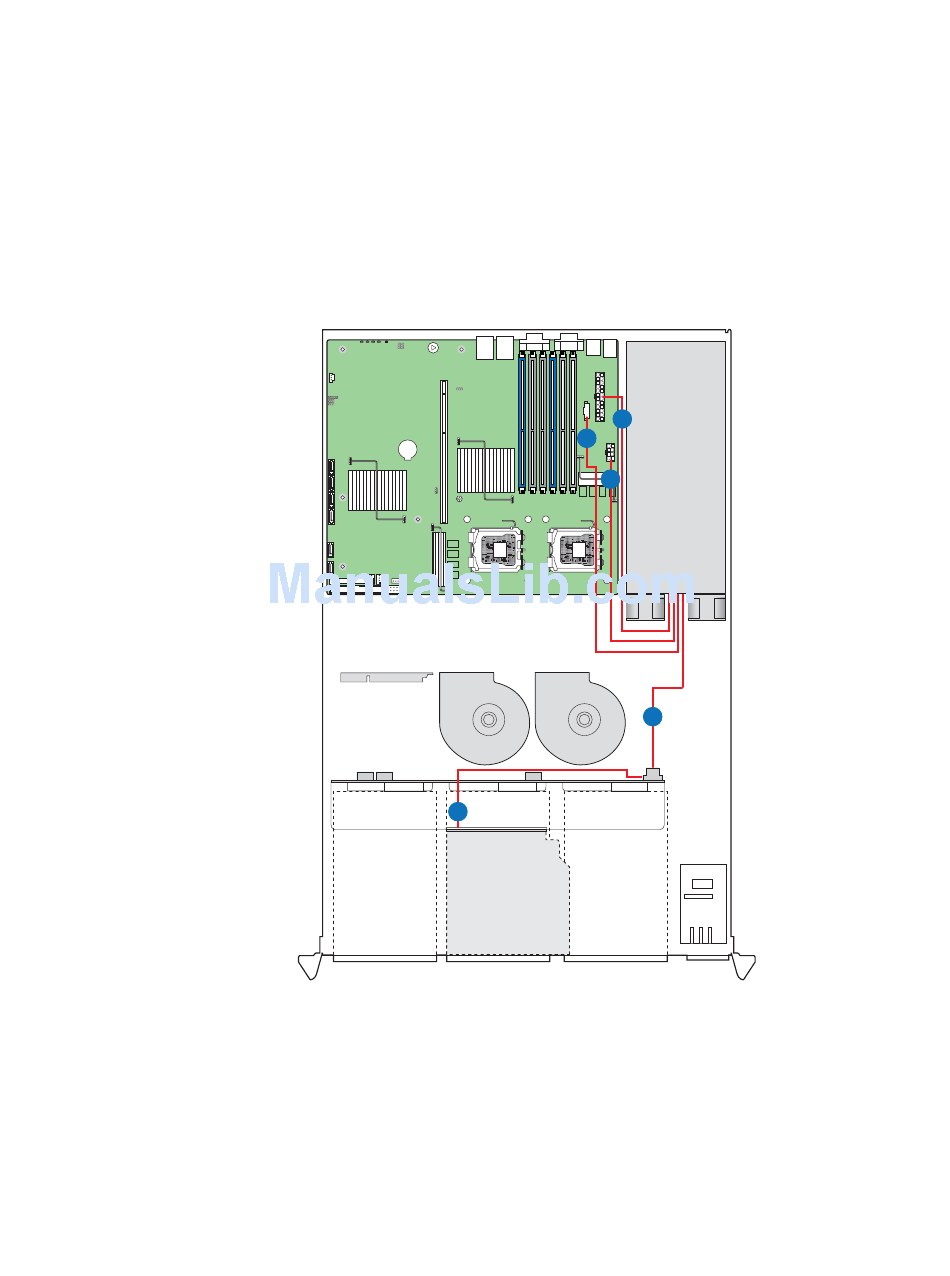

Figure 80. Connecting Power Cables (SR1530HCL/SR1530HCLS and
9. Install the processor air duct. For instructions, see
Duct" on page
10. Install the server system cover. For instructions, see
Cover" on page
11. Plug all peripheral devices and the AC power cable into the server.
82
connector on the cable.
SR1530HCLR/SR1530HCLSR)
