6. If you need to add or remove a PCI riser card, see
Riser Card" on page
7. If you need to add or remove a PCI add-in card, see
Add-in Card" on page
8. If you removed the PCI riser assembly for another procedure, continue with that
procedure.

Installing the PCI Riser Assembly

Note: For clarity, the figure in this series of instructions does not show an attached add-in card.
If you are installing an add-in card, do so before installing the PCI riser assembly into
your server system.
1. Lower the PCI riser assembly into place over the add-in card slot. See letter "A" in
the following figure.
2. Align the three hooks in the PCI riser assembly with the matching slots at the back
of the server system. See letters "B" and "C" in the figure.

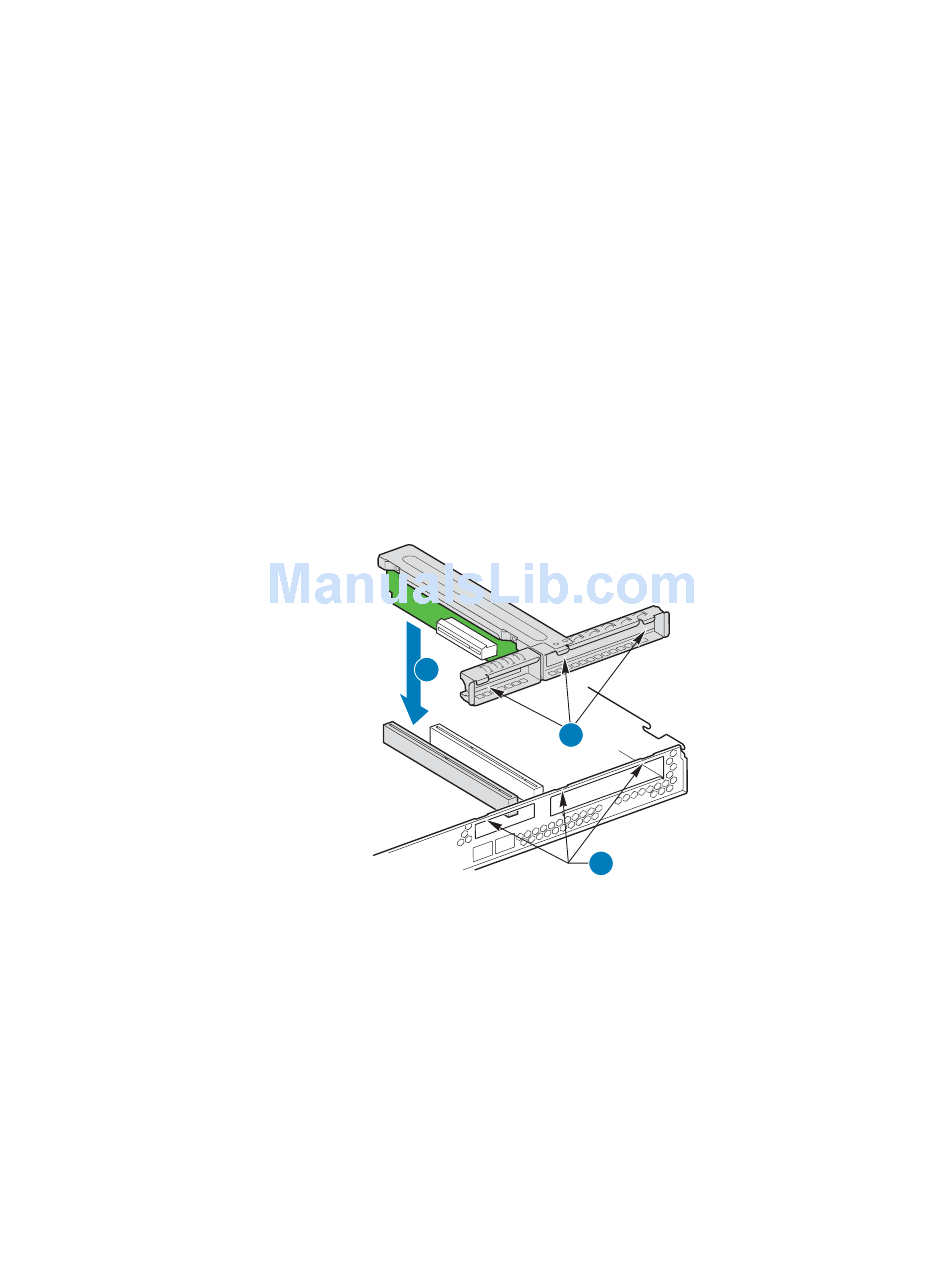

Figure 65. Installing PCI Riser Assembly into the Server System

3. Press down uniformly until the two hooks on the rear of the PCI riser assembly
engage the server system back panel slots. The riser cards will seat into the
matching sockets on the server board.
4. Connect any cables to add-in cards that require them. See your add-in card
documentation for information and add-in card requirements.
5. Install the server system cover. For instructions, see
Cover" on page
64
65.
67.
A
30.
"Installing or Replacing a PCI
"Installing or Removing a PCI
B
C
AF000985
"Installing the Server System
Server System User Guide
