Hardware Requirements

To avoid integration difficulties and possible board damage, your system must meet the
requirements outlined below. For a list of qualified components, see the links under
"Server System References" on page ix.

Processor

Support for one or two Dual-Core Intel
processors (80-W versions only). For a complete list of supported processors, see
support.intel.com/support/motherboards/s5000vsl/sb/CS-023399.htm.

Memory

The Intel
Server System SR1530CLR / SR1530HCLR / SR1530HCLSR provide six DIMM sockets
across two channels, Channel A and Channel B. Channel A consists of DIMM sockets A1,
A2, and A3. Channel B consists of DIMM sockets B1, B2, and B3. See the figure below
to locate the DIMM sockets.
Server System User Guide
®
Server System SR1530CL / SR1530HCL / SR1530HCLS and the Intel

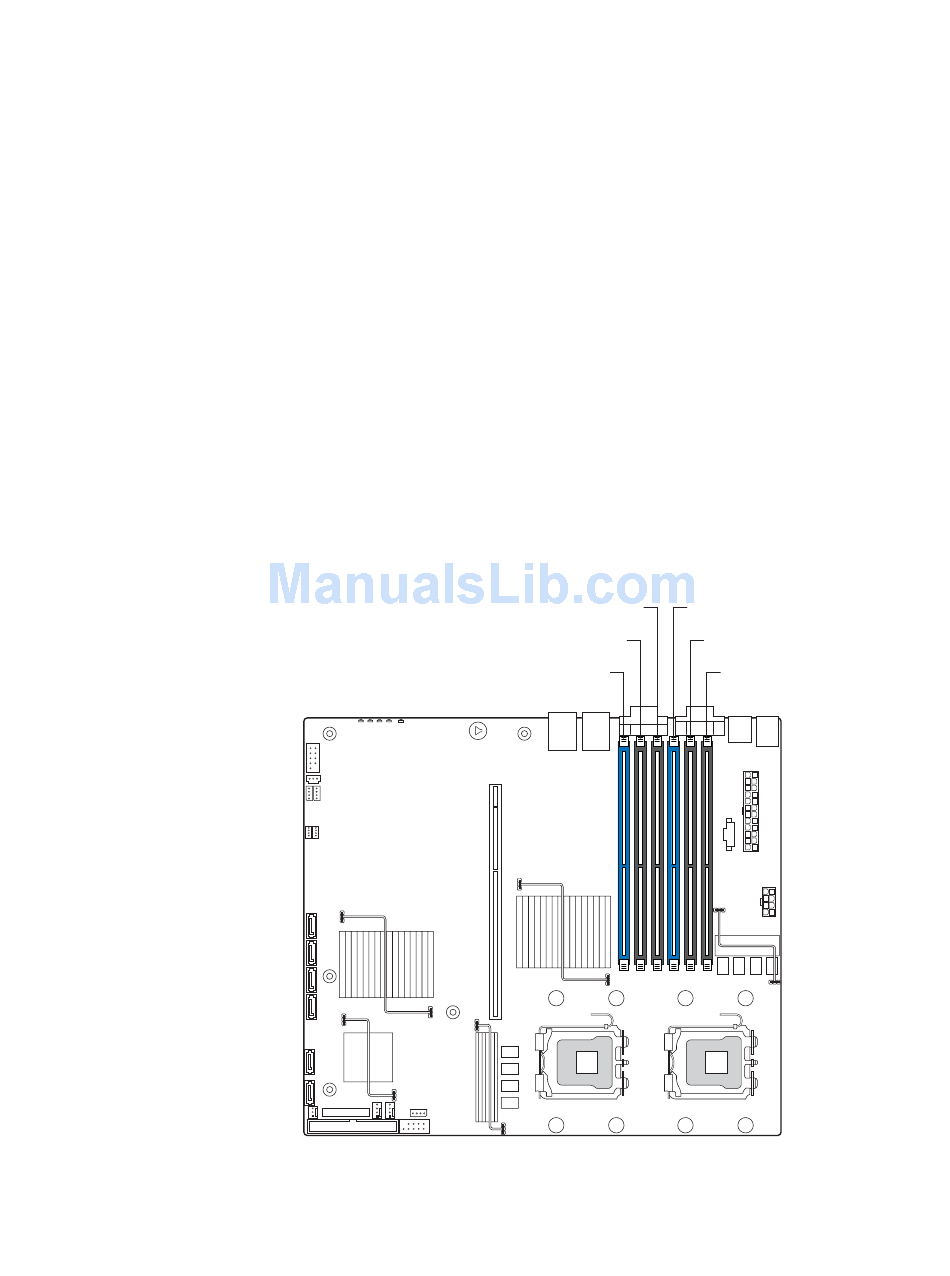

Figure 12. Identifying DIMM Sockets

® ®
Xeon processors, or Quad-Core Intel
DIMM A3
DIMM A2
DIMM A1
®
Xeon
http://
®
DIMM B1
DIMM B2
DIMM B3
AF001076
®
