Figure 79. Installing Power Supply Into Server System (Sr1530Hcl/Sr1530Hcls And Sr1530Hclr/Sr1530Hclsr) - Intel SR1530CL - Server System - 0 MB RAM User Manual

7. Insert the replacement power supply at an angle into the server system, sliding the
power connector side in first to fit it through the cut-out area at the rear of the
system (see letter "A" in the following figure).
Set the front of the power supply down pushing the power supply back so it fits
behind the foot at the bottom of the chassis (see letter "B").
A
B
AF001651

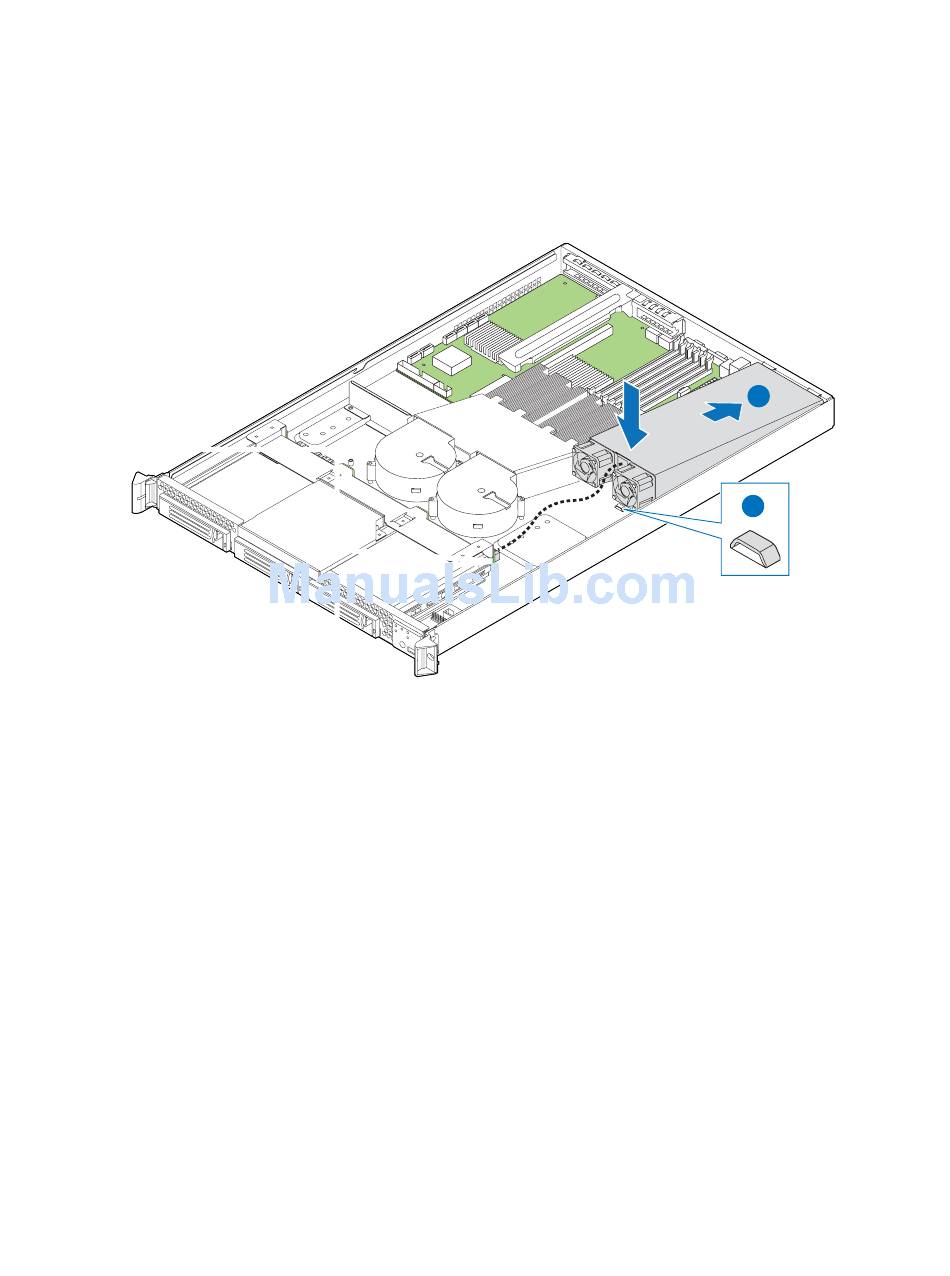

Figure 79. Installing Power Supply into Server System (SR1530HCL/
SR1530HCLS and SR1530HCLR/SR1530HCLSR)
Server System User Guide 81
