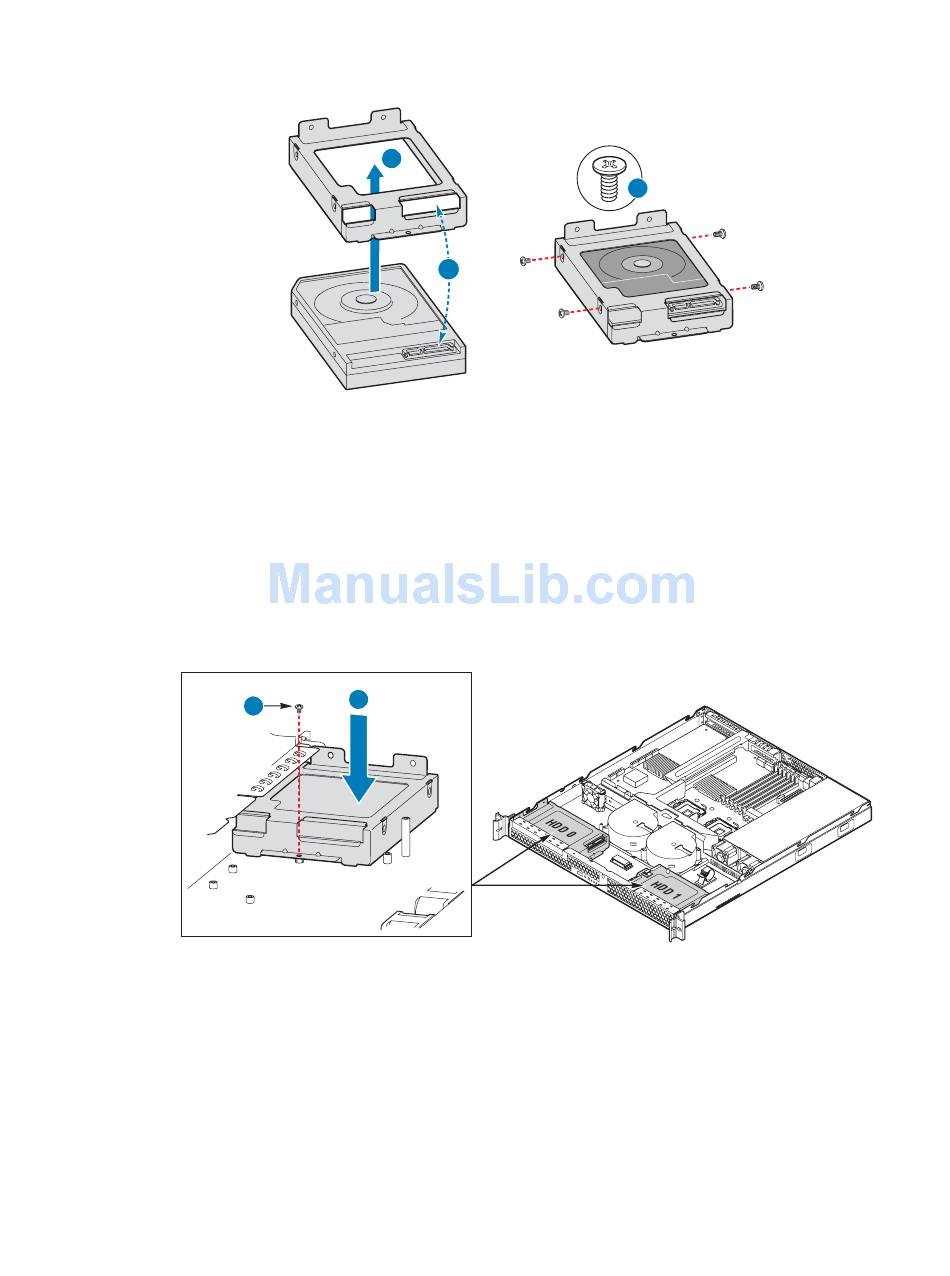

Figure 37. Installing Drive into Drive Carrier (SR1530CL/SR1530CLR)

8. Set the drive assembly into place in the chassis. See letter "A" in the following
figure.
9. Attach the drive assembly to the chassis with the screw that you removed
previously (see letter "B").
Note: The assembly that contains the optical drive bracket must be installed at the left side of the
system.
Figure 38. Install Drive Assemby into Server System (SR1530CL/
44
A
A
C
B
SR1530CLR)
C
AF000668
