AF000650

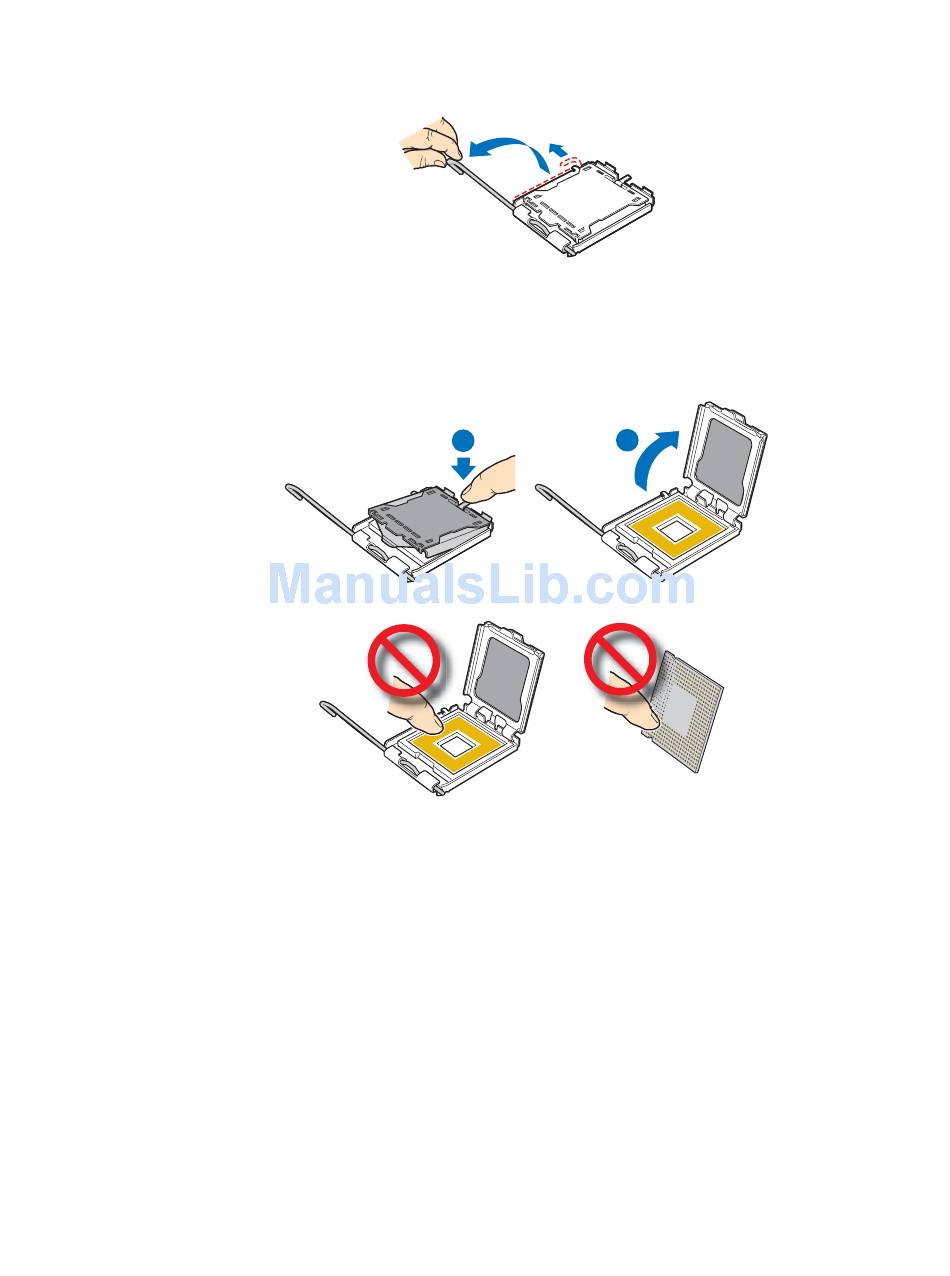

Figure 29. Lifting the Processor Socket Handle

5. Push the rear tab with your finger to slightly lift the front of the load plate. Raise the
load plate completely. Raise the CPU load plate.
A B
AF000651

Figure 30. Opening the Load Plate

Caution: Do not touch the socket pins; they are very sensitive and easily damaged.
38 Server System User Guide
