Replacing a System Blower

Caution: The system blowers are NOT hot-swappable. Before removing or replacing a system
blower, you must first take the server out of service, turn off all peripheral devices
connected to the system, turn off the system by pressing the power button, and unplug the
AC power cord from the system or wall outlet.
Note: The fans that are integrated into the power supply cannot be replaced separately. If one of
the fans in the power supply fails, the power supply must be replaced.
The system blowers at the front of the server system can be individually replaced if one of
them fails. If a fan in the power supply fails, the power supply must be replaced. Use the
following steps to replace a system blower or the PCI cooling fan.

Replacing the System Blowers (SR1530CL/SR1530CLR)

1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System
4. Remove the processor air duct. For instructions, see
Duct" on page 32
5. Disconnect the two system blower cables from the server board. See letters "A" and
"B" in the following figure.

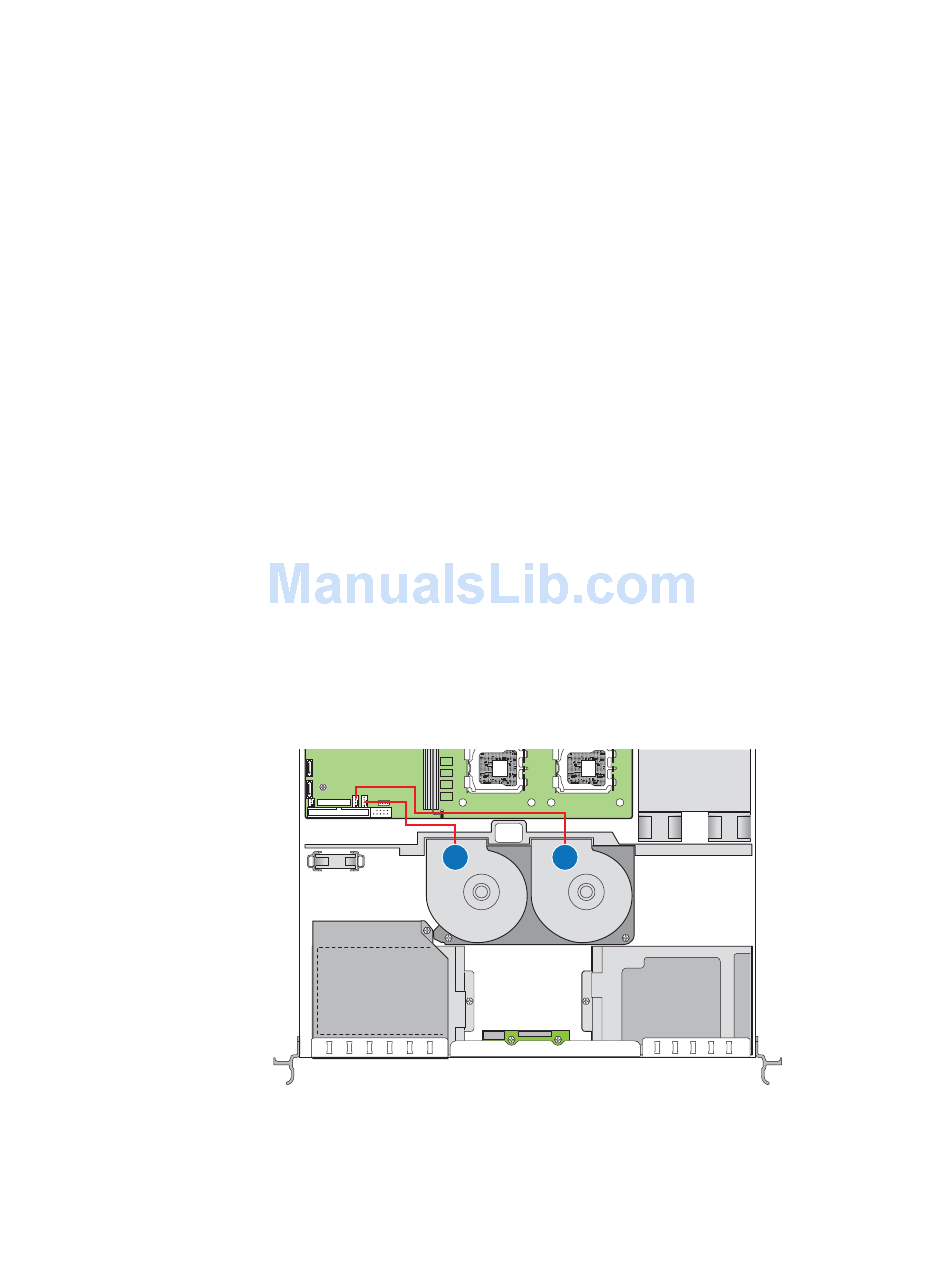

Figure 87. Disconnecting System Blower Cables (SR1530CL/SR1530CLR)

88
iii.
Cover".
A
"Removing the Server
"Removing the Processor Air
B
AF001180
Server System User Guide
"Safety
