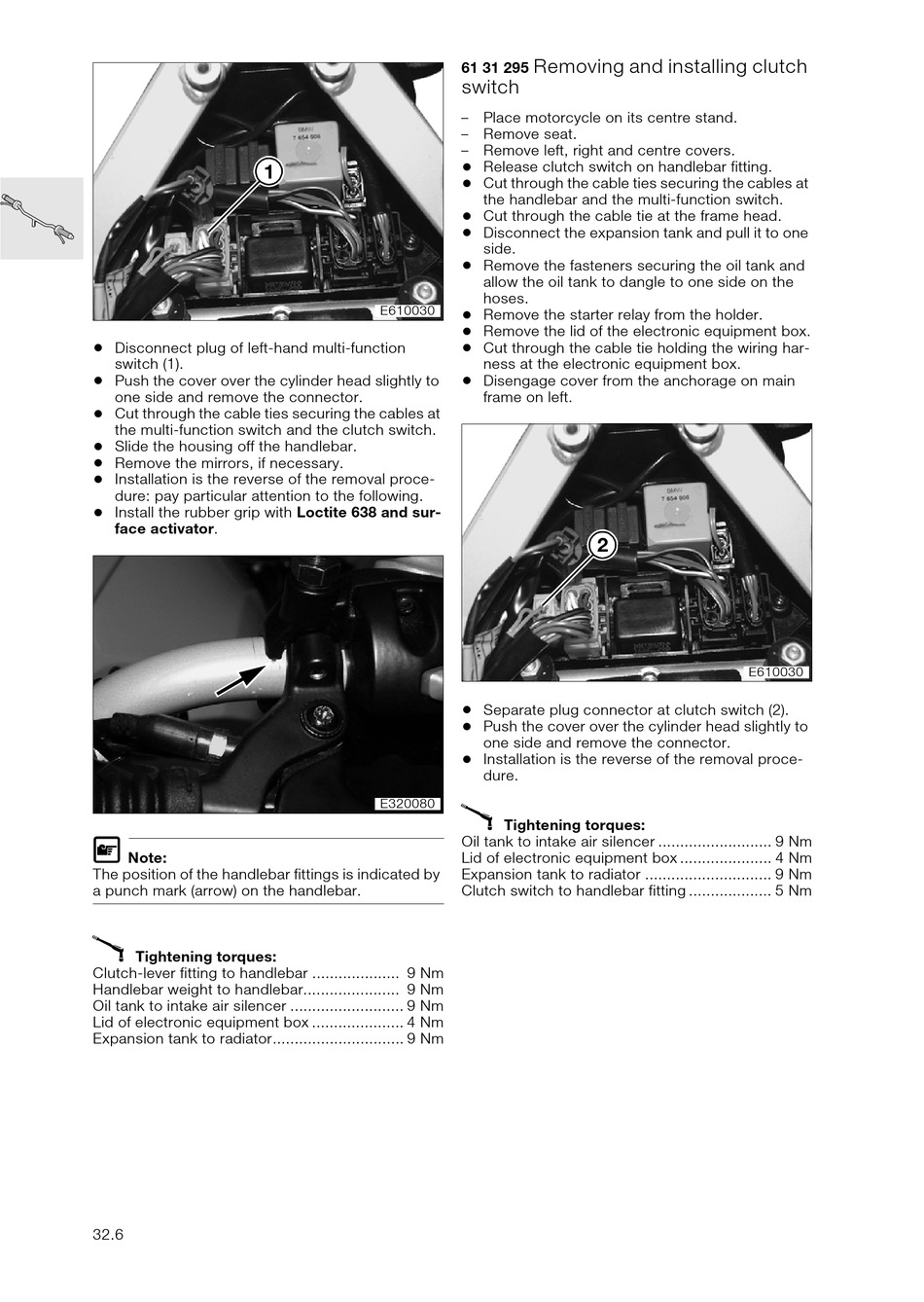

Removing And Installing Clutch - BMW F 650 GS Repair Manual

1
•
Disconnect plug of left-hand multi-function
switch (1).
•
Push the cover over the cylinder head slightly to
one side and remove the connector.
•
Cut through the cable ties securing the cables at
the multi-function switch and the clutch switch.
•
Slide the housing off the handlebar.
•
Remove the mirrors, if necessary.
•
Installation is the reverse of the removal proce-
dure: pay particular attention to the following.
•
Install the rubber grip with Loctite 638 and sur-
face activator.
L
Note:
The position of the handlebar fittings is indicated by
a punch mark (arrow) on the handlebar.
X
Tightening torques:
Clutch-lever fitting to handlebar .................... 9 Nm
Handlebar weight to handlebar...................... 9 Nm
Oil tank to intake air silencer .......................... 9 Nm
Lid of electronic equipment box ..................... 4 Nm
Expansion tank to radiator.............................. 9 Nm
32.6

Removing and installing clutch

61 31 295
switch
– Place motorcycle on its centre stand.
– Remove seat.
– Remove left, right and centre covers.
•
Release clutch switch on handlebar fitting.
•
Cut through the cable ties securing the cables at
the handlebar and the multi-function switch.
•
Cut through the cable tie at the frame head.
•
Disconnect the expansion tank and pull it to one
side.
•
Remove the fasteners securing the oil tank and
allow the oil tank to dangle to one side on the
hoses.
E610030
•
Remove the starter relay from the holder.
•
Remove the lid of the electronic equipment box.
•
Cut through the cable tie holding the wiring har-
ness at the electronic equipment box.
•
Disengage cover from the anchorage on main
frame on left.
•
Separate plug connector at clutch switch (2).
•
Push the cover over the cylinder head slightly to
one side and remove the connector.
•
Installation is the reverse of the removal proce-
dure.
E320080
X
Tightening torques:
Oil tank to intake air silencer .......................... 9 Nm
Lid of electronic equipment box ..................... 4 Nm
Expansion tank to radiator ............................. 9 Nm
Clutch switch to handlebar fitting ................... 5 Nm
2
E610030
