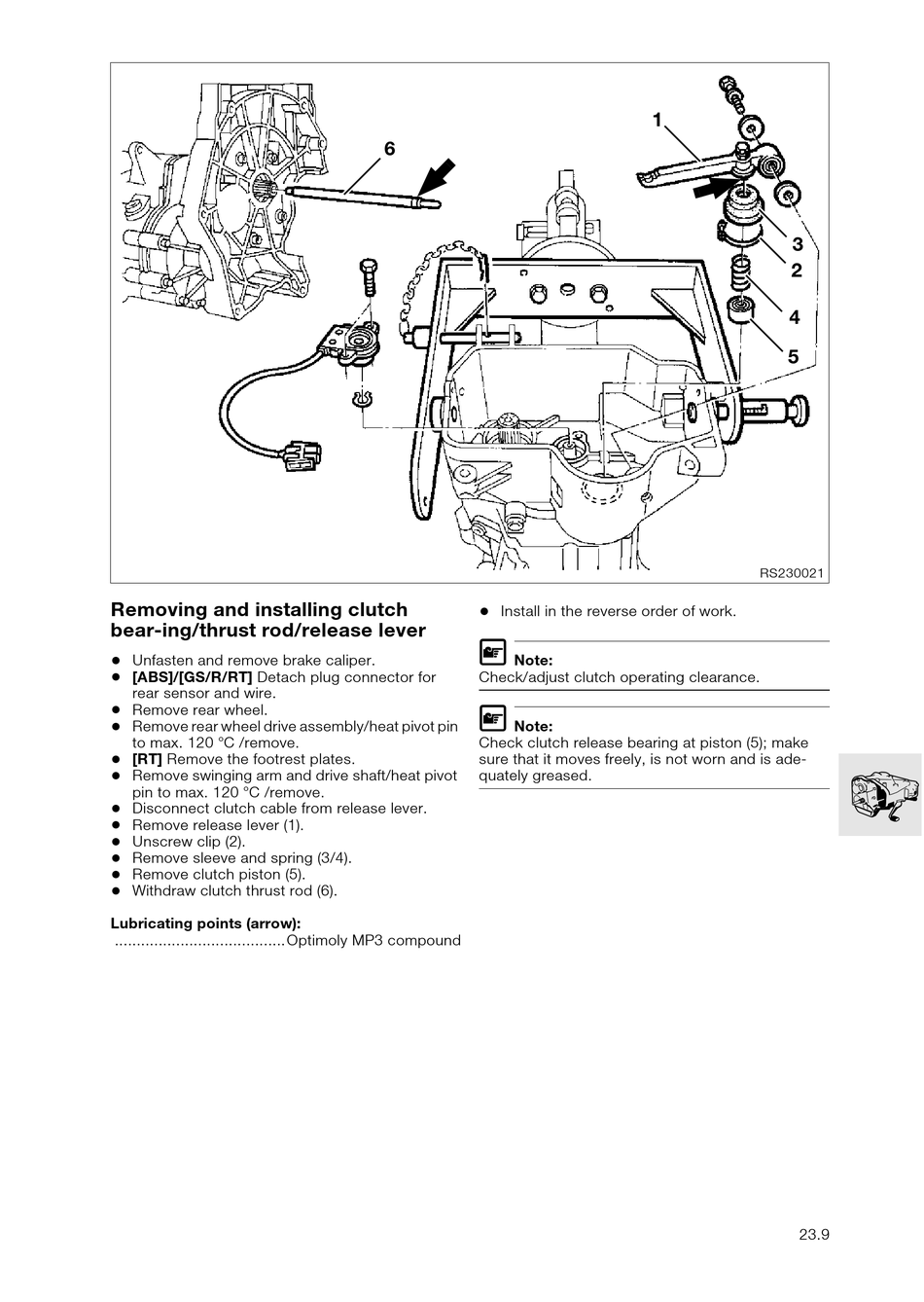

Removing and installing clutch
bear-ing/thrust rod/release lever
•
Unfasten and remove brake caliper.
•
[ABS]/[GS/R/RT] Detach plug connector for
rear sensor and wire.
•
Remove rear wheel.
•
Remove rear wheel drive assembly/heat pivot pin
to max. 120 °C /remove.
•
[RT] Remove the footrest plates.
•
Remove swinging arm and drive shaft/heat pivot
pin to max. 120 °C /remove.
•
Disconnect clutch cable from release lever.
•
Remove release lever (1).
•
Unscrew clip (2).
•
Remove sleeve and spring (3/4).
•
Remove clutch piston (5).
•
Withdraw clutch thrust rod (6).
Lubricating points (arrow):
.......................................Optimoly MP3 compound
6
•
Install in the reverse order of work.
L
Note:
Check/adjust clutch operating clearance.
L
Note:
Check clutch release bearing at piston (5); make
sure that it moves freely, is not worn and is ade-
quately greased.
1
3
2
4
5
RS230021
23.9
