BMW F 650 GS Repair Manual page 203

5

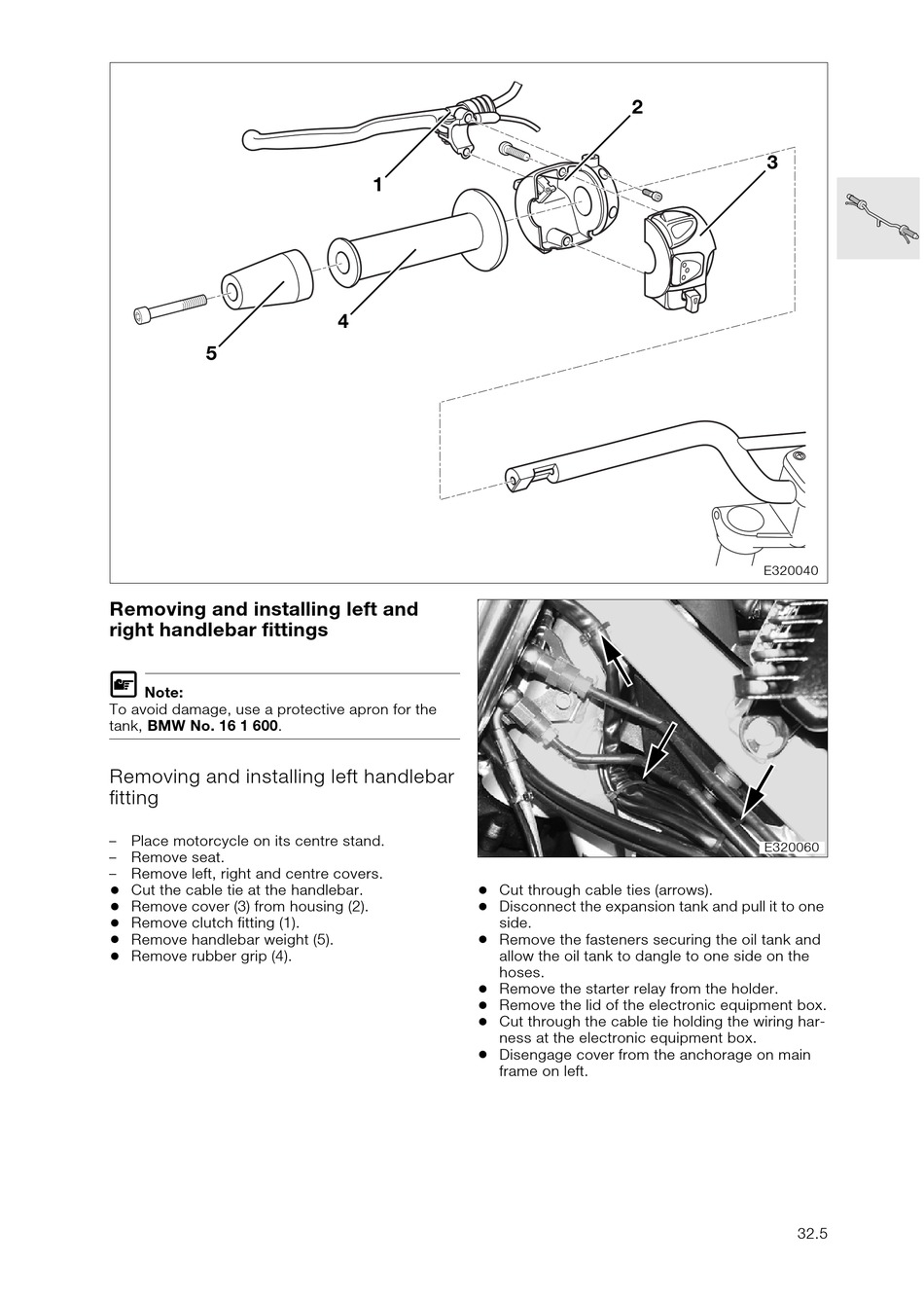

Removing and installing left and
right handlebar fittings
L
Note:
To avoid damage, use a protective apron for the
tank, BMW No. 16 1 600.
Removing and installing left handlebar
fitting
– Place motorcycle on its centre stand.
– Remove seat.
– Remove left, right and centre covers.
•
Cut the cable tie at the handlebar.
•
Remove cover (3) from housing (2).
•
Remove clutch fitting (1).
•
Remove handlebar weight (5).
•
Remove rubber grip (4).
1
4
•
Cut through cable ties (arrows).
•
Disconnect the expansion tank and pull it to one
side.
•
Remove the fasteners securing the oil tank and
allow the oil tank to dangle to one side on the
hoses.
•
Remove the starter relay from the holder.
•
Remove the lid of the electronic equipment box.
•
Cut through the cable tie holding the wiring har-
ness at the electronic equipment box.
•
Disengage cover from the anchorage on main
frame on left.
2
3
E320040
E320060
32.5
