Via the 2D data matrix bar code on top rear of the unit. Applications are available for most smart-phones
l
that can scan the 2D data matrix bar code to display the serial number. The correct label can be identified
by the blue ADVANCED NAVIGATION logo, and includes the hardware version and build date.

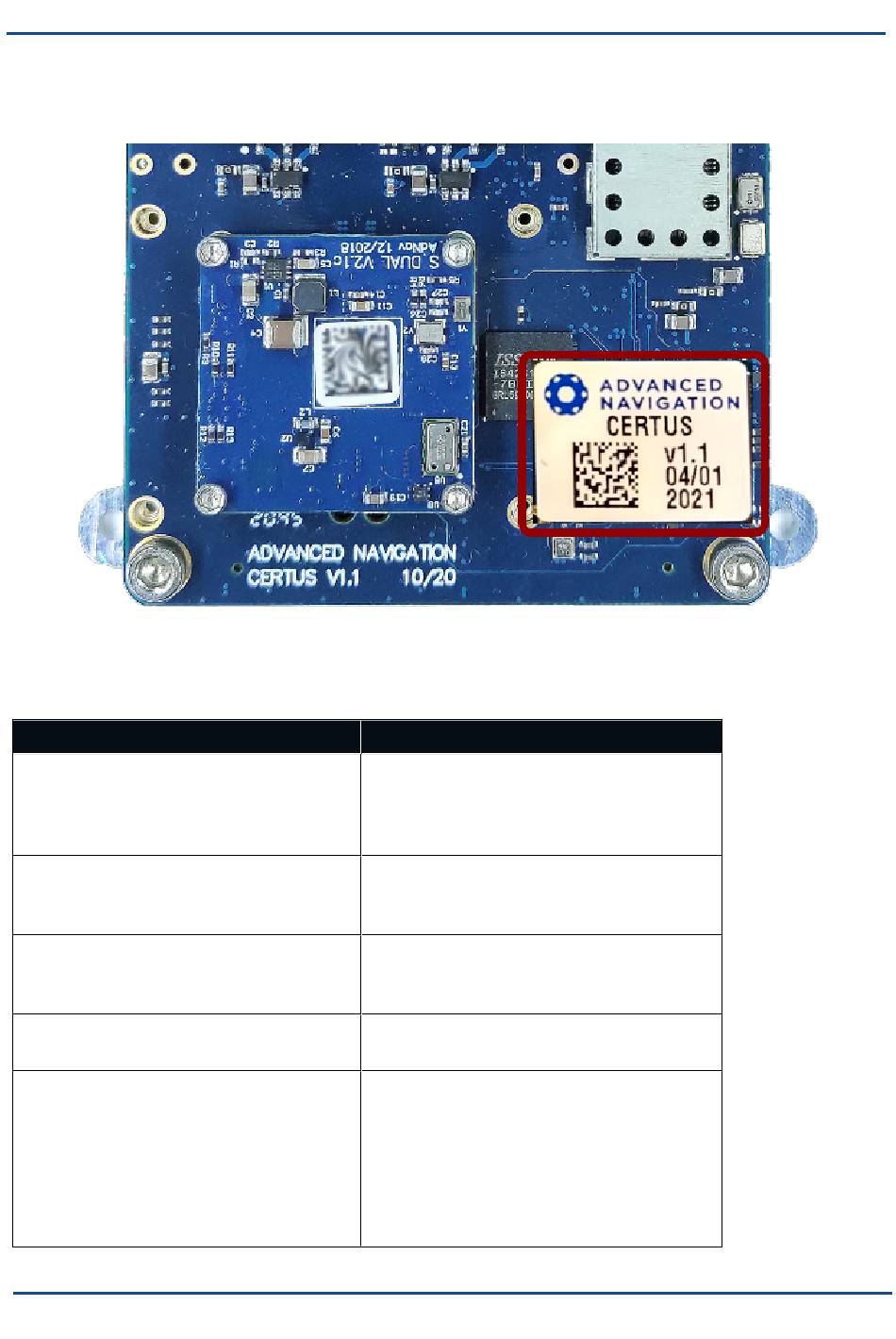

Figure 7: Certus OEM Serial Number Sticker

5.5 Communication Specifications

Parameter
Interfaces
Speed
Protocols
Peripheral Interface
GPIO Functions
v2.4
Value
Ethernet
UART
CAN
1PPS
100Mbit (Ethernet)
4800 to 4M baud (UART)
125000 to 1M baud (CAN)
AN Packet Protocol
NMEA 0183
NMEA 2000
2x GPIO for serial, timing, digital inputs/ out-
puts
1PPS Input/output
Odometer
Stationary
Air Data Input
NMEA input/output
Novatel GNSS input
Trimble GNSS input
