11.5.2 Height
Any height data output by Advanced Navigation devices is the height referenced the WGS84 reference
ellipsoid. The WGS84 reference ellipsoid is a smooth mathematical model that approximates the form of the
surface of the earth. The ellipsoid height (as used by GNSS) is not referenced to mean sea level; the height
from the EGM96 geoid (orthometric height) approximates the height above mean sea level (MSL).
See Figure 114: Orthometric, ellipsoid and geoid height diagram below for a visual representation of geoid
height, ellipsoid height and orthometric height (height above mean sea level).
Note:
Ellipsoid height refers to the height of a point of interest referenced to the WGS84 reference ellipsoid.
Geoid height refers to the height of the EGM96 geoid referenced to the WGS84 reference ellipsoid at a
point of interest.
Orthometric height is the height at a point of interest referenced to the EGM96 geoid.
All heights can be either positive or negative dependant upon direction from the reference surface.

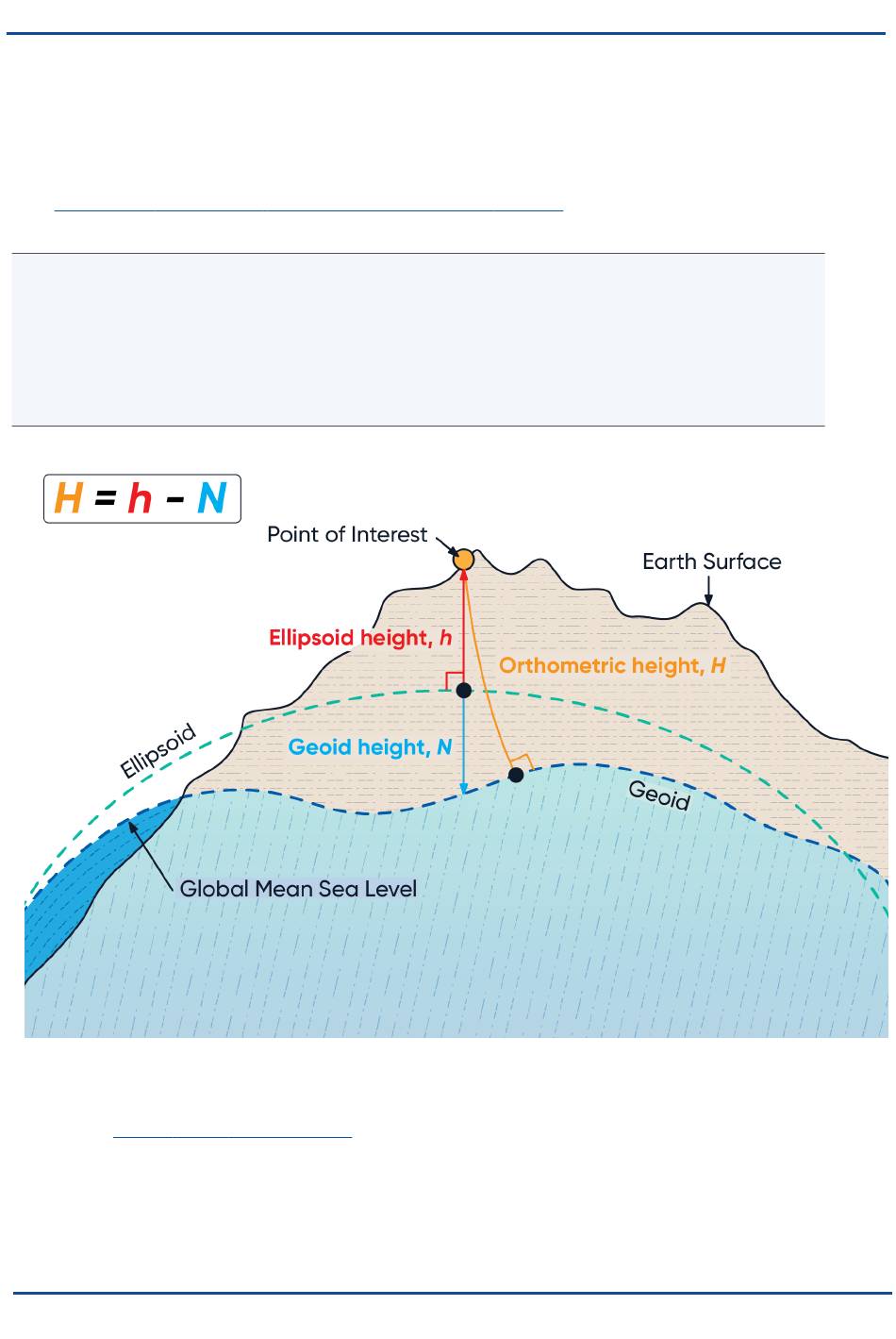

Figure 114: Orthometric, ellipsoid and geoid height diagram
The value required to convert the WGS84 ellipsoid height to orthometric height can be found in the geoid height
packet, see 10.4.34 Geoid Height Packet.
