Certus Reference Manual • Configuring and Monitoring Certus
8.2.7.16 GNSS Configuration
The GNSS Configuration dialogue allows the user to select constellation configurations based on the type of
GNSS receiver installed. If an invalid configuration is entered, the system will revert to the previous configuration
when attempting to save changes.

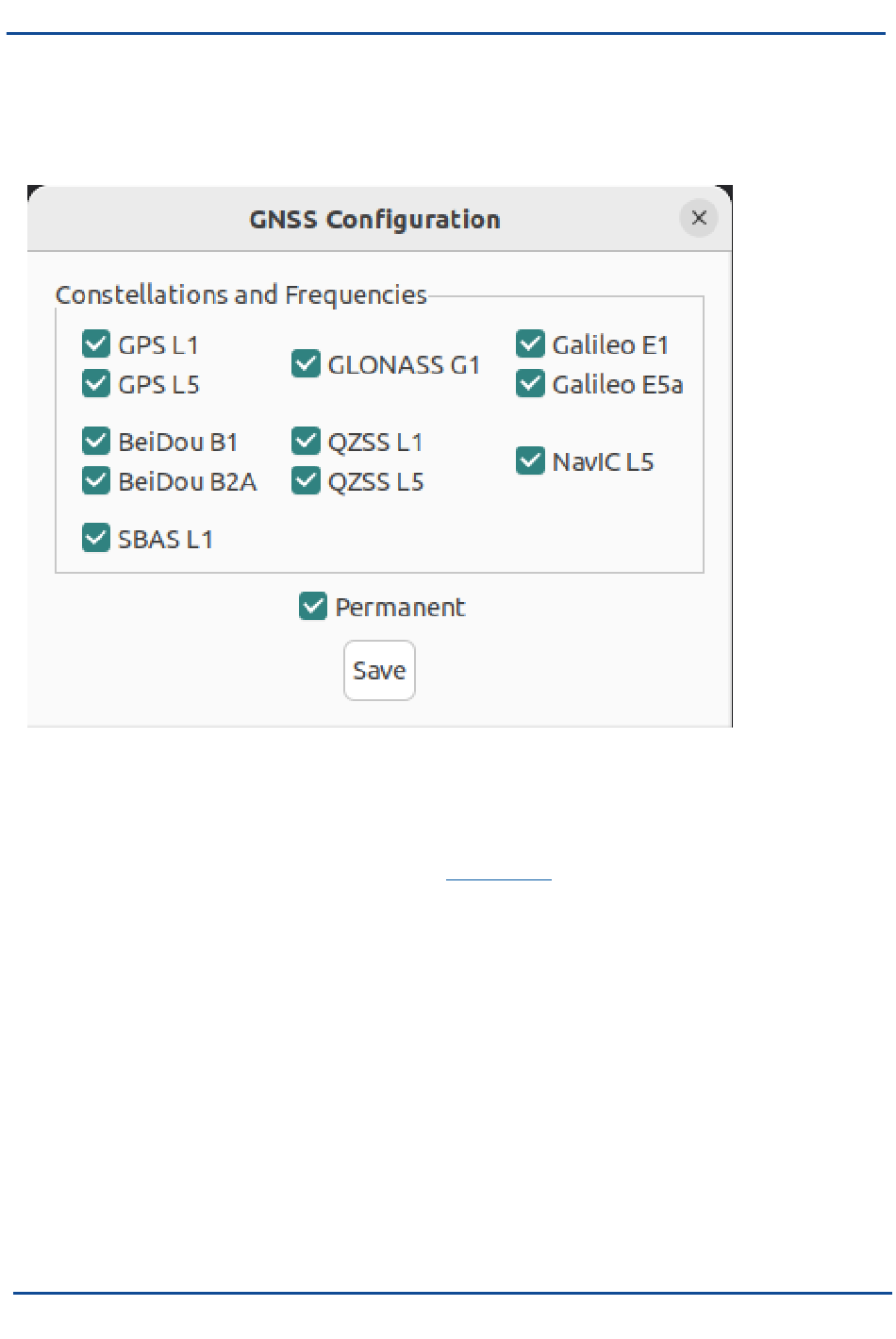

Figure 91: Manager GNSS Configuration Dialogue
The following configuration rules are applicable:
For any given constellation, the first (1) frequency must be enabled in order to receive additional fre-
l
quencies.
Galileo and BeiDou are licensed separately, see
l
L Band corrections are available on this receiver, however require an additional subscription to Omnistar
l
or RTX. Advanced Navigation does not supply these, contact Trimble for further details.
The following configuration rules are applicable:
By default:
l
GPS, Galileo and GLONASS constellations are enabled.
l
SBAS and QZSS correction services are enabled.
l
When selecting a GNSS constellation, all frequencies for that constellation must be selected, with the
l
exception of GPS and Beidou.
GPS and Beidou can be enabled with L1/B1 frequency only, and a second frequency is optional.
l
SBAS and QZSS correction services can be enabled for any constellation configuration as long as GPS
l
L1 is enabled.
v2.4
Accessories for details.
