Certus Reference Manual • Configuring and Monitoring Certus

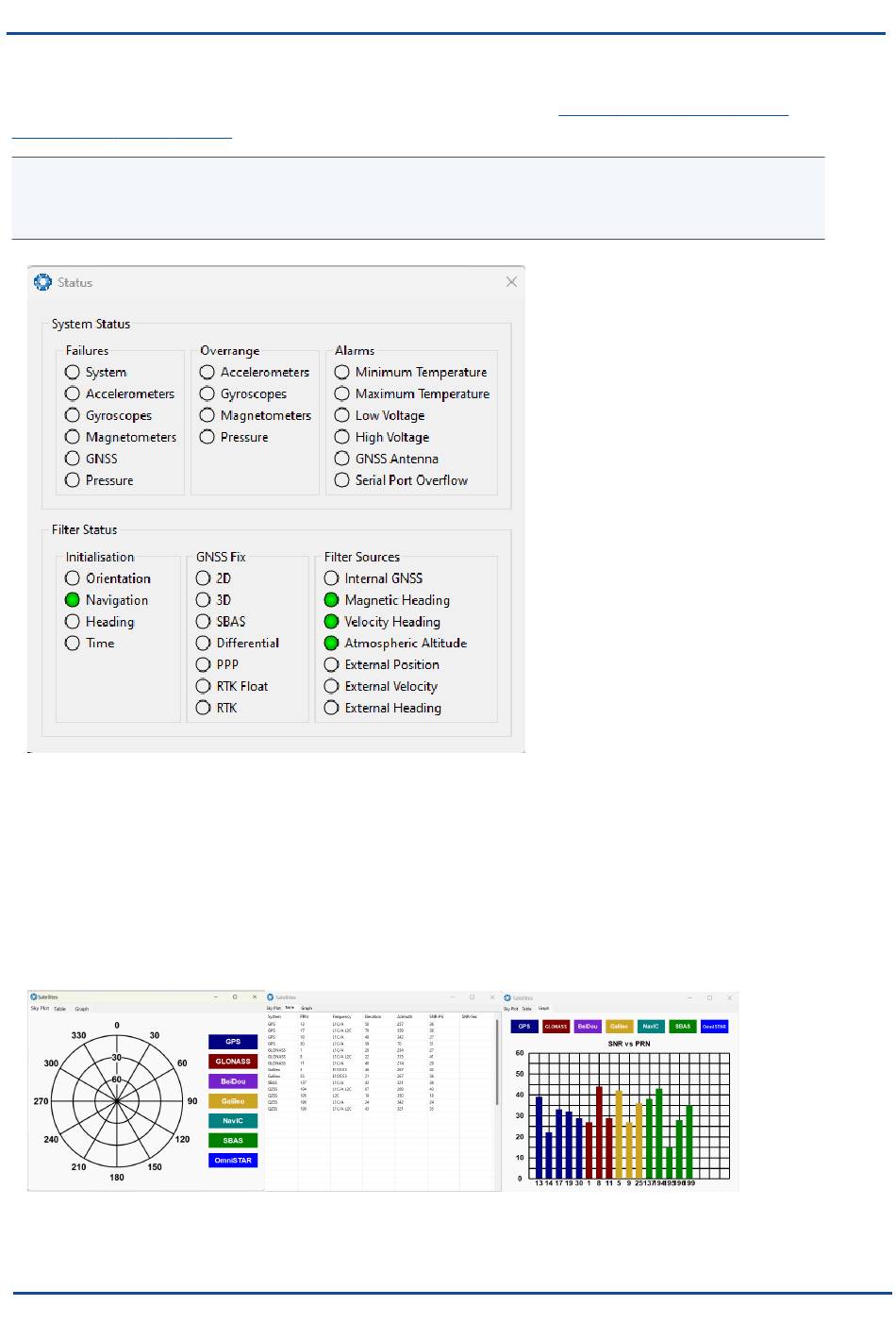

8.2.6.3 Status
The Status shows the current status of Certus as reported by sections
10.4.10 Raw GNSS Packet. (ID#29).
Note: The following Status flags do not update for Certus units with a Trimble BD992 GNSS Receiver.
These flags are only applicable to u-blox GNSS Receivers: GNSS 2, Antenna 1 disconnected, Antenna
2 disconnected, Antenna 1 short, Antenna 2 short
Figure 63: Manager Status Dialogue
8.2.6.4 Satellites
The Satellites dialogue shows detailed information on the satellites that are visible to the Certus GNSS receiver.
The information is displayed as a satellite skyplot, a table and an SNR (Signal-to-Noise Ratio) graph. A
maximum of 28 satellites will be displayed, even if more are accessible. This plot shows the SNR of each
satellite at the primary and secondary antenna. As a guideline, these should be within 5-10 dB of each other in
the absence of cable or antenna faults. Elevation and azimuth are in units of degrees.
Figure 64: Manager Satellites Table
