Electrical Connectors; Connector Pin Allocation - Advanced Navigation Certus OEM Reference Manual

Certus Reference Manual • Specifications
H2
T_P 1
1
T_N 2
2
R_P 3
3
R_N 4
4
5
5
0874370573
GND_ETH
ETH
H3
3
3
1PPS 2
2
1
1
0874370373
GND 1PPS
IO CONNECTORS

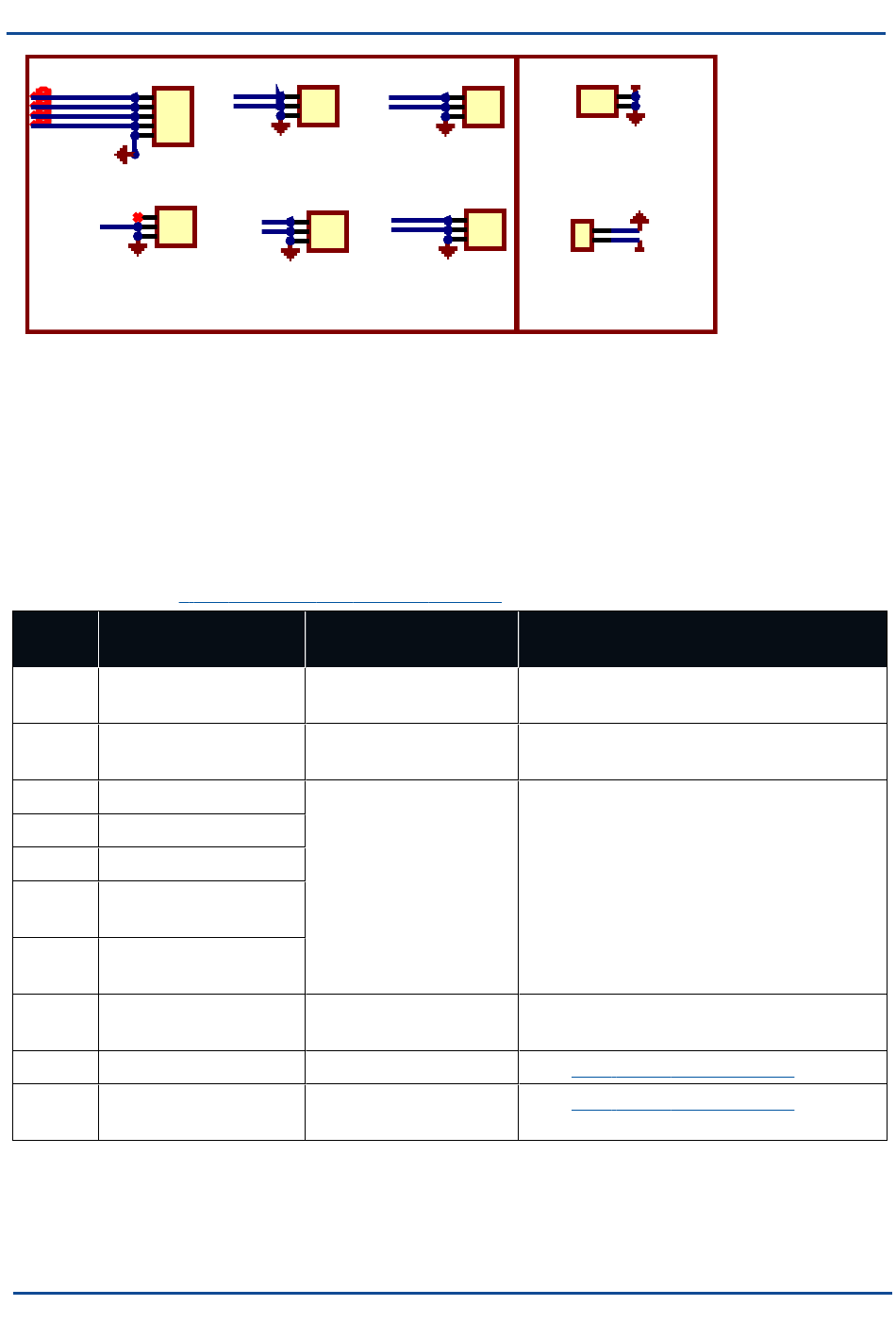

Figure 10: Certus OEM Connection Schematic
5.7.3 Electrical Connectors
The following table describes the function of each connection and the type and ordering information for
connection. Certus OEM PCB Connector is the connector supplied on the Certus OEM PCB ready for customer
connection. Mating Connector for Cables is the manufacturers mating connector and part number, plus the part
number for a pre-crimped 15 cm cable.
This information is provided to make it easier for you to design the appropriate type and length of connections
for your specific application. To make development easier, we also provide standard ~30 cm pre-prepared as
described in section 4 Part Numbers and Ordering
Label Function
9-30 V 9-30 V DC input power
5 V 5 V DC input power
PRI Primary Serial UART
AUX Auxiliary Serial UART
1PPS 1PPS communications
CAN CAN Communications
Bus
GPIO General Purpose
Input/Output
ETH Ethernet network con-
nectivity
PRIM Primary GNSS antenna
SEC Secondary GNSS
antenna
Table 18: Connector Descriptions

5.7.4 Connector Pin Allocation

The following table shows the relevant pin allocation for each connection.
v2.4
H4
GPIO1 3
PRIM_RX
3
GPIO2 2
PRIM_TX
2
1
1
0874370373
GND
GPIO
H5
AUX_RX
CANL 3
3
AUX_TX
CANH 2
2
1
1
0874370373
GND
CAN
Certus OEM PCB Con-
nector
JST 2 pin B2B-XH-AM
Molex 2 pin 0874370273
Molex 3 pin 0874370373
Molex 5 pin 0874370573
Female MMCX
Female MMCX
H8
H6
3
3
2
2
1
1
0874370273
0874370373
GND PRI
H7
3 H1
3
2
2
1
1 2
0874370373 B2B-XH-AM
AUX
GND
POWER CONNECTORS
Options.
Mating Connector for Cables
JST XHP-2 (Precrimped wires: JST
ASXHSXH22K305)
Molex 0874390200
(Precrimped wires: Molex 0797580016)
Molex 0874390300
(Precrimped wires: Molex 0797580016)
Molex 0874390500
(Precrimped wires: Molex 0797580016)
Male 5.7.6 MMCX RF Connector
Male 5.7.6 MMCX RF Connector
Page 24
+5V
1
1
2
2
GND
5V
GND
1
1
2
+SUPPLY
9-30V
2024-12-17
