3.
Warning!
Ensure that the AC LED indicator on the power supply turns on steady before you connect
!
the battery terminal to the power supply.
Warning!
Remove the protective dust cover label from the top of the power supply.
!
4.12

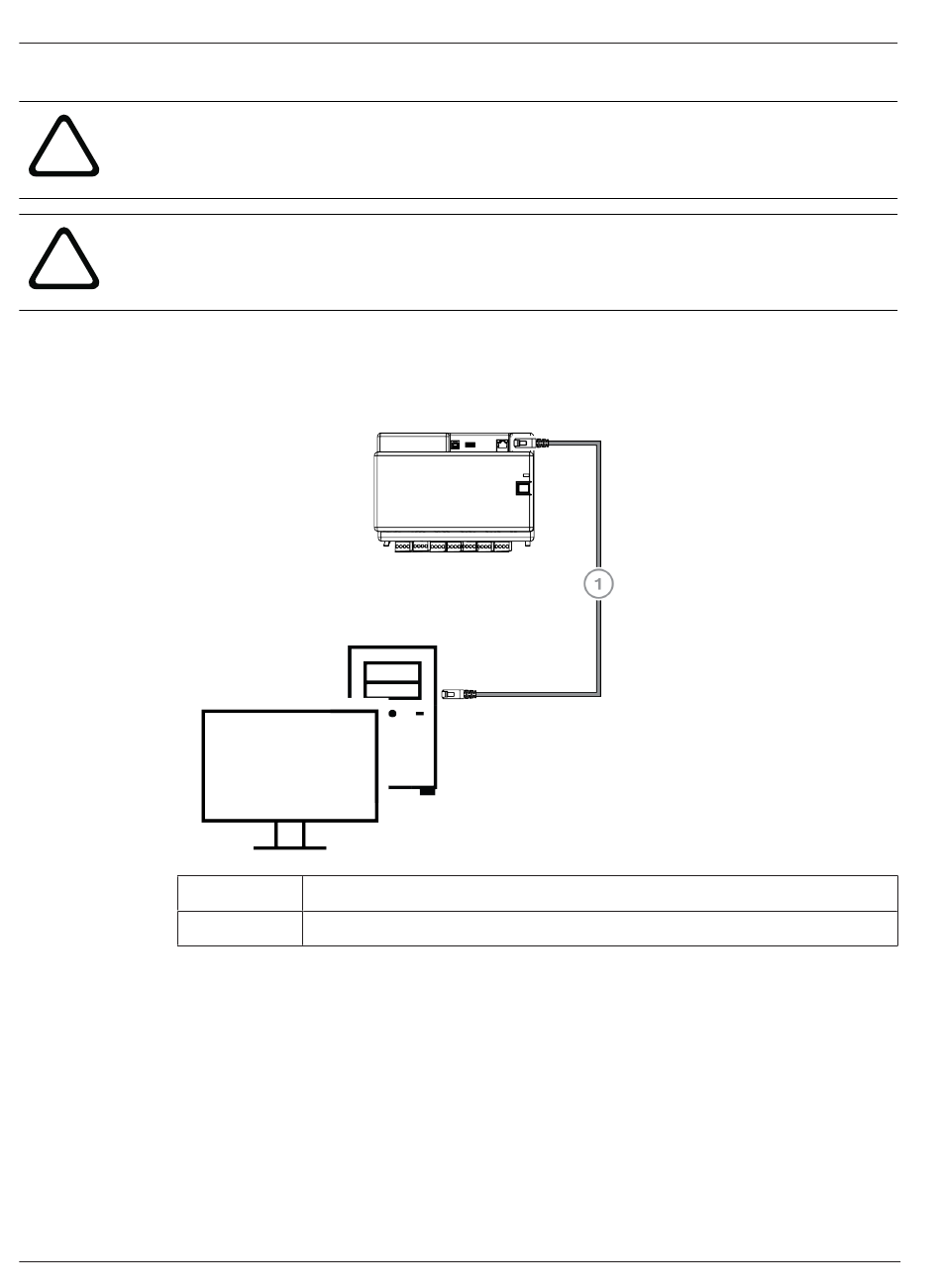

IP Interface

Ethernet connector
Callout
1
VdS and EN50131: The usage of the MAP5000 Ethernet interface is permitted if the
following conditions are met.
1.
2.
3.
VdS and EN50131 programming instruction
Settings in RPS for MAP:
2024-10 | V26 | F.01U.168.332
Ensure that there are no power-related trouble conditions.
Description
CAT5e Ethernet cable (max. 100 m)
Use a direct connection (1:1 connection) for connecting the management system to
MAP5000.
When using repeaters (switches), ensure that no other network components are
connected to the repeaters.
For operation of the management system, restrict the data transfer from MAP5000 to
the management system. Ensure that this does not have any influence on the panel.
