32 en | Installation
4
3.10

Installing the power converter

1.
2.

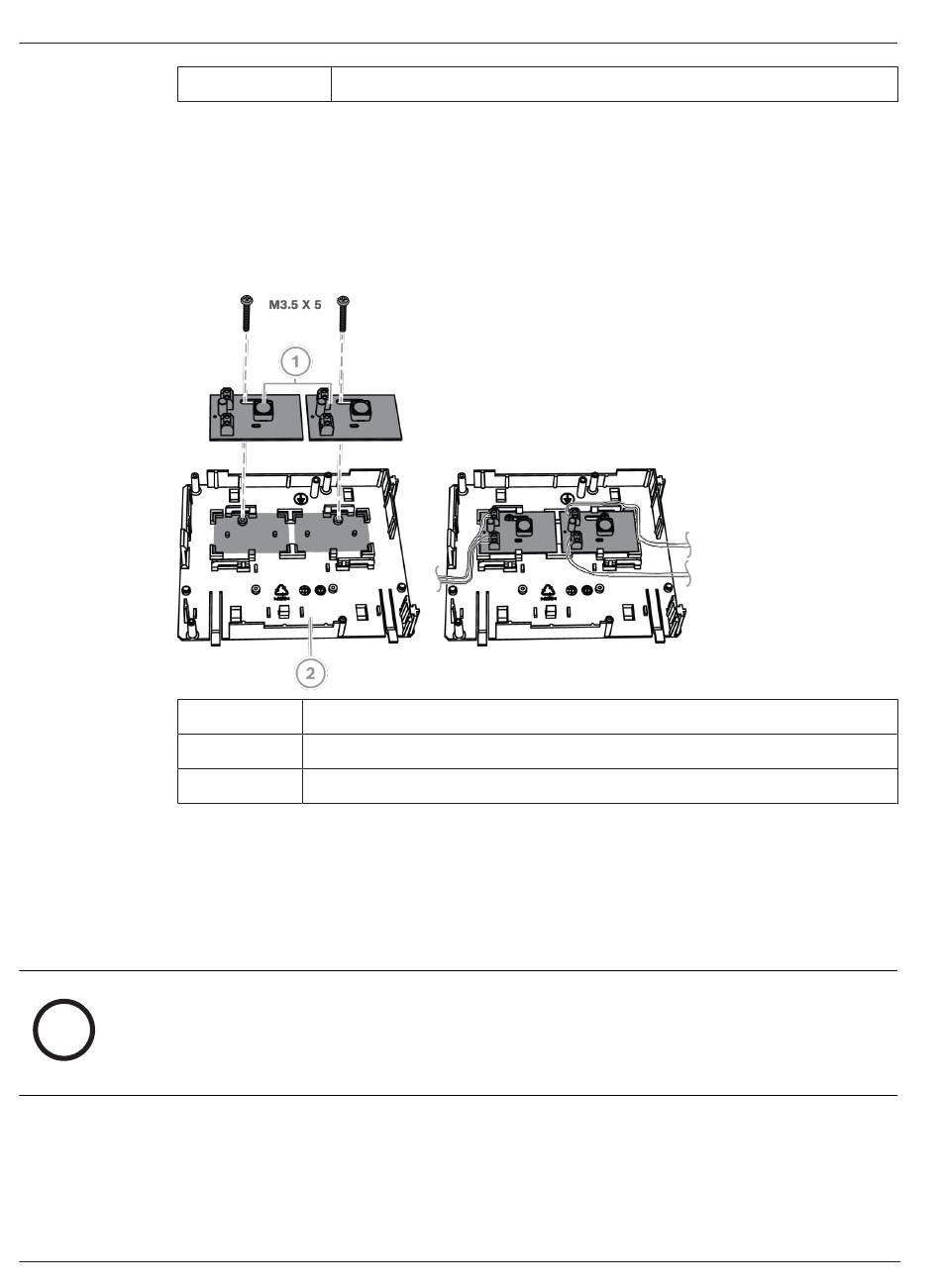

Installing the power converter
Callout
1
2
3.11

Installing the SIV 28 fuse plate

1.
2.
Notice!
Use the corresponding ratings for the fuses SI 1 ... SI 5. (minimum 250 mA, maximum 1 A
i
depending on the connected loads).
The overall current of all SIV outputs must not exceed the available maximum current of the
voltage output used.
2024-10 | V26 | F.01U.168.332
Screw location for AT x000 earth ground
Mount the ICP-MAP0017 MAP 12V-28V power converter onto the accessory mounting
plate as shown in the figure below (screws not supplied).
Connect the field wiring to the terminal block of the power converter as shown in the
figure below and leave the other ends unconnected.
Description
ICP-MAP0017 MAP 12V-28V power converter
ICP-MAP0020 MAP accessory mounting plate
Mount the SIV 28 fuse plate onto the accessory mounting plate as shown in the figure
below (screws not supplied).
Connect the field wiring to the terminal block of the fuse plate as shown in the figure
below and leave the other ends unconnected.
