34 en | Installation

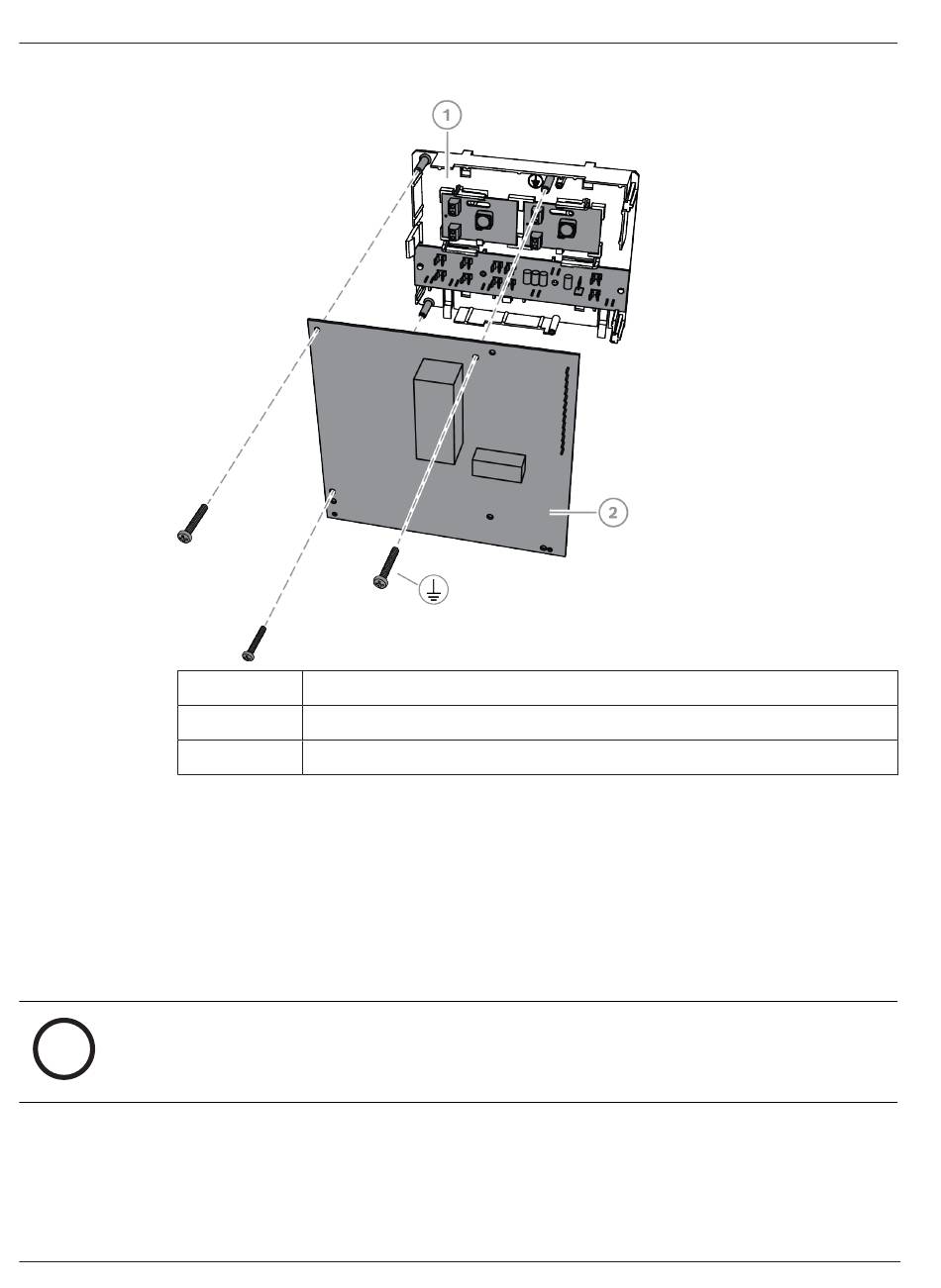

Installing the AT x000 communicator
Callout
1
2
4
The MAP ribbon cable is supplied with the MAP interface DE module.
The ribbon cable is used for all connections of the communicator input lines and for the
"Communicator Trouble" and "Negative Acknowledgment" communicator signals. If
additional signals are required for the communicator, e.g. area x armed / disarmed, these
can be provided as a point-to-point connection between the MAP5000 panel and
communicator.
Notice!
i
The analog AT x000 requires 12 V. Use the ribbon cable connector labeled AT x000 Uext.
The analog AT x000 also requires a separate 12 V power source, such as the ICP-MAP0017
MAP 12V-28V power converter.
2024-10 | V26 | F.01U.168.332
Description
ICP-MAP0020 MAP accessory mounting plate
AT x000 communicator
Connect the AT x000 communicator to the ICP-MAP0007-2 MAP interface DE module
using the supplied ICP-MAP0154 MAP ribbon cable.
