Topology Of The External Bosch Data Bus; Connecting The Power Supply; Power Supply Connections - Bosch Modular Alarm Platform 5000 Installation Manual

48 en | Connections
ICP-MAP0012 MAP CAN-splitter
IPP-MAP0005-2 MAP power supply 150W
IUI-MAP0001-3 MAP touch keypad
1
When one or more MAP LSN gateways are operated remotely, there must be one MAP
power supply (IPP-MAP0005-2) installed in the same MAP expansion enclosure.
2
The following applies for VdS: Touch keypads for different areas must not be connected on
the same BDB.
4.1.2

Topology of the external Bosch Data Bus

4
Notice!
i
Any other bus topology does not conform to the specifications of the BDB.
BDB wiring without consideration of the power supply
4.2

Connecting the power supply

4.2.1

Power supply connections

1.
2.
2024-10 | V26 | F.01U.168.332

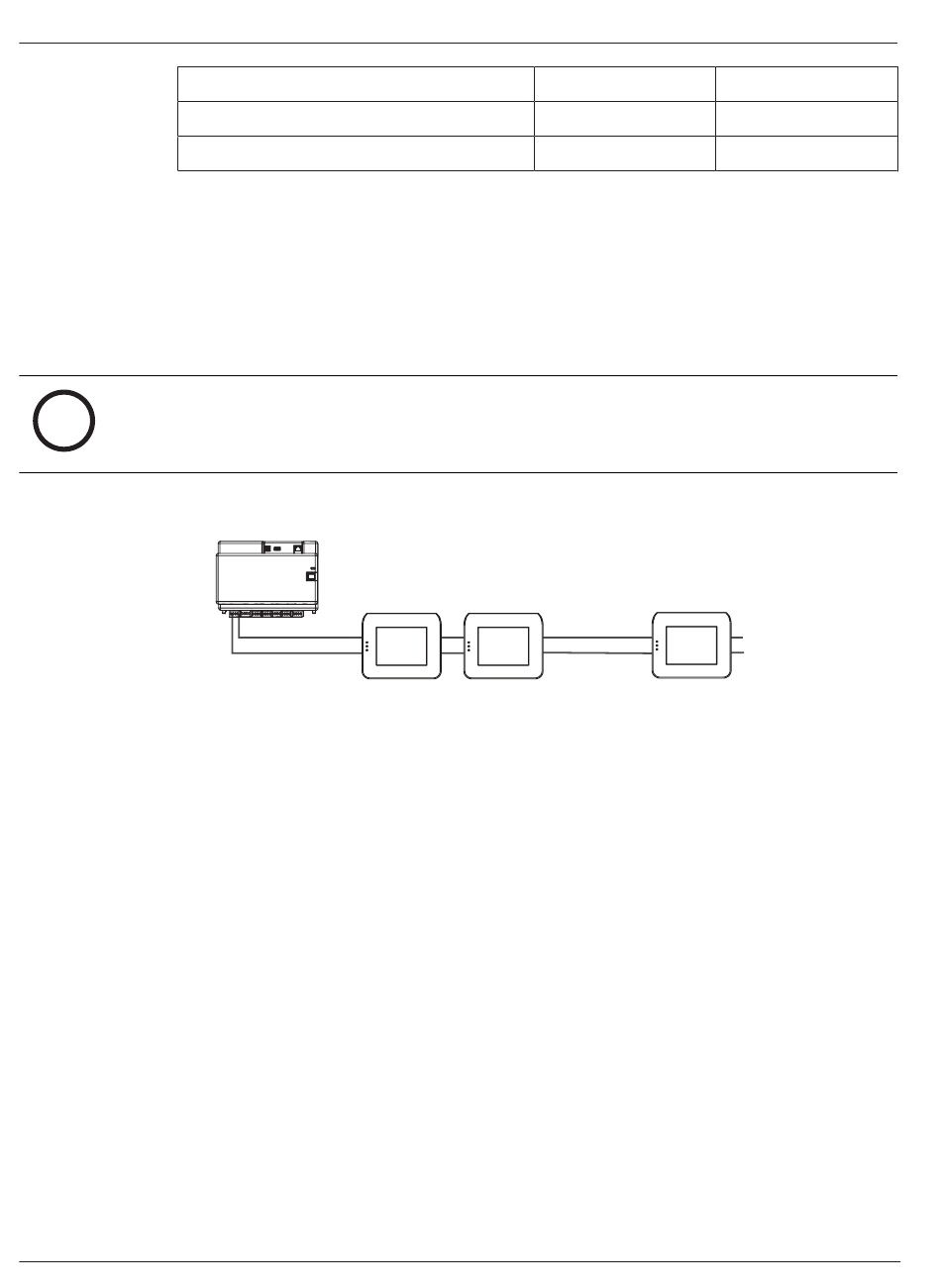

Mount the external BDB as shown below.
Connect the MAP terminal block to the MAP power supply.
Connect the MAP power supply to the MAP5000 panel using the supplied four-pin
connector cable.
X
2
X
Max. 1000m
Installation manual
Modular Alarm Platform 5000
X
X
2
X
R = 120 Ohm
E
