46
en | Connections

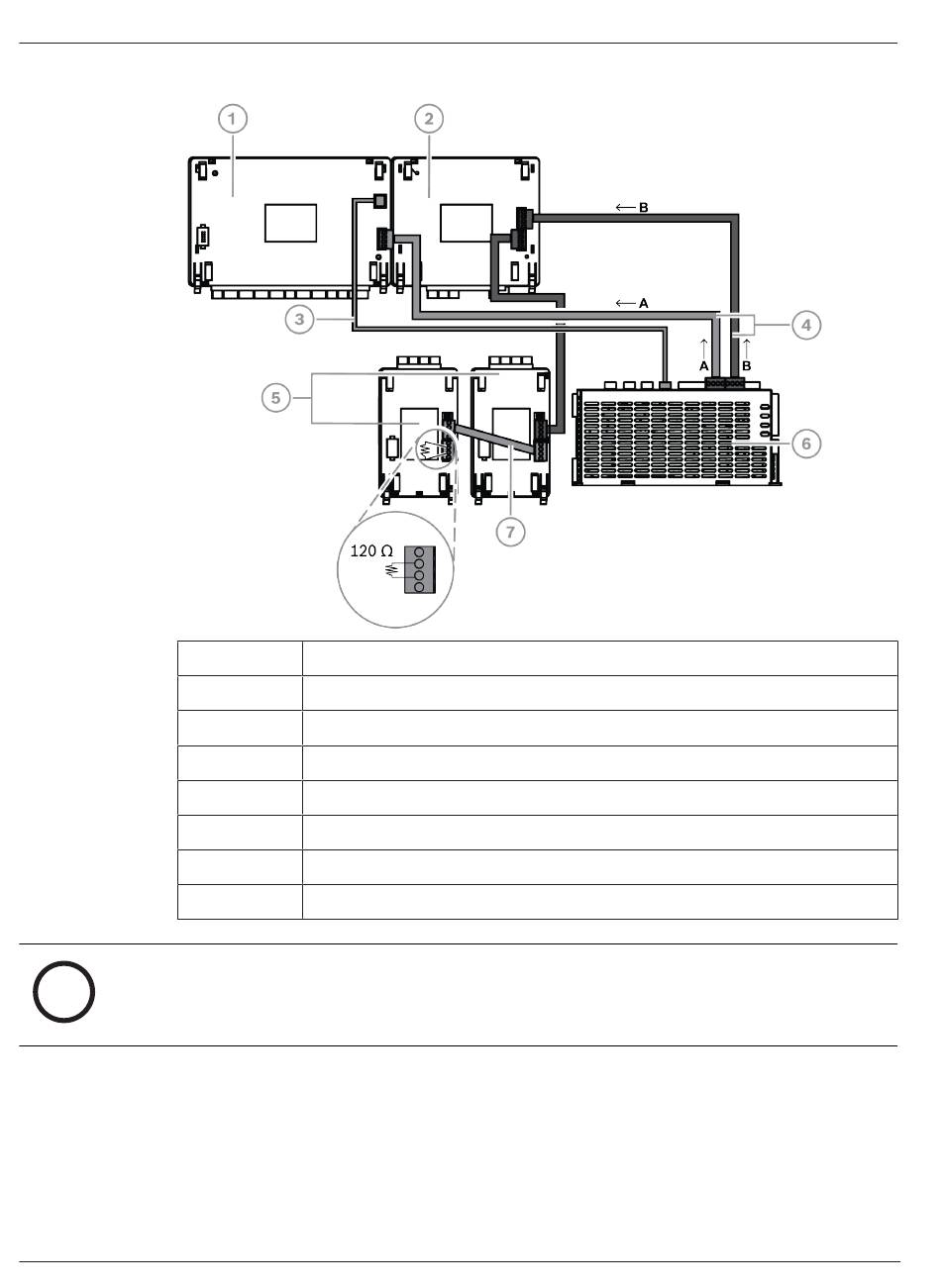

Internal BDB connections
Callout
1
2
3
4
5
6
7
Notice!
i
The order of system modules on the BDB shown in the figure is not mandatory. A
symmetrical load distribution to the power supply outputs A and B must be ensured as far
as possible.
2024-10 | V26 | F.01U.168.332
Description
MAP5000 panel
ICP-MAP0007-2 MAP DE interface module
ICP-MAP0146 Panel power cable
ICP-MAP0132 Data bus cable, long
ICP-MAP0010 LSN gateway or ICP-MAP0012 MAP BDB/CAN splitter
IPP-MAP0005-2 MAP power supply 150W
ICP-MAP0134 Data bus cable, short
Installation manual
Modular Alarm Platform 5000
Bosch Security Systems B.V.
