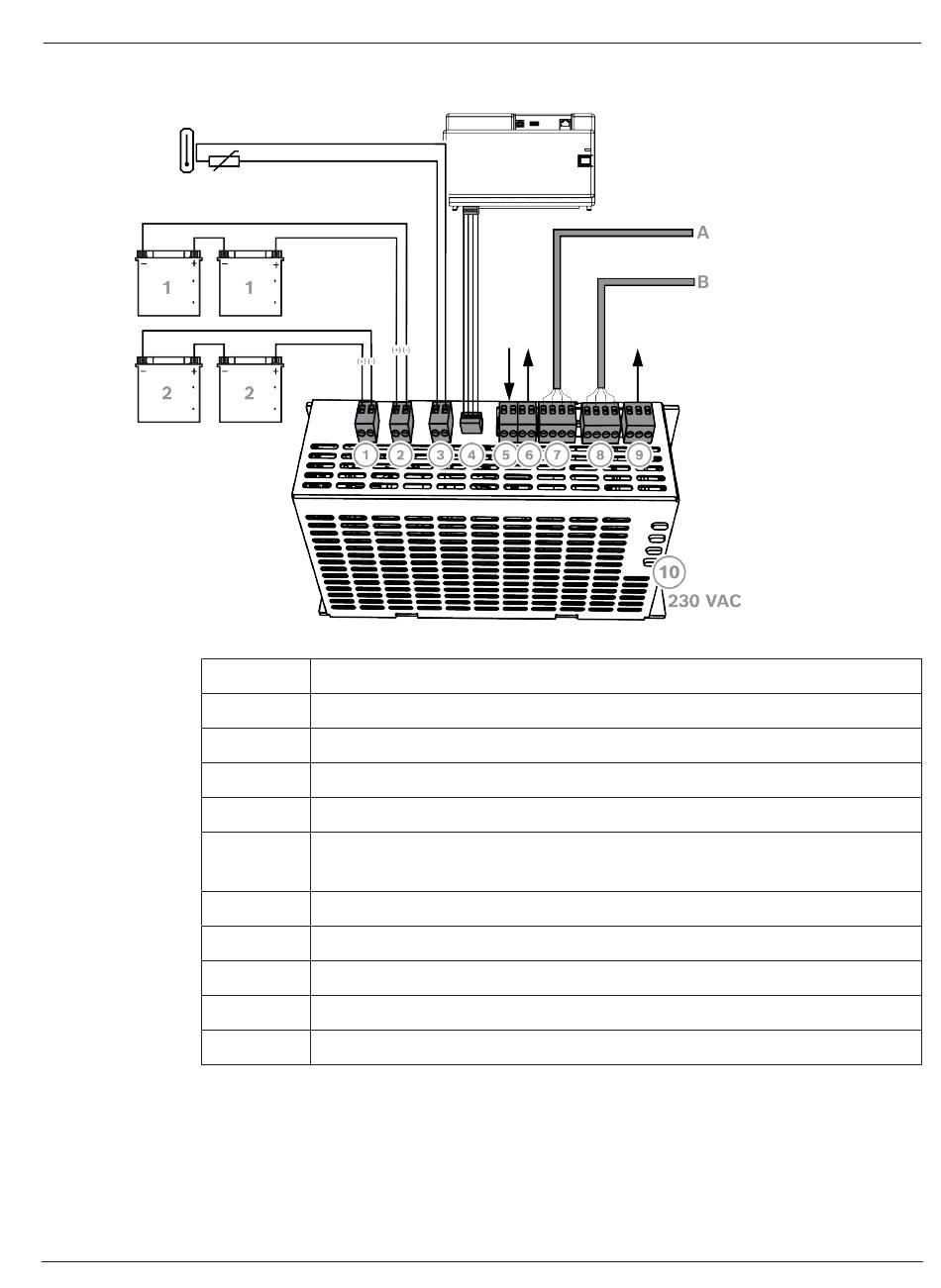

Connecting the power supply
Connection
1
2
3
4
5
6
7
8
9
10
4.2.2

Optional power supply connections

1.
2.
Bosch Security Systems B.V.
Description
Battery circuit 2
Battery circuit 1
Connection for thermistor
Power connection to MAP5000 panel
Input for tamper switch, is activated by configuration for remote operation of
the power supply on the external BDB.
Output for voltage supply (switched), supervised, nominal voltage 24 VDC
Bosch Data Bus - connection A
Bosch Data Bus - connection B
Output for AC fail and summary power supply trouble (optional)
AC connection
Connect the auxiliary DC power for the power converter.
Connect the supervision outputs. The supervision outputs monitor AC mains failure and
summary power supply trouble.
