Modular Alarm Platform 5000

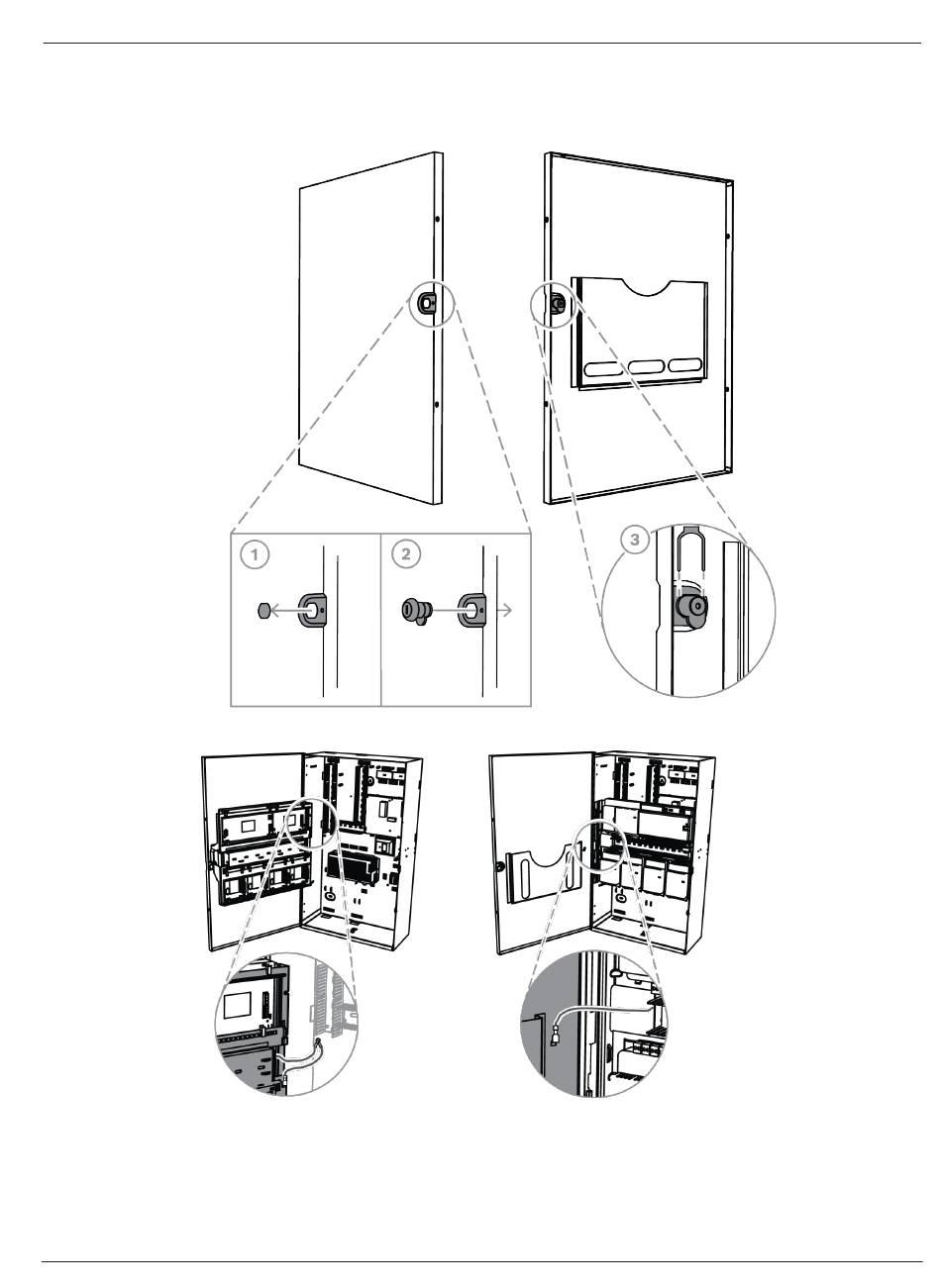

Installing the enclosure lockset
Connecting the grounding cable to the enclosure door
4.11
Final power connections
Make sure that the AC wires are connected to the MAP terminal block.
1.
2.
Bosch Security Systems B.V.
Connect the battery wire leads to the batteries.
Do not connect the batteries to the power supply at this time.
Switch the AC breaker on.
Installation manual
Connections | en
2024-10 | V26 | F.01U.168.332
61
