40
en | Installation
3.13.2
Mounting the MAP5000 panel on the hinged mounting plate
How to mount the MAP5000 panel
The MAP5000 panel is mounted on the hinged mounting plate.
For information on how to mount modules on the hinged mounting plate, refer to Mounting
the modules onto the hinged mounting plate, page 37.
3.13.3
Mounting the Ethernet cable
Ethernet cable
The Ethernet cable is used to provide a connection via the MAP5000 REST-API to a
management system.
The Ethernet cable can alternatively be used for IP communication if one of the following
MAP5000 panels is installed:
–
–
For IP communication via an integrated IP communicator the following protocols are
available:
–
–
–
How to mount the Ethernet cable
1.
2.

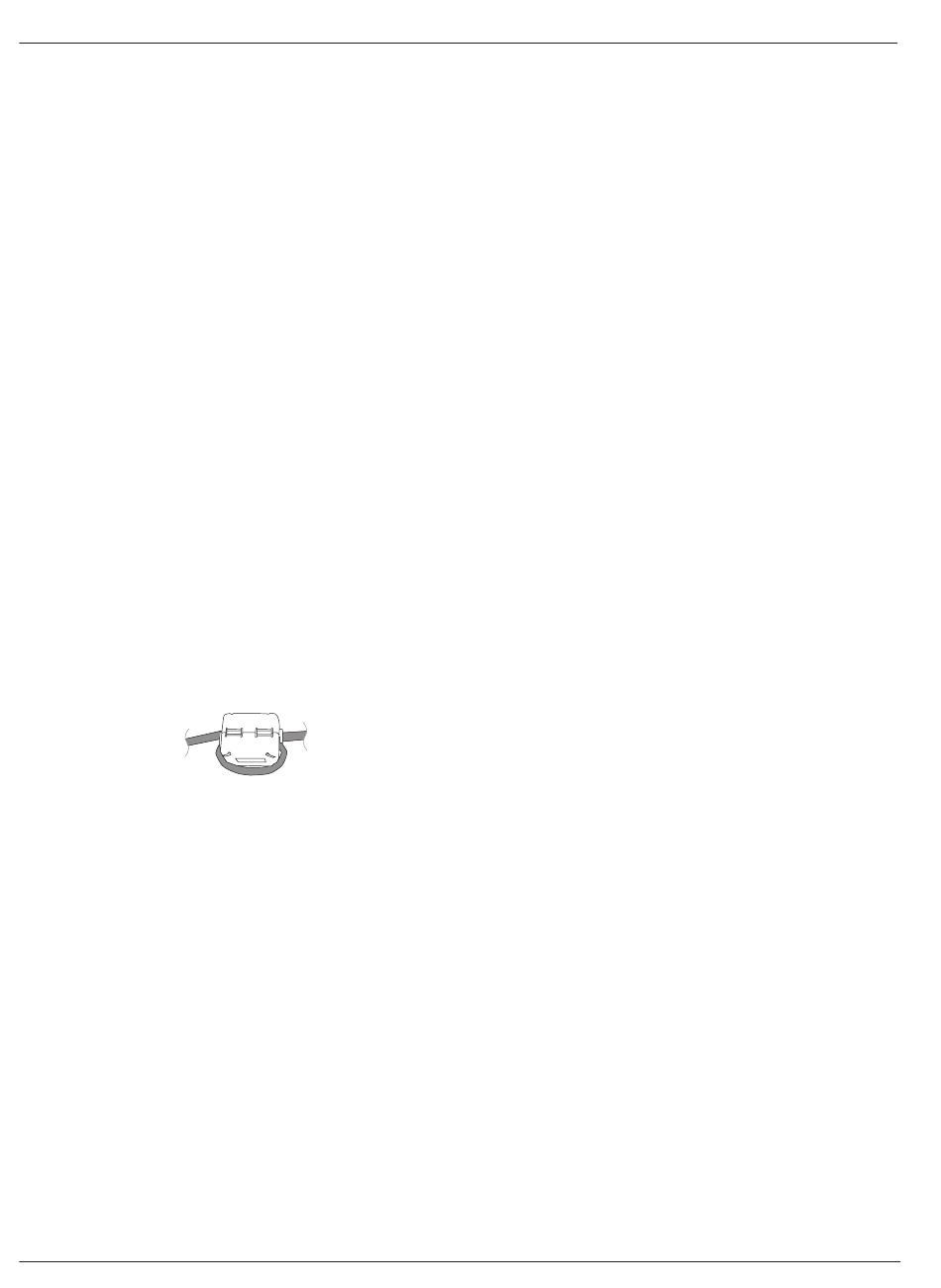

Ferrite core
3.14
Installing the relay module
The ICP-COM-IF2 relay module can be mounted on the hinged mounting plate or the
mounting rails of the MAP panel enclosure.
A clearance of approx. 15 mm is required on either side for subsequent wiring. The terminal
plugs can be unplugged laterally.
1.
2.
2024-10 | V26 | F.01U.168.332
MAP5000 panel com (ICP-MAP5000-COM)
MAP5000 panel small com (ICP-MAP5000-SC)
VdS 2465-S2
SIA DC-09 (TCP/IP and UDP/IP)
Conettix IP
Feed the Ethernet cable through the large snap ferrite sleeve (supplied in the accessory
pack of the MAP5000 panel) with an additional turn.
Position the ferrite core as close as possible to the enclosure knockout inside the
enclosure.
Attach the carrier plate of the ICP-COM-IF2 relay module in the holes provided in the
hinged mounting plate or the mounting rails.
Use the screw provided to secure the carrier plate to the bottom rail.
Installation manual
Modular Alarm Platform 5000
Bosch Security Systems B.V.
