Modular Alarm Platform 5000

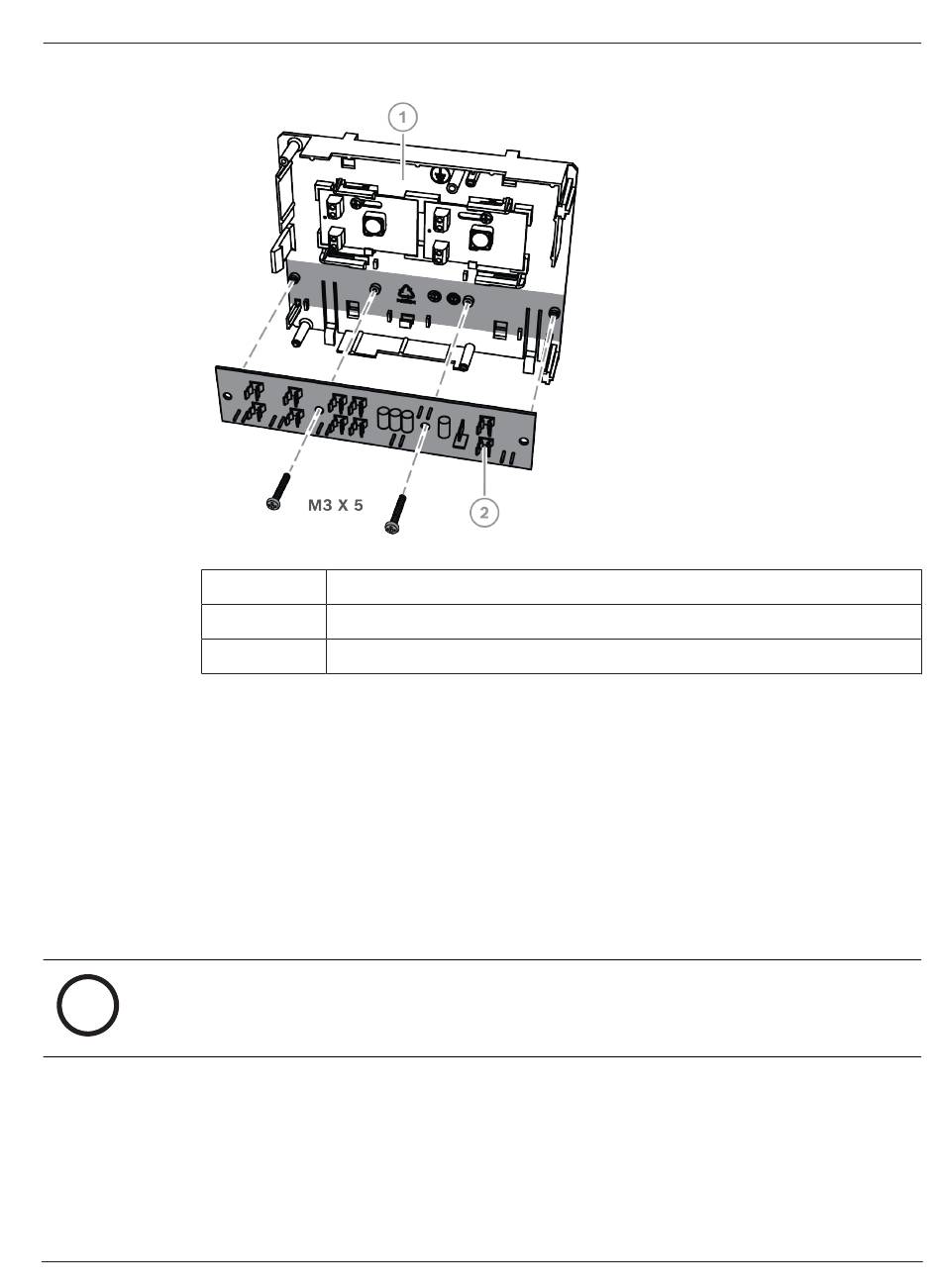

Installing the SIV 28 fuse plate
Callout
1
2
3.12

Installing the AT x000 communicator

The AT x000 communicator mounts onto the ICP-MAP0020 MAP accessory mounting plate
over the power converter (if installed). If the SIV 28 fuse plate is mounted on the accessory
mounting plate, the communicator cannot be mounted on the same mounting plate.
1.
2.
3.
Notice!
i
To ensure proper system grounding, you must insert the grounding screw through the AT
x000 and the accessory mounting plate.
Bosch Security Systems B.V.
Description
ICP-MAP0020 Accessory mounting plate
SIV 28 fuse plate (SIV 28 MAP 28V fuse protected power distributer)
Slide the right edge of the AT x000 under the clips on the right-hand side of the
accessory mounting plate.
Gently push down on the left edge of the AT x000 until it snaps into place under the
single clip on the left-hand side of the accessory mounting plate.
Insert the supplied grounding screw through the AT x000 and the accessory mounting
plate, and fasten it into the top mounting rail.
Installation manual
Installation | en
2024-10 | V26 | F.01U.168.332
