Installing the accessory mounting plate
Refer to Accessory mounting plate overview, page 31 for the locations of the modules that
mount on the accessory mounting plate.

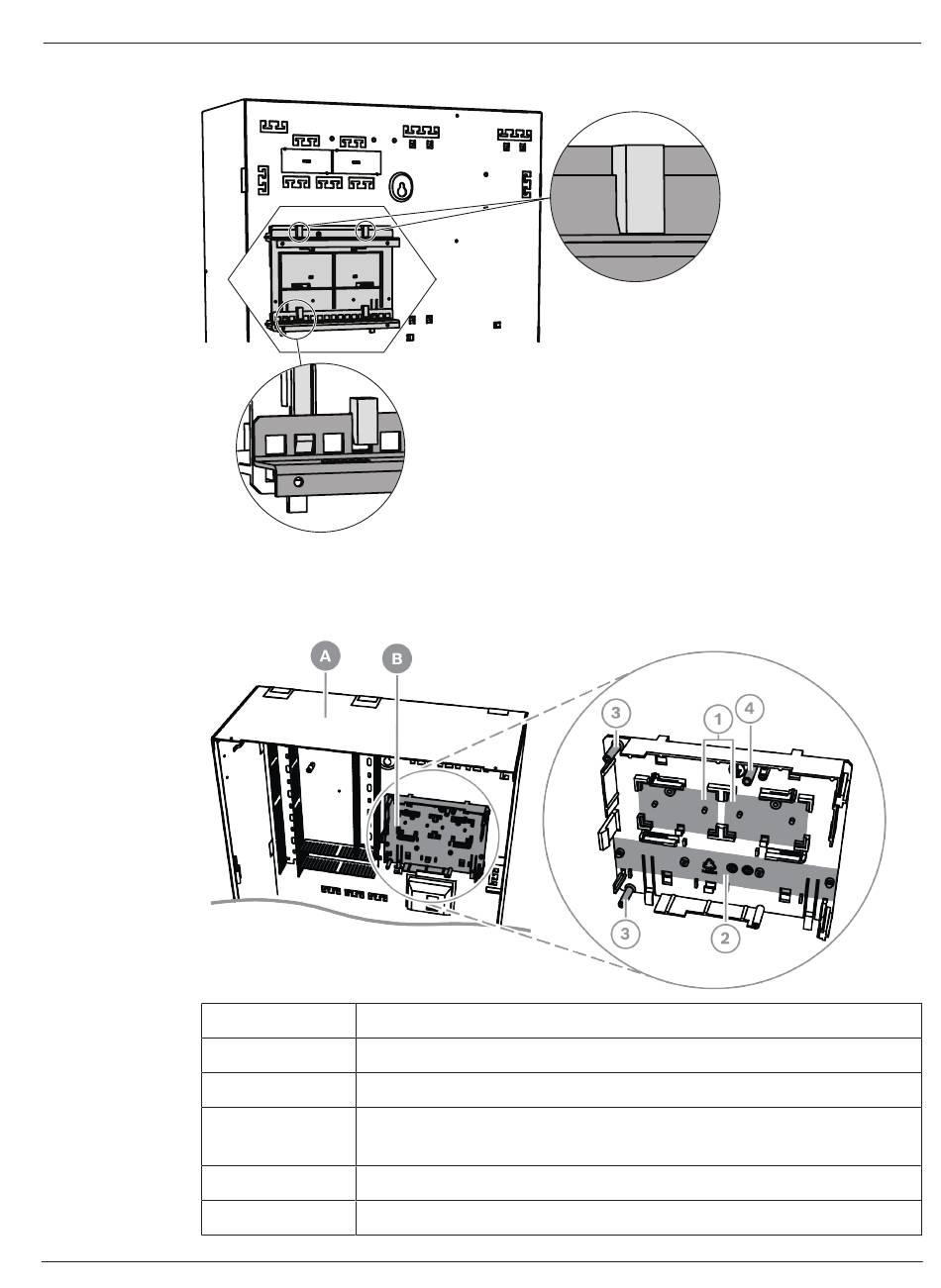

Accessory mounting plate overview
Callout
A
B
1
2
3
Bosch Security Systems B.V.
Description
ICP-MAP0111 MAP panel enclosure
ICP-MAP0020 MAP accessory mounting plate
Locations for ICP-MAP0017 MAP 12V-28V power converters (two
maximum)
Location for fuse plate (SIV) (one maximum)
Screw locations for AT x000 communicator (one maximum)
Installation manual
Installation | en
2024-10 | V26 | F.01U.168.332
31
