Bosch Modular Alarm Platform 5000 Installation Manual page 27

Modular Alarm Platform 5000

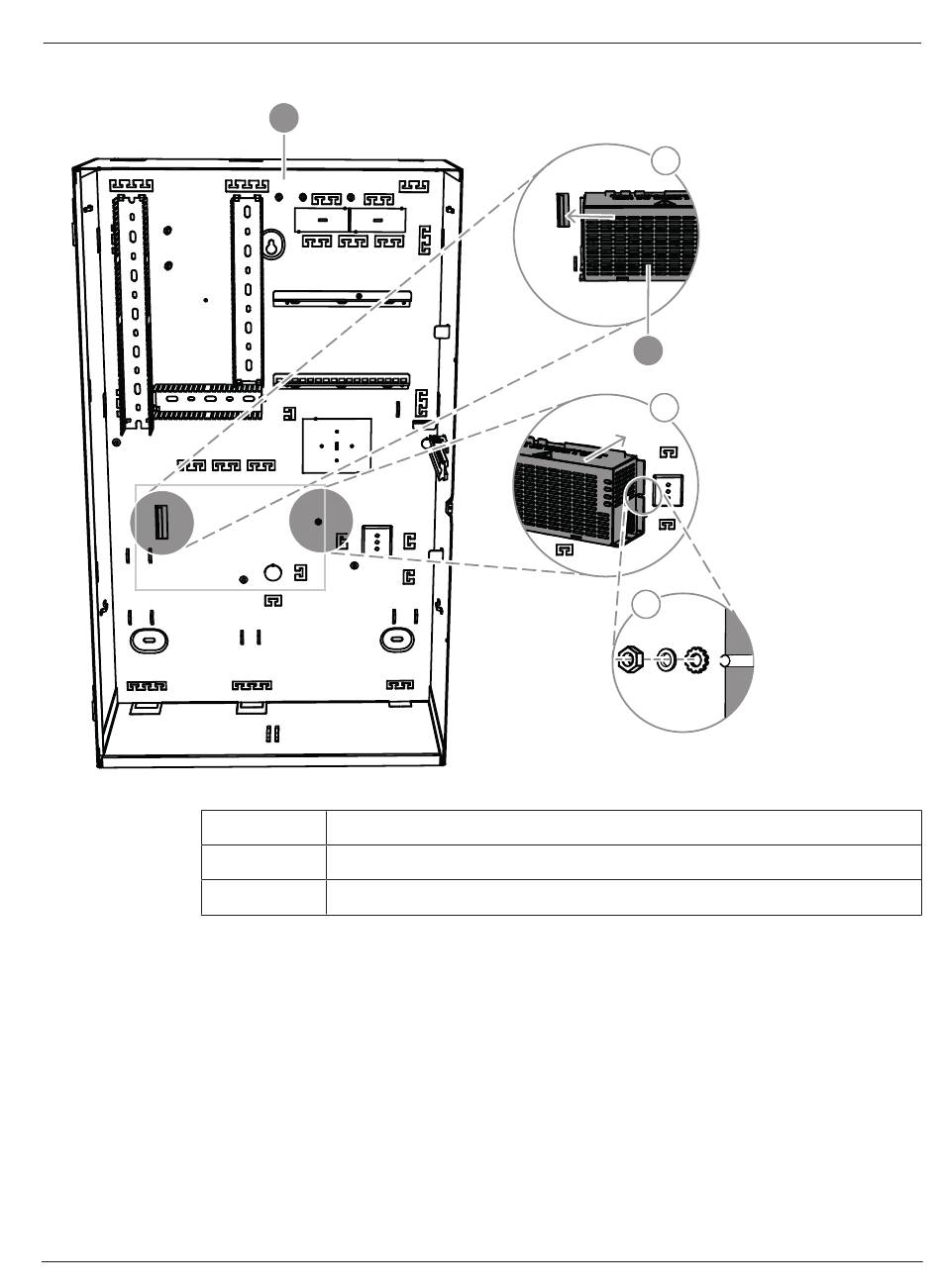

Installing the power supply
Callout
A
B
1.
2.
3.
4
Bosch Security Systems B.V.
A
Description
ICP-MAP0111 MAP panel enclosure
IPP-MAP0005-2 MAP power supply 150W
Slide the left side of the power supply against the flange on the left side of the
enclosure back wall.
Align the cut-out on the right side of the power supply.
Secure the power supply to the enclosure back wall with the supplied hardware in the
following order: external tooth washer, washer, hex nut
Refer to Technical Specifications, page 74 for power specifications.
Installation manual
Installation | en
1
B
2
3
2024-10 | V26 | F.01U.168.332
27
