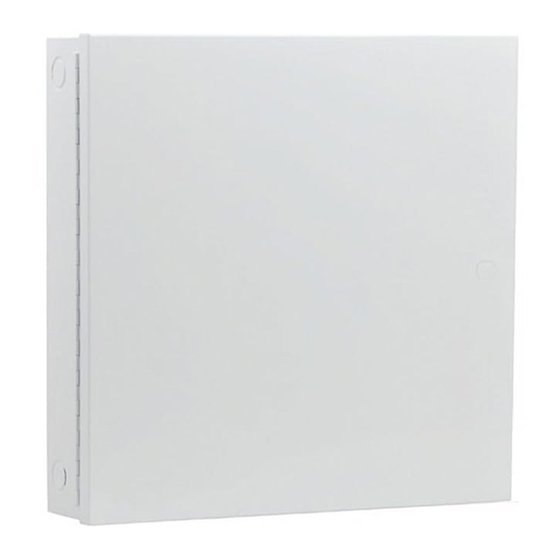

1 | Overview
This enclosures can be used for residential fire and burglary installations and
commercial burglary applications that do not require attack resistance.
2 | Installation
1
12
11
Callout ― Description
1 ― Point chart label
2 ― Module mounting locations (4)
3 ― Tamper switch mounting location
4 ― Mounting hole locations (5)
5 ― Mounting skirt hooks (2)
6 ― Control panel mounting location
3 | Wire an optional wire-in transformer
For systems using an optional wire-in transformer, wire the transformer as shown in
this section.
2
3
4
5
2
7
6
4
8
9
10
Callout ― Description
7 ― Skirt mounting hole
8 ― Battery mounting locations (2)
9 ― Back of the control panel
10 ― Mounting skirt hook openings (2)
11 ― Screw tab
12 ― Lockset
1
4
Callout ― Description
1 ― Low voltage AC
2 ― Ground wire connection
3 ― AC IN
4 ― Wire tie the AC IN wires to the enclosure lance
4 | Specifications
Dimensions
Color
Compatible tamper switches
Compatible locksets (optional)
Copyright
This document is the intellectual property of Bosch Security Systems, Inc. and is
protected by copyright. All rights reserved.
Trademarks
All hardware and software product names used in this document are likely to be
registered trademarks and must be treated accordingly.
Bosch Security Systems, Inc. product manufacturing dates
Use the serial number located on the product label and refer to the Bosch Security
Systems, Inc. website at http://www.boschsecurity.com/datecodes/.
Low 12.1 VDC
Load Shed 10.2 VDC
1
CLASS 2
16.5 VAC 40 VA 60 Hz
2
TRANSFORMER
3
+ AUX POWER
4
-
BATTERY (
)
5
BATTERY ( + )
OUTPUT
6
A (1)
OUTPUT
7
B (2)
OUTPUT
8
C (3)
9
COMMON
10
EARTH GROUND
WARNING!
Multi-Battery
installation requires
Model D122 or D122L
Dual Battery Harness.
Improper installation
can be a fire hazard .
2
USB POWER
B
A
STATUS
L
S
I
E
N
K
T
USB
ETHERNET
3
16 in. x 16 in. x 3.5 in. (41 cm x 41 cm x 9 cm)
B8103-White, D8103-Grey
D110 (P/N: 4998137947) or
ICP-EZTS (P/N: F01U217038)
D101-448478D (Key #1358)
D101F-43157D (Key #203)
