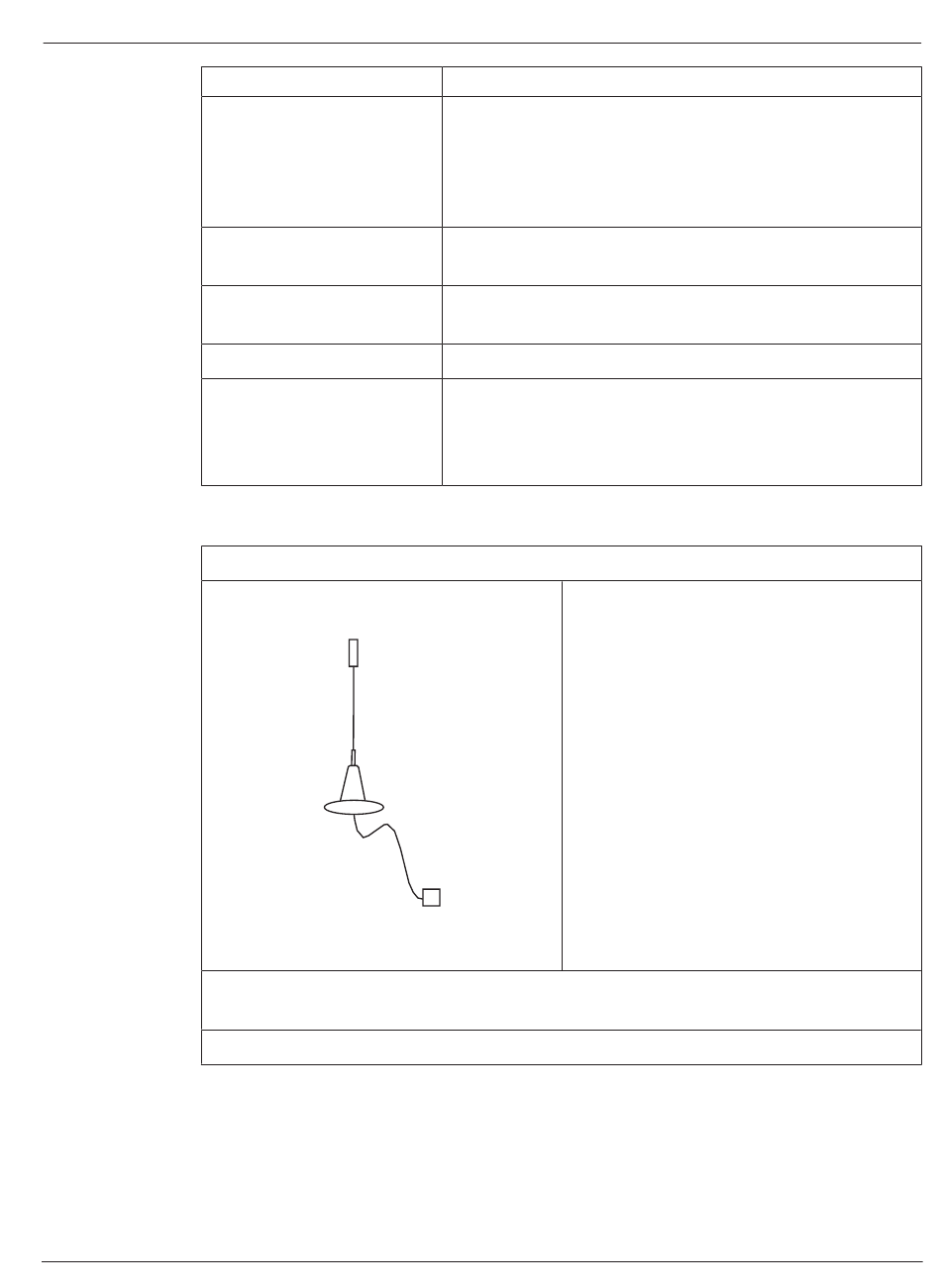

Antennas

Magnetic antenna mast incl. bottom
Magnetic antenna mast incl. bottom with 2.6 m cable. The FME female connector is
preconfigured on the coaxial cable.
Rod antenna
Bosch Security Systems B.V.
Operating status of M terminal
– No SIM card inserted
– No PIN entered
– Network search in progress
– Ongoing user authentication
– Network login in progress
Idle mode: The mobile is logged to the network (monitoring
control channels and user interactions). No call in progress.
One or more GPRS contexts activated.
Packet switched data transfer in progress.
Depending on type of call:
– Voice call: Connected to remote party
– CSD call: Connected to remote party or exchange of
parameters while setting up or disconnecting a call
1
Transmission frequency: 900 / 1800 MHz
Impedance: 50 Ω
Gain: 0 dBi
Max power: 10 W
Radiator length: 100 mm
Foot: 34 mm
