MAP expansion enclosure

4

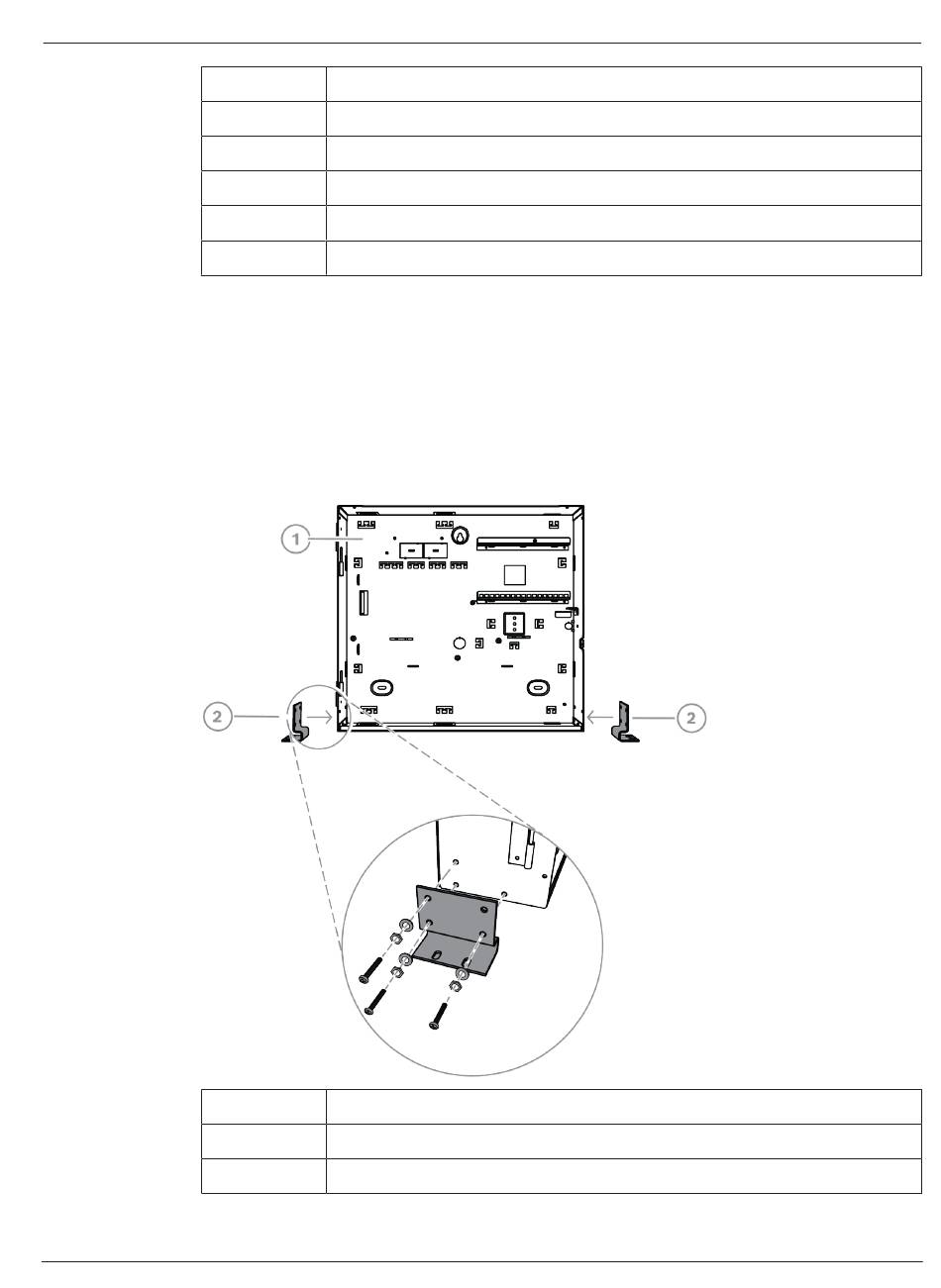

Installing the rack mount brackets to the ICP-MAP0120 MAP expansion enclosure
Callout
1
2
Bosch Security Systems B.V.
ICP-MAP0111 MAP panel enclosure
ICP-MAP0130 Thermistor cable
IPP-MAP0005-2 MAP power supply 150W
ICP-MAP0065 MAP terminal block
ICP-MAP0115 MAP power enclosure
ICP-MAP0050 MAP panel/power enclosure tamper switch
Installing the thermistor cable, page 28
To install the ICP-MAP0120 expansion enclosure in a 19-inch rack, connect the ICP-
MAP0035 MAP enclosure rack mounting kit to the ICP-MAP0120 MAP expansion
enclosure.
Description
ICP-MAP0120 MAP expansion enclosure
ICP-MAP0035 MAP enclosure rack mounting kit
Installation manual
