Warning!
In order to avoid data loss on the SIM card, the wireless modem must be de-energized
!
before inserting or removing the SIM card.

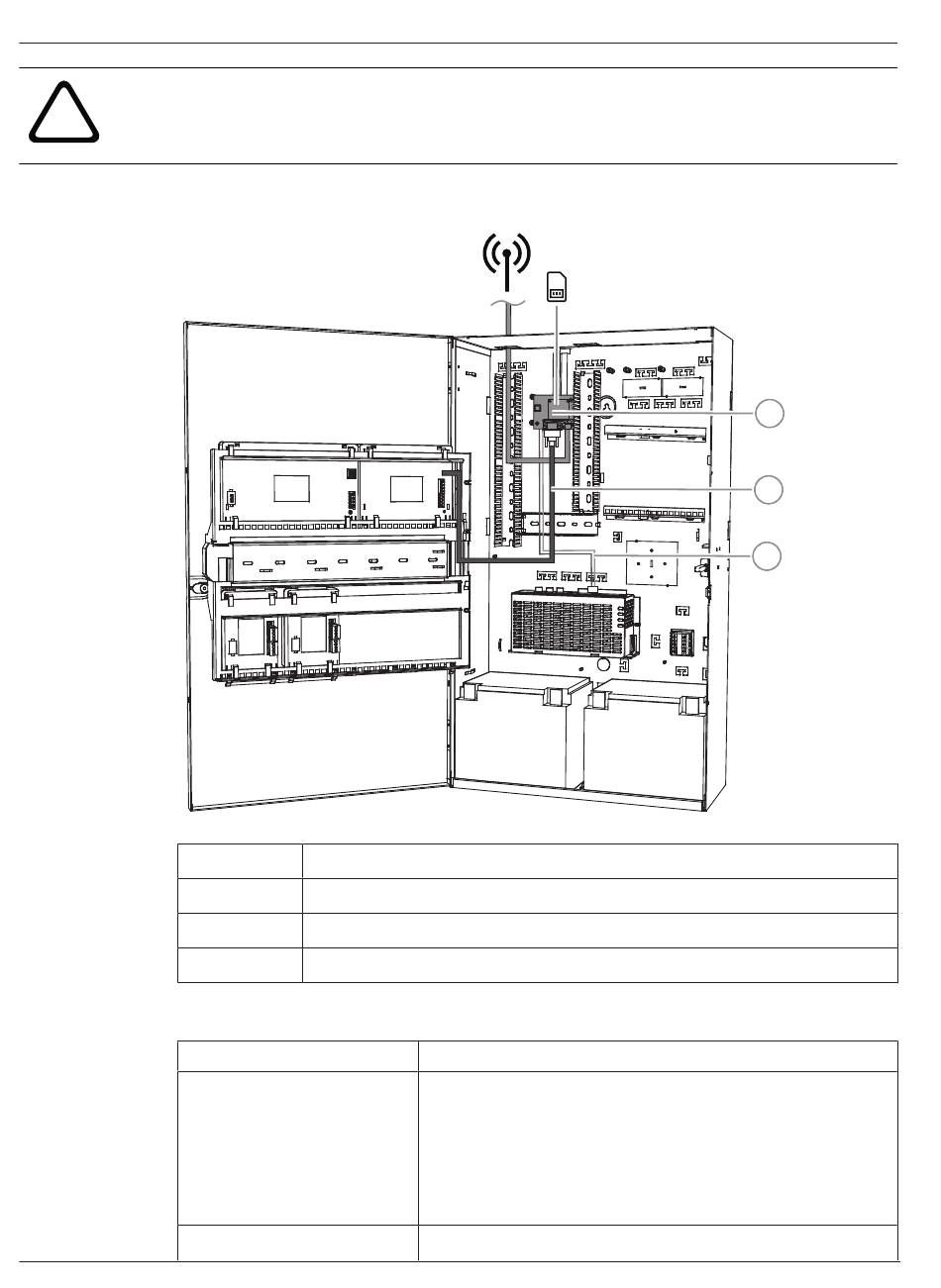

Installing and connecting the wireless modem
Callout
1
2
3
LED operating status
LED mode
Permanently off
600 ms on, 600 ms off
2024-10 | V26 | F.01U.168.332
Description
ITS-MAP0008 wireless modem
ICP-MAP0152 Serial cable
Power cable from wireless modem to the power supply
Operating status of M terminal
M terminal is in one of the following modes:
– Power down
– Alarm
– Non-cycling sleep
– Cyclic sleep with no temporary wake-up event1 in
progress
Limited network service due to one of the following:
Installation manual
Modular Alarm Platform 5000
(-)
(+)
